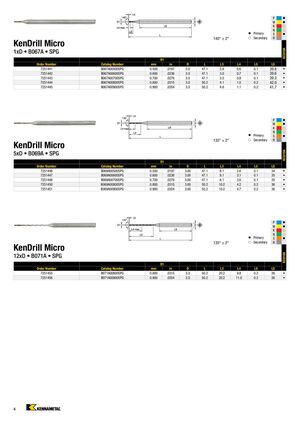

P v M v K j N j v Primary S v 140° ± 2° j Secondary H KenDrill Micro KCU10A 1xD • B067A • SPG D1 Order Number Catalog Number mm in D L L3 L4 L5 LS 7251441 B067A00500SPG 0.500 .0197 3.0 47.1 2.6 0.6 0.1 39.8 • 7251442 B067A00600SPG 0.600 .0236 3.0 47.1 3.0 0.7 0.1 39.6 • 7251443 B067A00700SPG 0.700 .0276 3.0 47.1 3.5 0.8 0.1 39.3 • 7251444 B067A00800SPG 0.800 .0315 3.0 50.2 4.1 1.0 0.2 42.0 • 7251445 B067A00900SPG 0.900 .0354 3.0 50.2 4.6 1.1 0.2 41.7 • P v M v K j N j v Primary S v 135° ± 2° j Secondary H KenDrill Micro KCU10A 5xD • B069A • SPG D1 Order Number Catalog Number mm in D L L3 L4 L5 LS 7251446 B069A00500SPG 0.500 .0197 3.00 47.1 8.1 2.6 0.1 34 • 7251447 B069A00600SPG 0.600 .0236 3.00 47.1 8.1 3.1 0.1 35 • 7251448 B069A00700SPG 0.700 .0276 3.00 47.1 8.1 3.6 0.1 35 • 7251450 B069A00800SPG 0.800 .0315 3.00 50.2 10.2 4.2 0.2 36 • 7251451 B069A00900SPG 0.900 .0354 3.00 50.2 10.2 4.7 0.2 36 • P v M v K j N j v Primary S v 135° ± 2° j Secondary H KenDrill Micro KCU10A 12xD • B071A • SPG D1 Order Number Catalog Number mm in D L L3 L4 L5 LS 7251455 B071A00800SPG 0.800 .0315 3.0 50.2 20.2 9.8 0.2 26 • 7251456 B071A00900SPG 0.900 .0354 3.0 50.2 20.2 11.0 0.2 26 • 4
