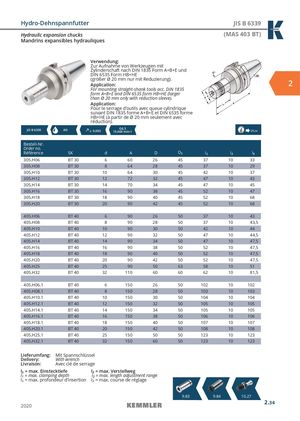

Hydro-Dehnspannfutter JIS B 6339
Hydraulic expansion chucks (MAS 403 BT)
Mandrins expansibles hydrauliques
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft nach DIN 1835 Form A+B+E und DIN 6535 Form HB+HE
(größer Ø 20 mm nur mit Reduzierung). 2
Application: For mounting straight-shank tools acc. DIN 1835 form A+B+E and DIN 6535 form HB+HE (larger than Ø 20 mm only with reduction sleeve).
Application: Pour le serrage d’outils avec queue cylindrique suivant DIN 1835 forme A+B+E et DIN 6535 forme HB+HE (à partir de Ø 20 mm seulement avec réduction).
| JIS B 6339 | AD ≤ | 0,003 15 | G6,3 .000 min-1 | | 14.04 | |||
| Bestell-Nr. Order no. Référence | SK | d | A | D | D1 | l1 | l2 | l3 |
| 305.H06 | BT 30 | 6 | 60 | 26 | 45 | 37 | 10 | 33 |
| 305.H08 | BT 30 | 8 | 64 | 28 | 45 | 37 | 10 | 29 |
| 305.H10 | BT 30 | 10 | 64 | 30 | 45 | 42 | 10 | 37 |
| 305.H12 | BT 30 | 12 | 72 | 32 | 45 | 47 | 10 | 43 |
| 305.H14 | BT 30 | 14 | 70 | 34 | 45 | 47 | 10 | 45 |
| 305.H16 | BT 30 | 16 | 90 | 38 | 45 | 52 | 10 | 47 |
| 305.H18 | BT 30 | 18 | 90 | 40 | 45 | 52 | 10 | 68 |
| 305.H20 | BT 30 | 20 | 90 | 42 | 45 | 52 | 10 | 68 |
| 405.H06 | BT 40 | 6 | 90 | 26 | 50 | 37 | 10 | 43 |
| 405.H08 | BT 40 | 8 | 90 | 28 | 50 | 37 | 10 | 43,5 |
| 405.H10 | BT 40 | 10 | 90 | 30 | 50 | 42 | 10 | 44 |
| 405.H12 | BT 40 | 12 | 90 | 32 | 50 | 47 | 10 | 44,5 |
| 405.H14 | BT 40 | 14 | 90 | 34 | 50 | 47 | 10 | 47,5 |
| 405.H16 | BT 40 | 16 | 90 | 38 | 50 | 52 | 10 | 47,5 |
| 405.H18 | BT 40 | 18 | 90 | 40 | 50 | 52 | 10 | 47,5 |
| 405.H20 | BT 40 | 20 | 90 | 42 | 50 | 52 | 10 | 47,5 |
| 405.H25 | BT 40 | 25 | 90 | 50 | 63 | 58 | 10 | 51 |
| 405.H32 | BT 40 | 32 | 110 | 60 | 60 | 62 | 10 | 81,5 |
| 405.H06.1 | BT 40 | 6 | 150 | 26 | 50 | 102 | 10 | 102 |
| 405.H08.1 | BT 40 | 8 | 150 | 28 | 50 | 103 | 10 | 103 |
| 405.H10.1 | BT 40 | 10 | 150 | 30 | 50 | 104 | 10 | 104 |
| 405.H12.1 | BT 40 | 12 | 150 | 32 | 50 | 105 | 10 | 105 |
| 405.H14.1 | BT 40 | 14 | 150 | 34 | 50 | 105 | 10 | 105 |
| 405.H16.1 | BT 40 | 16 | 150 | 38 | 50 | 106 | 10 | 106 |
| 405.H18.1 | BT 40 | 18 | 150 | 40 | 50 | 107 | 10 | 107 |
| 405.H20.1 | BT 40 | 20 | 150 | 42 | 50 | 108 | 10 | 108 |
| 405.H25.1 | BT 40 | 25 | 150 | 50 | 50 | 123 | 10 | 123 |
| 405.H32.1 | BT 40 | 32 | 150 | 60 | 50 | 123 | 10 | 123 |
Lieferumfang: Mit Spannschlüssel
Delivery: With wrench
Livraison: Avec clé de serrage l = max. Einstecktiefe l = max. Verstellweg l1 = max. clamping depth l2 = max. length adjustment range l1 = max. profondeur d’insertion l2 = max. course de réglage
