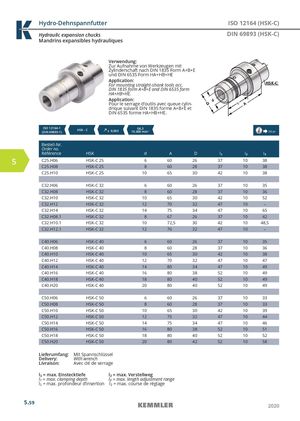

Общий каталог Kemmler 2020 - страница 202
Навигация
Общий каталог Kemmler 2017 - 2018
Каталог Kemmler зажимные болты
Каталог Kemmler гидроразжимные патроны
Каталог Kemmler сверлильные патроны для станков с ЧПУ
Каталог Kemmler усадочные патроны и усадочная техника
Каталог Kemmler цанговые патроны KPS
Hydro-Dehnspannfutter ISO 12164 (HSK-C)
Hydraulic expansion chucks DIN 69893 (HSK-C)
Mandrins expansibles hydrauliques
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft nach DIN 1835 Form A+B+E und DIN 6535 Form HA+HB+HE
Application: For mounting straight-shank tools acc. DIN 1835 form A+B+E and DIN 6535 form HA+HB+HE.
Application: Pour le serrage d’outils avec queue cylindrique suivant DIN 1835 forme A+B+E et DIN 6535 forme HA+HB+HE.
ISO 12164-1 G6,3
HSK - C ≤ 0,003 15.000 min
(DIN 69893-1) -1 14.04
| Bestell-Nr. Order no. Référence | HSK | d | A | D | l1 | l2 | l3 |
| C25.H06 | HSK-C 25 | 6 | 60 | 26 | 37 | 10 | 38 |
| C25.H08 | HSK-C 25 | 8 | 60 | 28 | 37 | 10 | 38 |
| C25.H10 | HSK-C 25 | 10 | 65 | 30 | 42 | 10 | 38 |
| C32.H06 | HSK-C 32 | 6 | 60 | 26 | 37 | 10 | 35 |
| C32.H08 | HSK-C 32 | 8 | 60 | 28 | 37 | 10 | 36 |
| C32.H10 | HSK-C 32 | 10 | 65 | 30 | 42 | 10 | 52 |
| C32.H12 | HSK-C 32 | 12 | 70 | 32 | 47 | 10 | – |
| C32.H14 | HSK-C 32 | 14 | 75 | 34 | 47 | 10 | 65 |
| C32.H08.1 | HSK-C 32 | 8 | 67 | 26 | 37 | 10 | 42 |
| C32.H10.1 | HSK-C 32 | 10 | 72,5 | 30 | 42 | 10 | 48,5 |
| C32.H12.1 | HSK-C 32 | 12 | 76 | 32 | 47 | 10 | – |
| C40.H06 | HSK-C 40 | 6 | 60 | 26 | 37 | 10 | 35 |
| C40.H08 | HSK-C 40 | 8 | 60 | 28 | 37 | 10 | 36 |
| C40.H10 | HSK-C 40 | 10 | 65 | 30 | 42 | 10 | 38 |
| C40.H12 | HSK-C 40 | 12 | 70 | 32 | 47 | 10 | 47 |
| C40.H14 | HSK-C 40 | 14 | 80 | 34 | 47 | 10 | 49 |
| C40.H16 | HSK-C 40 | 16 | 80 | 38 | 52 | 10 | 49 |
| C40.H18 | HSK-C 40 | 18 | 80 | 40 | 52 | 10 | 49 |
| C40.H20 | HSK-C 40 | 20 | 80 | 40 | 52 | 10 | 49 |
| C50.H06 | HSK-C 50 | 6 | 60 | 26 | 37 | 10 | 33 |
| C50.H08 | HSK-C 50 | 8 | 60 | 28 | 37 | 10 | 33 |
| C50.H10 | HSK-C 50 | 10 | 65 | 30 | 42 | 10 | 39 |
| C50.H12 | HSK-C 50 | 12 | 75 | 32 | 47 | 10 | 44 |
| C50.H14 | HSK-C 50 | 14 | 75 | 34 | 47 | 10 | 46 |
| C50.H16 | HSK-C 50 | 16 | 80 | 38 | 52 | 10 | 51 |
| C50.H18 | HSK-C 50 | 18 | 80 | 40 | 52 | 10 | 52 |
| C50.H20 | HSK-C 50 | 20 | 80 | 42 | 52 | 10 | 58 |
Lieferumfang: Mit Spannschlüssel
Delivery: With wrench
Livraison: Avec clé de serrage l = max. Einstecktiefe l = max. Verstellweg l1 = max. clamping depth l2 = max. length adjustment range 1 2 l = max. profondeur d’insertion l = max. course de réglage
