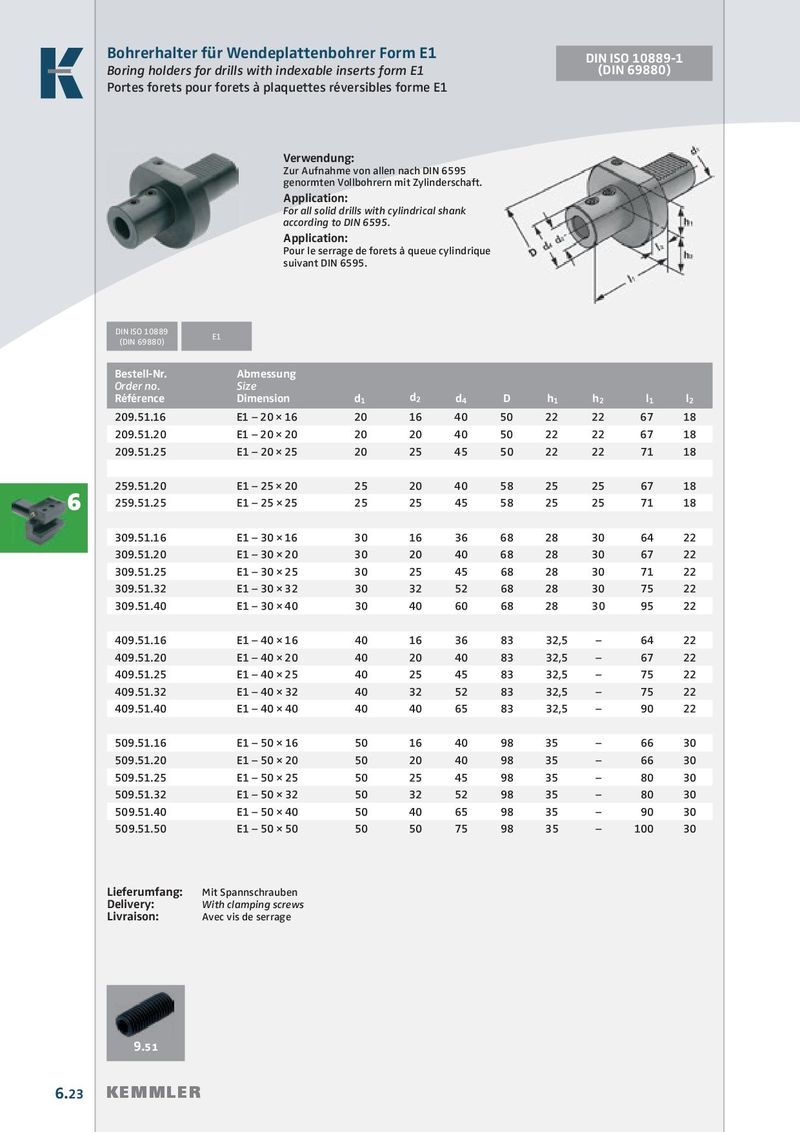

Bohrerhalter für Wendeplattenbohrer Form E1
Boring holders for drills with indexable inserts form E1 (DIN 69880)
Portes forets pour forets à plaquettes réversibles forme E1
Verwendung: Zur Aufnahme von allen nach DIN 6595 genormten Vollbohrern mit Zylinderschaft.
Application: For all solid drills with cylindrical shank according to DIN 6595.
Application: Pour le serrage de forets à queue cylindrique suivant DIN 6595.
| DIN ISO 10889 (DIN 69880) | E1 | ||||||||
| Bestell-Nr. Order no. | Abmessung Size | ||||||||
| Référence | Dimension | d1 | d2 | d4 | D | h1 | h2 | l1 | l2 |
| 209.51.16 | E1 – 20 × 16 | 20 | 16 | 40 | 50 | 22 | 22 | 67 | 18 |
| 209.51.20 | E1 – 20 × 20 | 20 | 20 | 40 | 50 | 22 | 22 | 67 | 18 |
| 209.51.25 | E1 – 20 × 25 | 20 | 25 | 45 | 50 | 22 | 22 | 71 | 18 |
| 259.51.20 | E1 – 25 × 20 | 25 | 20 | 40 | 58 | 25 | 25 | 67 | 18 |
| 259.51.25 | E1 – 25 × 25 | 25 | 25 | 45 | 58 | 25 | 25 | 71 | 18 |
| 309.51.16 | E1 – 30 × 16 | 30 | 16 | 36 | 68 | 28 | 30 | 64 | 22 |
| 309.51.20 | E1 – 30 × 20 | 30 | 20 | 40 | 68 | 28 | 30 | 67 | 22 |
| 309.51.25 | E1 – 30 × 25 | 30 | 25 | 45 | 68 | 28 | 30 | 71 | 22 |
| 309.51.32 | E1 – 30 × 32 | 30 | 32 | 52 | 68 | 28 | 30 | 75 | 22 |
| 309.51.40 | E1 – 30 × 40 | 30 | 40 | 60 | 68 | 28 | 30 | 95 | 22 |
| 409.51.16 | E1 – 40 × 16 | 40 | 16 | 36 | 83 | 32,5 | – | 64 | 22 |
| 409.51.20 | E1 – 40 × 20 | 40 | 20 | 40 | 83 | 32,5 | – | 67 | 22 |
| 409.51.25 | E1 – 40 × 25 | 40 | 25 | 45 | 83 | 32,5 | – | 75 | 22 |
| 409.51.32 | E1 – 40 × 32 | 40 | 32 | 52 | 83 | 32,5 | – | 75 | 22 |
| 409.51.40 | E1 – 40 × 40 | 40 | 40 | 65 | 83 | 32,5 | – | 90 | 22 |
| 509.51.16 | E1 – 50 × 16 | 50 | 16 | 40 | 98 | 35 | – | 66 | 30 |
| 509.51.20 | E1 – 50 × 20 | 50 | 20 | 40 | 98 | 35 | – | 66 | 30 |
| 509.51.25 | E1 – 50 × 25 | 50 | 25 | 45 | 98 | 35 | – | 80 | 30 |
| 509.51.32 | E1 – 50 × 32 | 50 | 32 | 52 | 98 | 35 | – | 80 | 30 |
| 509.51.40 | E1 – 50 × 40 | 50 | 40 | 65 | 98 | 35 | – | 90 | 30 |
| 509.51.50 | E1 – 50 × 50 | 50 | 50 | 75 | 98 | 35 | – | 100 | 30 |
Lieferumfang: Mit Spannschrauben
Delivery: With clamping screws
Livraison: Avec vis de serrage
