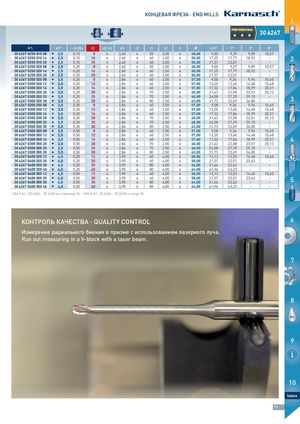

| КОНЦ | ЕВАЯ | ФРЕЗ | А · END | MILLS | 1 | ||||||||||
| d2 4 | d2 6 | PROFE | SSIONAL | 306267 | |||||||||||
| Art. | d1 | r –0,004 | l3 | d2 h5 | d3 | r2 | l1 | l2 | Z | € | 0,5° | 1° | 2° | 3° | |
| 306267025001008 30 67 0 0 | I 2,5 | 0,10 | 8 | 4 | 2,40 | 4 | 50 | 2,00 | 4 | 48,00 | 9,00 | 9,29 | 9,89 | 10,57 | |
| 306267025001016 30 67 0 1 | I 2,5 | 0,10 | 16 | 4 | 2,40 | 4 | 60 | 2,00 | 4 | 50,00 | 17,25 | 17,77 | 18,92 | – | 2 |
| 306267025001020 30 67 0 2 | I 2,5 | 0,10 | 20 | 4 | 2,40 | 4 | 60 | 2,00 | 4 | 50,00 | 21,37 | 22,01 | – | – | |
| 306267025002008 30 67 0 0 | I 2,5 | 0,20 | 8 | 4 | 2,40 | 4 | 50 | 2,00 | 4 | 48,00 | 9,00 | 9,29 | 9,89 | 10,57 | |
| 306267025002016 30 67 0 1 | I 2,5 | 0,20 | 16 | 4 | 2,40 | 4 | 60 | 2,00 | 4 | 50,00 | 17,25 | 17,77 | 18,92 | – | |
| 306267025002020 30 67 0 2 | I 2,5 | 0,20 | 20 | 4 | 2,40 | 4 | 60 | 2,00 | 4 | 50,00 | 21,37 | 22,01 | – | – | |
| 306267030002008 30 67 0 0 | I 3,0 | 0,20 | 8 | 6 | 2,86 | 4 | 60 | 2,50 | 4 | 57,00 | 9,08 | 9,36 | 9,96 | 10,65 | |
| 306267030002012 30 67 0 1 | I 3,0 | 0,20 | 12 | 6 | 2,86 | 4 | 60 | 2,50 | 4 | 57,00 | 13,20 | 13,60 | 14,48 | 15,48 | |
| 306267030002016 30 67 0 1 | I 3,0 | 0,20 | 16 | 6 | 2,86 | 4 | 60 | 2,50 | 4 | 57,00 | 17,32 | 17,84 | 18,99 | 20,31 | |
| 306267030002020 30 67 0 2 | I 3,0 | 0,20 | 20 | 6 | 2,86 | 4 | 70 | 2,50 | 4 | 60,00 | 21,43 | 22,08 | 23,51 | 25,13 | |
| 306267030002025 30 67 0 2 | I 3,0 | 0,20 | 25 | 6 | 2,86 | 4 | 70 | 2,50 | 4 | 60,00 | 26,58 | 27,39 | 29,15 | – | |
| 306267030002030 30 67 0 3 | I 3,0 | 0,20 | 30 | 6 | 2,86 | 4 | 80 | 2,50 | 4 | 63,00 | 31,73 | 32,69 | 34,80 | – | 3 |
| 306267030003008 30 67 0 0 | I 3,0 | 0,30 | 8 | 6 | 2,86 | 4 | 60 | 2,50 | 4 | 57,00 | 9,08 | 9,36 | 9,96 | 10,65 | |
| 306267030003012 30 67 0 1 | I 3,0 | 0,30 | 12 | 6 | 2,86 | 4 | 60 | 2,50 | 4 | 57,00 | 13,20 | 13,60 | 14,48 | 15,48 | |
| 306267030003016 30 67 0 1 | I 3,0 | 0,30 | 16 | 6 | 2,86 | 4 | 60 | 2,50 | 4 | 57,00 | 17,32 | 17,84 | 18,99 | 20,31 | |
| 306267030003020 30 67 0 2 | I 3,0 | 0,30 | 20 | 6 | 2,86 | 4 | 70 | 2,50 | 4 | 60,00 | 21,43 | 22,08 | 23,51 | 25,13 | |
| 306267030003025 30 67 0 2 | I 3,0 | 0,30 | 25 | 6 | 2,86 | 4 | 70 | 2,50 | 4 | 60,00 | 26,58 | 27,39 | 29,15 | – | |
| 306267030003030 30 67 0 3 | I 3,0 | 0,30 | 30 | 6 | 2,86 | 4 | 80 | 2,50 | 4 | 63,00 | 31,73 | 32,69 | 34,80 | – | |
| 306267030005008 30 67 0 0 | I 3,0 | 0,50 | 8 | 6 | 2,86 | 4 | 60 | 2,50 | 4 | 57,00 | 9,08 | 9,36 | 9,96 | 10,65 | |
| 306267030005012 30 67 0 1 | I 3,0 | 0,50 | 12 | 6 | 2,86 | 4 | 60 | 2,50 | 4 | 57,00 | 13,20 | 13,60 | 14,48 | 15,48 | |
| 306267030005016 30 67 0 1 | I 3,0 | 0,50 | 16 | 6 | 2,86 | 4 | 60 | 2,50 | 4 | 57,00 | 17,32 | 17,84 | 18,99 | 20,31 | 4 |
| 306267030005020 30 67 0 2 | I 3,0 | 0,50 | 20 | 6 | 2,86 | 4 | 70 | 2,50 | 4 | 60,00 | 21,43 | 22,08 | 23,51 | 25,13 | |
| 306267030005025 30 67 0 2 | I 3,0 | 0,50 | 25 | 6 | 2,86 | 4 | 70 | 2,50 | 4 | 60,00 | 26,58 | 27,39 | 29,15 | – | |
| 306267030005030 30 67 0 3 | I 3,0 | 0,50 | 30 | 6 | 2,86 | 4 | 80 | 2,50 | 4 | 63,00 | 31,73 | 32,69 | 34,80 | – | |
| 306267040002012 30 67 0 1 | I 4,0 | 0,20 | 12 | 6 | 3,90 | 4 | 60 | 4,00 | 4 | 58,00 | 13,13 | 13,53 | 14,40 | 15,40 | |
| 306267040002020 30 67 0 2 | I 4,0 | 0,20 | 20 | 6 | 3,90 | 4 | 60 | 4,00 | 4 | 58,00 | 21,37 | 22,01 | 23,43 | – | |
| 306267040002030 30 67 0 3 | I 4,0 | 0,20 | 30 | 6 | 3,90 | 4 | 80 | 4,00 | 4 | 64,00 | 31,66 | 32,62 | – | – | |
| 306267040002040 30 67 0 4 | I 4,0 | 0,20 | 40 | 6 | 3,90 | 4 | 80 | 4,00 | 4 | 64,00 | 41,96 | 43,23 | – | – | |
| 306267040005012 30 67 0 1 | I 4,0 | 0,50 | 12 | 6 | 3,90 | 4 | 60 | 4,00 | 4 | 58,00 | 13,13 | 13,53 | 14,40 | 15,40 | |
| 306267040005020 30 67 0 2 | I 4,0 | 0,50 | 20 | 6 | 3,90 | 4 | 60 | 4,00 | 4 | 58,00 | 21,37 | 22,01 | 23,43 | – | 5 |
| 306267040005030 30 67 0 3 | I 4,0 | 0,50 | 30 | 6 | 3,90 | 4 | 80 | 4,00 | 4 | 64,00 | 31,66 | 32,62 | – | – | |
| 306267040005040 30 67 0 4 | I 40 | 050 | 40 | 6 | 390 | 4 | 80 | 400 | 4 | 6400 | 4196 | 4323 | |||
| , | , | , | , | , | , | , | – | – |
>4,0 Art. 30 6436 - 30 6438 на странице 96 ∙ >4,0 Art. 30 6436 - 30 6438 on page 96
КОНТРОЛЬ КАЧЕСТВА · QUALITY CONTROL
Измерение радиального биения в призме с использованием лазерного луча. Run out measuring in a V-block with a laser beam.
