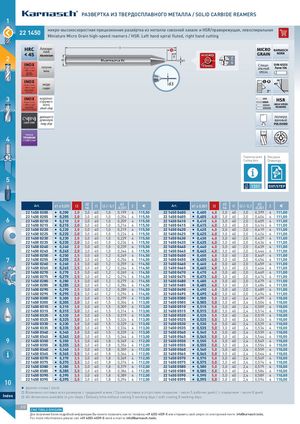

22 1450221450 микро-высокоскоростная прецизионная разаёртка из металnа сквозной закалк и НSR/праворежущая, левоспиральная Miniature Micro Grain high-speed reamers / HSR. Left hand spiral fluted, right hand cutting
| HRC | Алюми- | l1 | MICRO | |
| ний | KARNASCH | |||
| < 45 | GRAIN | NORM |
2 Aluminium l2 Z
d2 d1 4
| INOX | Специ- | DIN 6535 | |
| Нерж сталь | латуни | альный | Form HA |
| < 900 Н/мм2 | brass | SPECIAL | |
| ferritic | |||
| ФЕРРИТ |
| INOX | d3 | L R- | |
| Нерж сталь | меди | ||
| > 900 Н/мм2 | copper | ||
| martensitic | 7° | ||
| куница |
| 3 INOX | коротко- | HSR |
| Нерж сталь | стружеч- | |
| < 900 Н/мм2 | ного | HIGH SPEED |
| austenitic | short chip | REAMERS |
| аустенитный | ||
| СЧ(ВЧ) | дающего | полиро |
| длинную | ванный | |
| cast iron | long chip | POLISHED |
4 титана TITANIUM < 1100 Н/ мм2
Параметры резки Рисунки Cutting data Drawings
5
1331 DXF/STEP
| Art. | d1 ± 0,001 | l3 | d2 h6 | l1 | l2 /- 0,1 | d3 -0,001 | Z | € | Art. | d1 ± 0,001 | l3 | d2 h6 | l1 | l2 /- 0, | 1 d3 -0,001 | Z | € |
| 2214500200 0 | I 0,200 | 2,0 | 3,0 | 40 | 1,0 | 0,199 | 4 | 115,50 | 2214500400 0 | I 0,400 | 4,0 | 3,0 | 40 | 2,0 | 0,399 | 4 | 111,00 |
| 2214500205 0 | I 0,205 | 2,0 | 3,0 | 40 | 1,0 | 0,204 | 4 | 115,50 | 2214500405 0 | I 0,405 | 4,0 | 3,0 | 40 | 2,0 | 0,404 | 4 | 111,00 |
| 2214500210 0 | I 0,210 | 2,0 | 3,0 | 40 | 1,0 | 0,209 | 4 | 115,50 | 2214500410 0 | I 0,410 | 4,0 | 3,0 | 40 | 2,0 | 0,409 | 4 | 111,00 |
| 2214500215 0 | I 0,215 | 2,0 | 3,0 | 40 | 1,0 | 0,214 | 4 | 115,50 | 2214500415 0 | I 0,415 | 4,0 | 3,0 | 40 | 2,0 | 0,414 | 4 | 111,00 |
| 2214500220 0 | I 0,220 | 2,0 | 3,0 | 40 | 1,0 | 0,219 | 4 | 115,50 | 2214500420 0 | I 0,420 | 4,0 | 3,0 | 40 | 2,0 | 0,419 | 4 | 111,00 |
| 2214500225 0 | I 0,225 | 2,0 | 3,0 | 40 | 1,0 | 0,224 | 4 | 115,50 | 2214500425 0 | I 0,425 | 4,0 | 3,0 | 40 | 2,0 | 0,424 | 4 | 111,00 |
| 2214500230 0 | I 0,230 | 2,0 | 3,0 | 40 | 1,0 | 0,229 | 4 | 115,50 | 2214500430 0 | I 0,430 | 4,0 | 3,0 | 40 | 2,0 | 0,429 | 4 | 111,00 |
| 2214500235 0 | I 0,235 | 2,0 | 3,0 | 40 | 1,0 | 0,234 | 4 | 115,50 | 2214500435 0 | I 0,435 | 4,0 | 3,0 | 40 | 2,0 | 0,434 | 4 | 111,00 |
| 2214500240 0 | I 0,240 | 2,0 | 3,0 | 40 | 1,0 | 0,239 | 4 | 115,50 | 2214500440 0 | I 0,440 | 4,0 | 3,0 | 40 | 2,0 | 0,439 | 4 | 111,00 |
| 2214500245 0 | I 0,245 | 2,0 | 3,0 | 40 | 1,0 | 0,244 | 4 | 115,50 | 2214500445 0 | I 0,445 | 4,0 | 3,0 | 40 | 2,0 | 0,444 | 4 | 111,00 |
| 2214500250 0 | I 0,250 | 2,5 | 3,0 | 40 | 1,2 | 0,249 | 4 | 114,50 | 2214500450 0 | I 0,450 | 4,0 | 3,0 | 40 | 2,0 | 0,449 | 4 | 111,00 |
| 2214500255 0 | I 0,255 | 2,5 | 3,0 | 40 | 1,2 | 0,254 | 4 | 114,50 | 2214500455 0 | I 0,455 | 4,0 | 3,0 | 40 | 2,0 | 0,454 | 4 | 111,00 |
| 2214500260 0 | I 0,260 | 2,5 | 3,0 | 40 | 1,2 | 0,259 | 4 | 114,50 | 2214500460 0 | I 0,460 | 4,0 | 3,0 | 40 | 2,0 | 0,459 | 4 | 111,00 |
| 2214500265 0 | I 0,265 | 2,5 | 3,0 | 40 | 1,2 | 0,264 | 4 | 114,50 | 2214500465 0 | I 0,465 | 4,0 | 3,0 | 40 | 2,0 | 0,464 | 4 | 111,00 |
| 2214500270 0 | I 0,270 | 2,5 | 3,0 | 40 | 1,2 | 0,269 | 4 | 114,50 | 2214500470 0 | I 0,470 | 4,0 | 3,0 | 40 | 2,0 | 0,469 | 4 | 111,00 |
| 2214500275 0 | I 0,275 | 2,5 | 3,0 | 40 | 1,2 | 0,274 | 4 | 114,50 | 2214500475 0 | I 0,475 | 4,0 | 3,0 | 40 | 2,0 | 0,474 | 4 | 111,00 |
| 2214500280 0 | I 0,280 | 2,5 | 3,0 | 40 | 1,2 | 0,279 | 4 | 114,50 | 2214500480 0 | I 0,480 | 4,0 | 3,0 | 40 | 2,0 | 0,479 | 4 | 111,00 |
| 2214500285 0 | I 0,285 | 2,5 | 3,0 | 40 | 1,2 | 0,284 | 4 | 114,50 | 2214500485 0 | I 0,485 | 4,0 | 3,0 | 40 | 2,0 | 0,484 | 4 | 111,00 |
| 2214500290 0 | I 0,290 | 2,5 | 3,0 | 40 | 1,2 | 0,289 | 4 | 114,50 | 2214500490 0 | I 0,490 | 4,0 | 3,0 | 40 | 2,0 | 0,489 | 4 | 111,00 |
| 2214500295 0 | I 0,295 | 2,5 | 3,0 | 40 | 1,2 | 0,294 | 4 | 114,50 | 2214500495 0 | I 0,495 | 4,0 | 3,0 | 40 | 2,0 | 0,494 | 4 | 111,00 |
| 2214500300 0 | I 0,300 | 3,0 | 3,0 | 40 | 1,5 | 0,299 | 4 | 113,00 | 2214500500 0 | I 0,500 | 5,0 | 3,0 | 40 | 2,4 | 0,499 | 4 | 110,00 |
| 2214500305 0 | I 0,305 | 3,0 | 3,0 | 40 | 1,5 | 0,304 | 4 | 113,00 | 2214500505 0 | I 0,505 | 5,0 | 3,0 | 40 | 2,4 | 0,504 | 4 | 110,00 |
| 2214500310 0 | I 0,310 | 3,0 | 3,0 | 40 | 1,5 | 0,309 | 4 | 113,00 | 2214500510 0 | I 0,510 | 5,0 | 3,0 | 40 | 2,4 | 0,509 | 4 | 110,00 |
| 2214500315 0 | I 0,315 | 3,0 | 3,0 | 40 | 1,5 | 0,314 | 4 | 113,00 | 2214500515 0 | I 0,515 | 5,0 | 3,0 | 40 | 2,4 | 0,514 | 4 | 110,00 |
| 2214500320 0 | I 0,320 | 3,0 | 3,0 | 40 | 1,5 | 0,319 | 4 | 113,00 | 2214500520 0 | I 0,520 | 5,0 | 3,0 | 40 | 2,4 | 0,519 | 4 | 110,00 |
| 2214500325 0 | I 0,325 | 3,0 | 3,0 | 40 | 1,5 | 0,324 | 4 | 113,00 | 2214500525 0 | I 0,525 | 5,0 | 3,0 | 40 | 2,4 | 0,524 | 4 | 110,00 |
| 2214500330 0 | I 0,330 | 3,0 | 3,0 | 40 | 1,5 | 0,329 | 4 | 113,00 | 2214500530 0 | I 0,530 | 5,0 | 3,0 | 40 | 2,4 | 0,529 | 4 | 110,00 |
| 2214500335 0 | I 0,335 | 3,0 | 3,0 | 40 | 1,5 | 0,334 | 4 | 113,00 | 2214500535 0 | I 0,535 | 5,0 | 3,0 | 40 | 2,4 | 0,534 | 4 | 110,00 |
| 2214500340 0 | I 0,340 | 3,0 | 3,0 | 40 | 1,5 | 0,339 | 4 | 113,00 | 2214500540 0 | I 0,540 | 5,0 | 3,0 | 40 | 2,4 | 0,539 | 4 | 110,00 |
| 2214500345 0 | I 0,345 | 3,0 | 3,0 | 40 | 1,5 | 0,344 | 4 | 113,00 | 2214500545 0 | I 0,545 | 5,0 | 3,0 | 40 | 2,4 | 0,544 | 4 | 110,00 |
| 2214500350 0 | I 0,350 | 3,5 | 3,0 | 40 | 1,8 | 0,349 | 4 | 112,00 | 2214500550 0 | I 0,550 | 5,0 | 3,0 | 40 | 2,4 | 0,549 | 4 | 110,00 |
| 2214500355 0 | I 0,355 | 3,5 | 3,0 | 40 | 1,8 | 0,354 | 4 | 112,00 | 2214500555 0 | I 0,555 | 5,0 | 3,0 | 40 | 2,4 | 0,554 | 4 | 110,00 |
| 2214500360 0 | I 0,360 | 3,5 | 3,0 | 40 | 1,8 | 0,359 | 4 | 112,00 | 2214500560 0 | I 0,560 | 5,0 | 3,0 | 40 | 2,4 | 0,559 | 4 | 110,00 |
| 2214500365 0 | I 0,365 | 3,5 | 3,0 | 40 | 1,8 | 0,364 | 4 | 112,00 | 2214500565 0 | I 0,565 | 5,0 | 3,0 | 40 | 2,4 | 0,564 | 4 | 110,00 |
| 2214500370 0 | I 0,370 | 3,5 | 3,0 | 40 | 1,8 | 0,369 | 4 | 112,00 | 2214500570 0 | I 0,570 | 5,0 | 3,0 | 40 | 2,4 | 0,569 | 4 | 110,00 |
| 2214500375 0 | I 0,375 | 3,5 | 3,0 | 40 | 1,8 | 0,374 | 4 | 112,00 | 2214500575 0 | I 0,575 | 5,0 | 3,0 | 40 | 2,4 | 0,574 | 4 | 110,00 |
| 2214500380 0 | I 0,380 | 3,5 | 3,0 | 40 | 1,8 | 0,379 | 4 | 112,00 | 2214500580 0 | I 0,580 | 5,0 | 3,0 | 40 | 2,4 | 0,579 | 4 | 110,00 |
| 2214500385 0 | I 0,385 | 3,5 | 3,0 | 40 | 1,8 | 0,384 | 4 | 112,00 | 2214500585 0 | I 0,585 | 5,0 | 3,0 | 40 | 2,4 | 0,584 | 4 | 110,00 |
| 2214500390 0 | I 0,390 | 3,5 | 3,0 | 40 | 1,8 | 0,389 | 4 | 112,00 | 2214500590 0 | I 0,590 | 5,0 | 3,0 | 40 | 2,4 | 0,589 | 4 | 110,00 |
| 2214500395 0 | I 0,395 | 3,5 | 3,0 | 40 | 1,8 | 0,394 | 4 | 112,00 | 2214500595 0 | I 0,595 | 5,0 | 3,0 | 40 | 2,4 | 0,594 | 4 | 110,00 |
ES
I франко-склад / stock Возможна поставка всех размеров с градацией в мкм / Сроки поставки в отсутствие покрытия - около 5 рабочих дней / с покрытием - около 8 дней Index All dimensions available in µm-steps / Delivery time without coating 5 working days / with coating 8 working days
