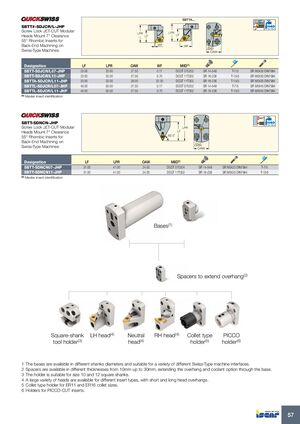

SBTTA... 27° MAX SBTT#-SDJCR/L-JHP 93° Bar Max Screw Lock JET-CUT Modular LPR LPR LF Heads Mount 7° Clearance LF 55° Rhombic Inserts for Back-End Machining on WF WF Ø45 Swiss-Type Machines OAW Designation LF LPR OAW WF MIID(1) SBTT-SDJCR/L07-JHP 23.00 33.00 27.50 0.17 DCGT 070202 SR 14-548 T-7/5 SR M5X30 DIN7984 SBTT-SDJCR/L11-JHP 23.00 33.00 27.50 0.70 DCGT 11T302 SR 16-236 T-15/5 SR M5X30 DIN7984 SBTTA-SDJCR/L11-JHP 23.00 33.00 28.00 22.30 DCGT 11T302 SR 16-236 T-15/5 SR M5X30 DIN7984 SBTTL-SDJCR/L07-JHP 40.00 50.00 27.50 0.17 DCGT 070202 SR 14-548 T-7/5 SR M5X45 DIN7984 SBTTL-SDJCR/L11-JHP 40.00 50.00 27.50 0.70 DCGT 11T302 SR 16-236 T-15/5 SR M5X45 DIN7984 (1) Master insert identification 62.5° SBTT-SDNCN-JHP Bar Max Screw Lock JET-CUT Modular LPR Heads Mount 7° Clearance LF 62.5˚ 55° Rhombic Inserts for Back-End Machining on Ø45 Swiss-Type Machines OAW Designation LF LPR OAW MIID(1) SBTT-SDNCN07-JHP 31.00 41.00 24.00 DCGT 070204 SR 14-548 SR M5X25 DIN7984 T-7/5 SBTT-SDNCN11-JHP 31.00 41.00 24.00 DCGT 11T302 SR 16-236 SR M5X25 DIN7984 T-15/5 (1) Master insert identification Bases(1) Spacers to extend overhang(2) Square-shank LH head(4) Neutral RH head(4) Collet type PICCO tool holder(3) head(4) holder(5) holder(6) 1 The bases are available in different shanks diameters and suitable for a variety of different Swiss-Type machine interfaces. 2 Spacers are available in different thicknesses from 10mm up to 30mm, extending the overhang and coolant option through the base. 3 The holder is suitable for size 10 and 12 square shanks. 4 A large variety of heads are available for different insert types, with short and long head overhangs. 5 Collet type holder for ER11 and ER16 collet sizes. 6 Holders for PICCO-CUT inserts. 57
