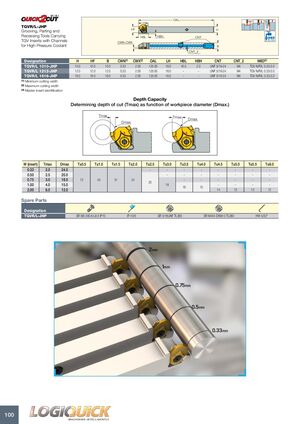

OAL LH TGVR/L-JHP HF H Grooving, Parting and Recessing Tools Carrying HBL HBH CNT TGV Inserts with Channels CWN-CWX Bar Max for High-Pressure Coolant B CNT_2 Designation H HF B CWN(1) CWX(2) OAL LH HBL HBH CNT CNT_2 MIID(3) TGVR/L 1010-JHP 10.0 10.0 10.0 0.33 2.00 125.00 16.0 16.5 2.0 UNF 5/16-24 M4 TGV N/R/L 0.33-3.0 TGVR/L 1212-JHP 12.0 12.0 12.0 0.33 2.00 125.00 16.0 - - UNF 5/16-24 M4 TGV N/R/L 0.33-3.0 TGVR/L 1616-JHP 16.0 16.0 16.0 0.33 2.00 125.00 16.0 - - UNF 5/16-24 M4 TGV N/R/L 0.33-3.0 (1) Minimum cutting width (2) Maximum cutting width (3) Master insert identification Depth Capacity Determining depth of cut (Tmax) as function of workpiece diameter (Dmax.) Tmax Tmax Dmax Dmax W (insert) Tmax Dmax T≤0.5 T≤1.0 T≤1.5 T≤2.0 T≤2.5 T≤3.0 T≤3.5 T≤4.0 T≤4.5 T≤5.0 T≤5.5 T≤6.0 0.33 2.0 24.0 - - - - - - - - 0.50 2.5 20.0 - - - - - - - 0.75 3.0 18.0 72 45 31 24 - - - - - - 20 1.00 4.0 15.0 18 - - - - 16 15 2.00 6.0 12.0 14 13 13 12 Spare Parts Designation TGVR/L-JHP SR M3.5X0.6-L8.5 IP10 IP-10/5 SR 5/16UNF TL360 SR M4X4 DIN913 TL360 HW 5/32" 2mm 1mm 0.75mm 0.5mm 0.33mm 100
