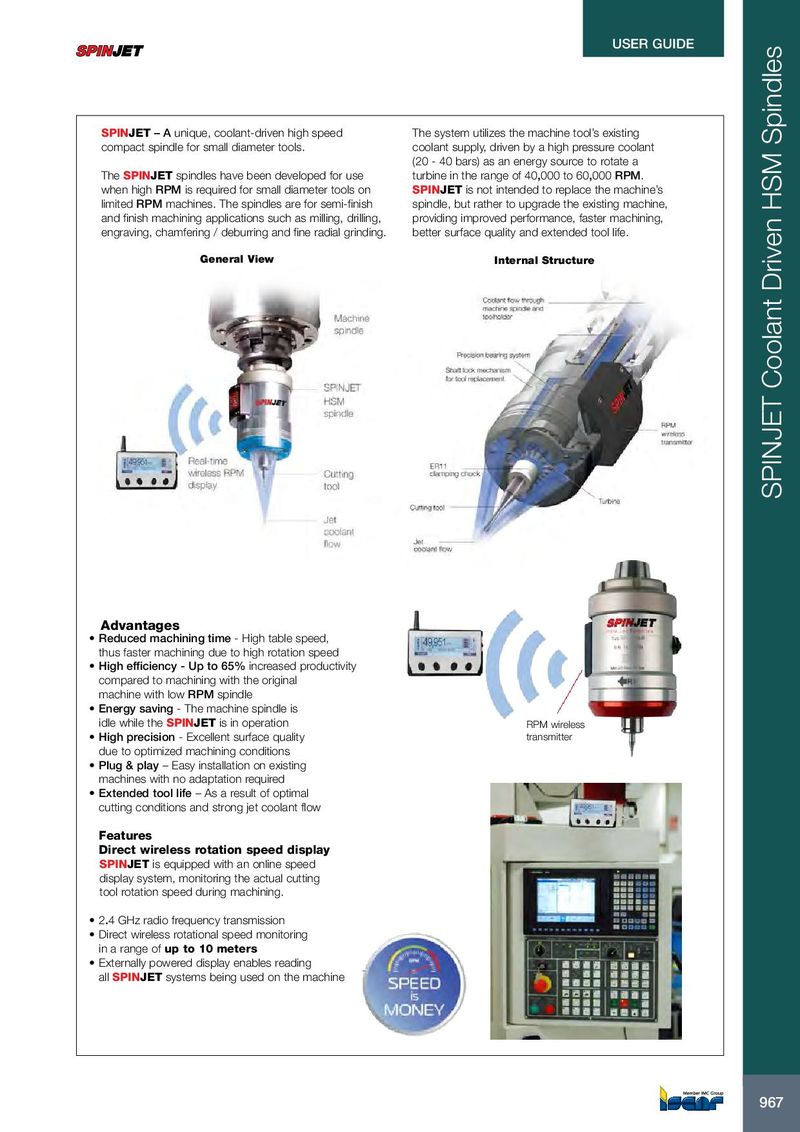

USER GUIDE SPINJET – A unique, coolant-driven high speed The system utilizes the machine tool’s existing compact spindle for small diameter tools. coolant supply, driven by a high pressure coolant (20 - 40 bars) as an energy source to rotate a The SPINJET spindles have been developed for use turbine in the range of 40,000 to 60,000 RPM. when high RPM is required for small diameter tools on SPINJET is not intended to replace the machine’s limited RPM machines. The spindles are for semi-finish spindle, but rather to upgrade the existing machine, and finish machining applications such as milling, drilling, providing improved performance, faster machining, engraving, chamfering / deburring and fine radial grinding. better surface quality and extended tool life. General View Internal Structure SPINJET Coolant Driven HSM Spindles Advantages • Reduced machining time - High table speed, thus faster machining due to high rotation speed • High efficiency - Up to 65% increased productivity compared to machining with the original machine with low RPM spindle • Energy saving - The machine spindle is idle while the SPINJET is in operation RPM wireless • High precision - Excellent surface quality transmitter due to optimized machining conditions • Plug & play – Easy installation on existing machines with no adaptation required • Extended tool life – As a result of optimal cutting conditions and strong jet coolant flow Features Direct wireless rotation speed display SPINJET is equipped with an online speed display system, monitoring the actual cutting tool rotation speed during machining. • 2.4 GHz radio frequency transmission • Direct wireless rotational speed monitoring in a range of up to 10 meters • Externally powered display enables reading all SPINJET systems being used on the machine 967
