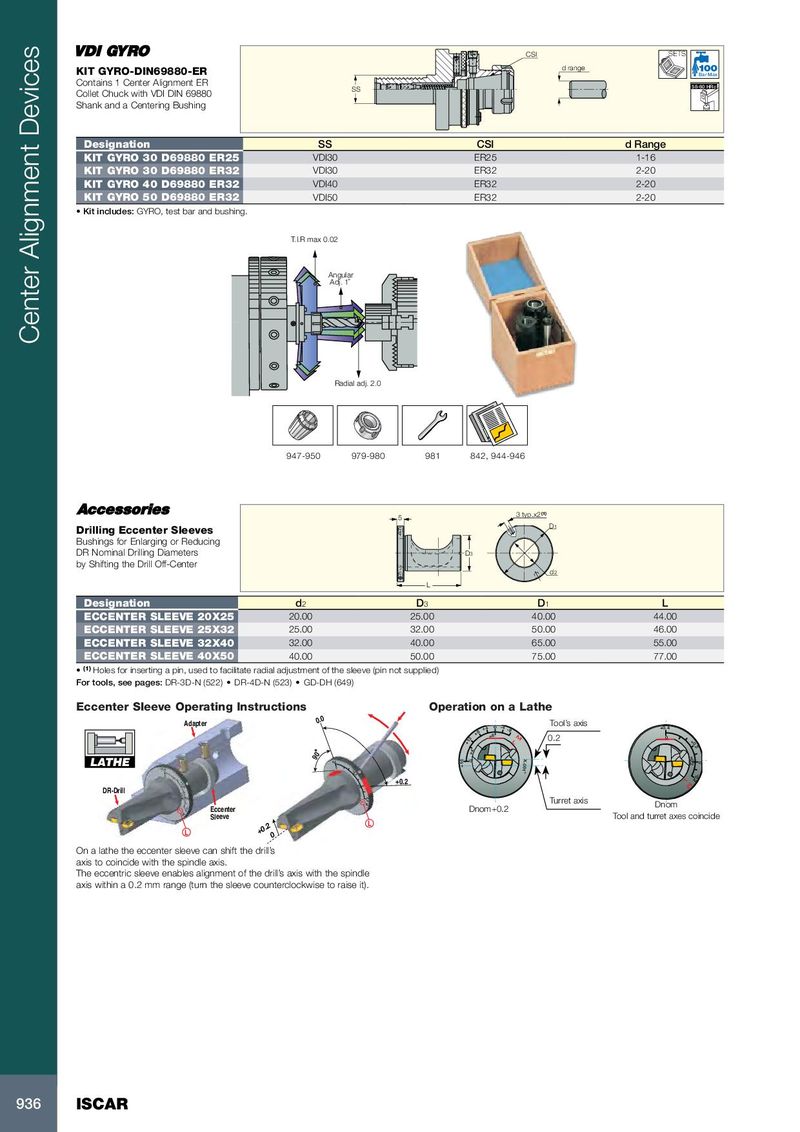

CSI SETS d range KIT GYRO-DIN69880-ER Bar Max Contains 1 Center Alignment ER SS 58-60 HRc Collet Chuck with VDI DIN 69880 Shank and a Centering Bushing Designation SS CSI d Range KIT GYRO 30 D69880 ER25 VDI30 ER25 1-16 KIT GYRO 30 D69880 ER32 VDI30 ER32 2-20 KIT GYRO 40 D69880 ER32 VDI40 ER32 2-20 KIT GYRO 50 D69880 ER32 VDI50 ER32 2-20 • Kit includes: GYRO, test bar and bushing. T.I.R max 0.02 Angular Adj. 1˚ Center Alignment Devices Radial adj. 2.0 947-950 979-980 981 842, 944-946 (1) 5 3 typ.x2 D 1 Drilling Eccenter Sleeves Bushings for Enlarging or Reducing DR Nominal Drilling Diameters D 3 by Shifting the Drill Off-Center d2 L Designation d 2 D 3 D 1 L ECCENTER SLEEVE 20X25 20.00 25.00 40.00 44.00 ECCENTER SLEEVE 25X32 25.00 32.00 50.00 46.00 ECCENTER SLEEVE 32X40 32.00 40.00 65.00 55.00 ECCENTER SLEEVE 40X50 40.00 50.00 75.00 77.00 • (1) Holes for inserting a pin, used to facilitate radial adjustment of the sleeve (pin not supplied) For tools, see pages: DR-3D-N (522) • DR-4D-N (523) • GD-DH (649) Eccenter Sleeve Operating Instructions Operation on a Lathe Adapter 0.0 Tool’s axis +4 0 -4 -8 +0.4 +8 +8 M +12 L 0.2 0 +0.2 +4 +0.2 90 LATHE +0.4 0 X.001” 0 0 +16 +0.2 -0.2 L +0.2 0 +0.2 M DR-Drill -0.2 L M Turret axis L Dnom Eccenter Dnom+0.2 Sleeve Tool and turret axes coincide L L +0.2 0 On a lathe the eccenter sleeve can shift the drill’s axis to coincide with the spindle axis. The eccentric sleeve enables alignment of the drill’s axis with the spindle axis within a 0.2 mm range (turn the sleeve counterclockwise to raise it). 936 ISCAR
