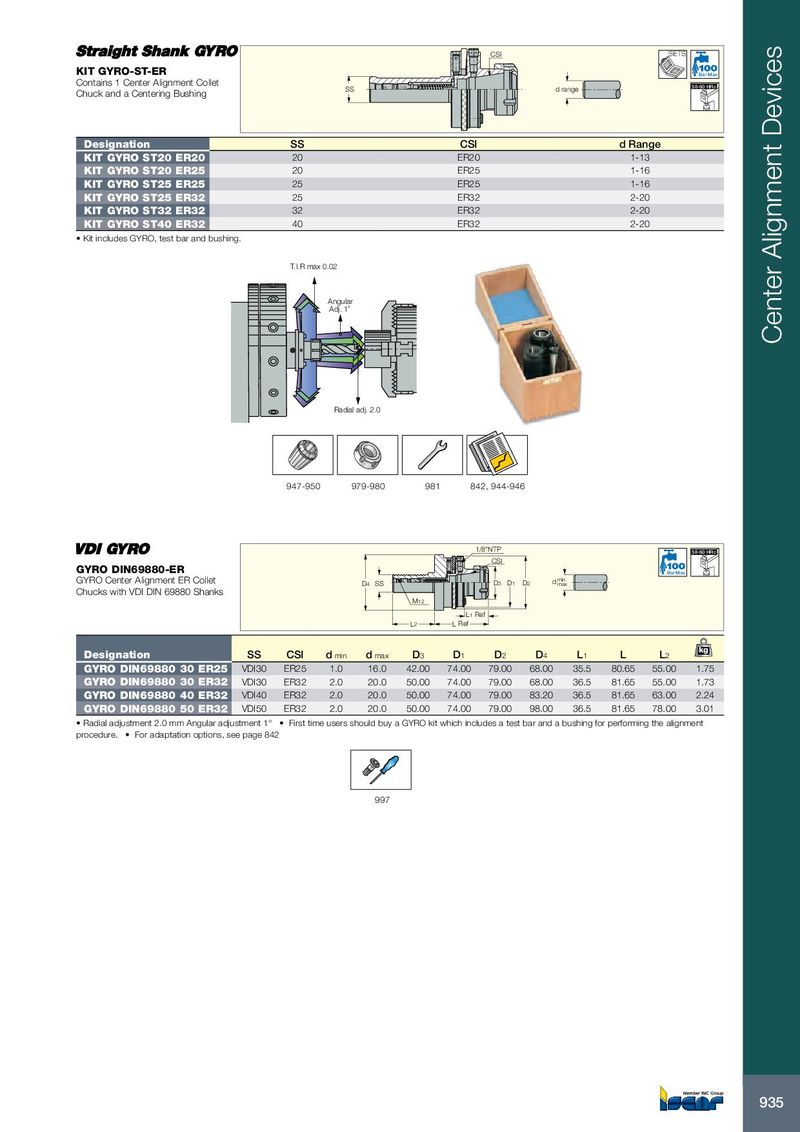

CSI SETS KIT GYRO-ST-ER Bar Max Contains 1 Center Alignment Collet SS d range 58-60 HRc Chuck and a Centering Bushing Designation SS CSI d Range KIT GYRO ST20 ER20 20 ER20 1-13 KIT GYRO ST20 ER25 20 ER25 1-16 KIT GYRO ST25 ER25 25 ER25 1-16 KIT GYRO ST25 ER32 25 ER32 2-20 KIT GYRO ST32 ER32 32 ER32 2-20 KIT GYRO ST40 ER32 40 ER32 2-20 • Kit includes GYRO, test bar and bushing. T.I.R max 0.02 Angular Adj. 1˚ Center Alignment Devices Radial adj. 2.0 947-950 979-980 981 842, 944-946 1/8”NTP 58-60 HRc CSI GYRO DIN69880-ER Bar Max GYRO Center Alignment ER Collet D 4 SS D 3 D 1 D 2 d min max Chucks with VDI DIN 69880 Shanks M12 L 1 Ref L 2 L Ref kg Designation SS CSI d min d max D 3 D 1 D 2 D 4 L 1 L L 2 GYRO DIN69880 30 ER25 VDI30 ER25 1.0 16.0 42.00 74.00 79.00 68.00 35.5 80.65 55.00 1.75 GYRO DIN69880 30 ER32 VDI30 ER32 2.0 20.0 50.00 74.00 79.00 68.00 36.5 81.65 55.00 1.73 GYRO DIN69880 40 ER32 VDI40 ER32 2.0 20.0 50.00 74.00 79.00 83.20 36.5 81.65 63.00 2.24 GYRO DIN69880 50 ER32 VDI50 ER32 2.0 20.0 50.00 74.00 79.00 98.00 36.5 81.65 78.00 3.01 • Radial adjustment 2.0 mm Angular adjustment 1° • First time users should buy a GYRO kit which includes a test bar and a bushing for performing the alignment procedure. • For adaptation options, see page 842 997 935
