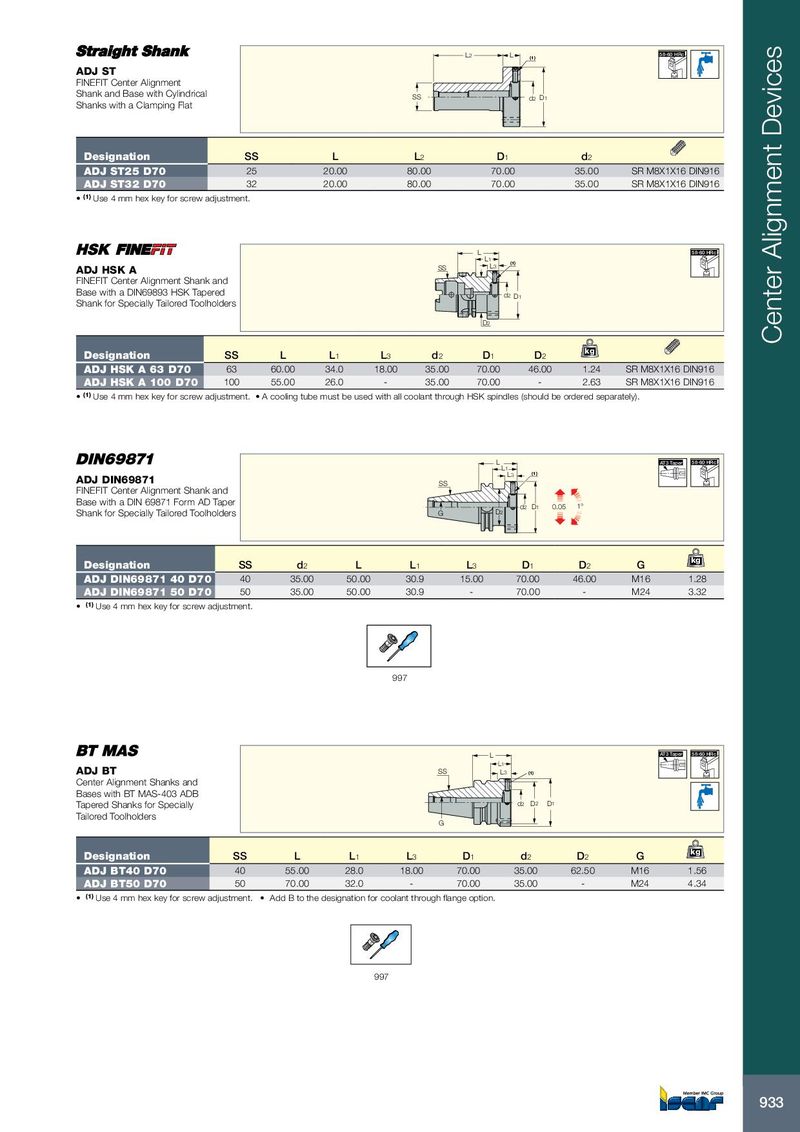

L 2 L (1) 58-60 HRc ADJ ST FINEFIT Center Alignment Shank and Base with Cylindrical SS d 2 D 1 Shanks with a Clamping Flat Designation SS L L 2 D 1 d 2 ADJ ST25 D70 25 20.00 80.00 70.00 35.00 SR M8X1X16 DIN916 ADJ ST32 D70 32 20.00 80.00 70.00 35.00 SR M8X1X16 DIN916 • (1) Use 4 mm hex key for screw adjustment. L 58-60 HRc L1 (1) ADJ HSK A SS L3 FINEFIT Center Alignment Shank and Base with a DIN69893 HSK Tapered d2 D1 Shank for Specially Tailored Toolholders D2 Center Alignment Devices kg Designation SS L L 1 L 3 d 2 D 1 D 2 ADJ HSK A 63 D70 63 60.00 34.0 18.00 35.00 70.00 46.00 1.24 SR M8X1X16 DIN916 ADJ HSK A 100 D70 100 55.00 26.0 - 35.00 70.00 - 2.63 SR M8X1X16 DIN916 • (1) Use 4 mm hex key for screw adjustment. • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). L AT3 Taper 58-60 HRc L1 L3 (1) ADJ DIN69871 SS FINEFIT Center Alignment Shank and Base with a DIN 69871 Form AD Taper d2 D1 0.05 1° Shank for Specially Tailored Toolholders G D2 kg Designation SS d 2 L L 1 L 3 D 1 D 2 G ADJ DIN69871 40 D70 40 35.00 50.00 30.9 15.00 70.00 46.00 M16 1.28 ADJ DIN69871 50 D70 50 35.00 50.00 30.9 - 70.00 - M24 3.32 • (1) Use 4 mm hex key for screw adjustment. 997 L AT3 Taper 58-60 HRc L1 ADJ BT SS L 3 (1) Center Alignment Shanks and Bases with BT MAS-403 ADB Tapered Shanks for Specially d 2 D 2 D 1 Tailored Toolholders G kg Designation SS L L 1 L 3 D 1 d 2 D 2 G ADJ BT40 D70 40 55.00 28.0 18.00 70.00 35.00 62.50 M16 1.56 ADJ BT50 D70 50 70.00 32.0 - 70.00 35.00 - M24 4.34 • (1) Use 4 mm hex key for screw adjustment. • Add B to the designation for coolant through flange option. 997 933
