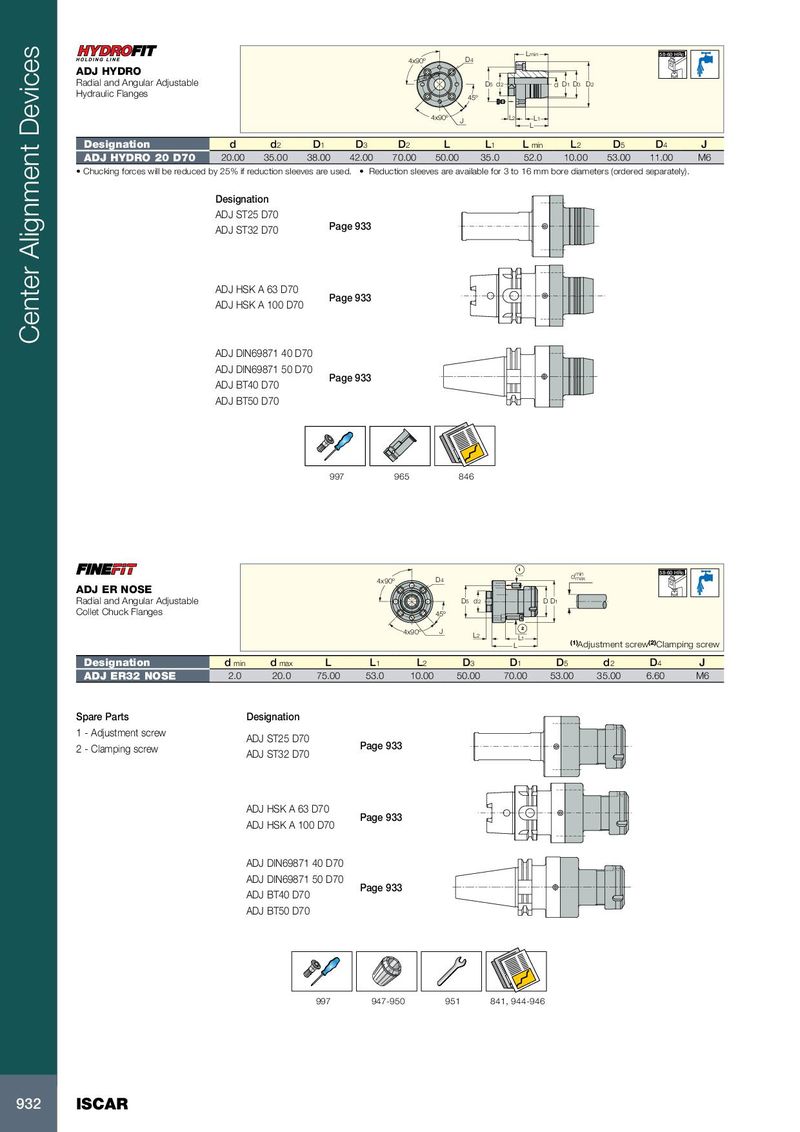

Lmin 58-60 HRc 4x90º D4 ADJ HYDRO Radial and Angular Adjustable D5 d2 d D1 D3 D2 Hydraulic Flanges 45º 4x90º J L2 L1 L Designation d d 2 D 1 D 3 D 2 L L 1 L min L 2 D 5 D 4 J ADJ HYDRO 20 D70 20.00 35.00 38.00 42.00 70.00 50.00 35.0 52.0 10.00 53.00 11.00 M6 • Chucking forces will be reduced by 25% if reduction sleeves are used. • Reduction sleeves are available for 3 to 16 mm bore diameters (ordered separately). Designation ADJ ST25 D70 ADJ ST32 D70 Page 933 ADJ HSK A 63 D70 Page 933 ADJ HSK A 100 D70 Center Alignment Devices ADJ DIN69871 40 D70 ADJ DIN69871 50 D70 Page 933 ADJ BT40 D70 ADJ BT50 D70 997 965 846 1 58-60 HRc d min 4x90º D4 max ADJ ER NOSE Radial and Angular Adjustable D5 d2 D D1 Collet Chuck Flanges 45º J 2 4x90º L2 L1 L (1) Adjustment screw (2) Clamping screw Designation d min d max L L 1 L 2 D 3 D 1 D 5 d 2 D 4 J ADJ ER32 NOSE 2.0 20.0 75.00 53.0 10.00 50.00 70.00 53.00 35.00 6.60 M6 Spare Parts Designation 1 - Adjustment screw ADJ ST25 D70 2 - Clamping screw Page 933 ADJ ST32 D70 ADJ HSK A 63 D70 Page 933 ADJ HSK A 100 D70 ADJ DIN69871 40 D70 ADJ DIN69871 50 D70 Page 933 ADJ BT40 D70 ADJ BT50 D70 997 947-950 951 841, 944-946 932 ISCAR
