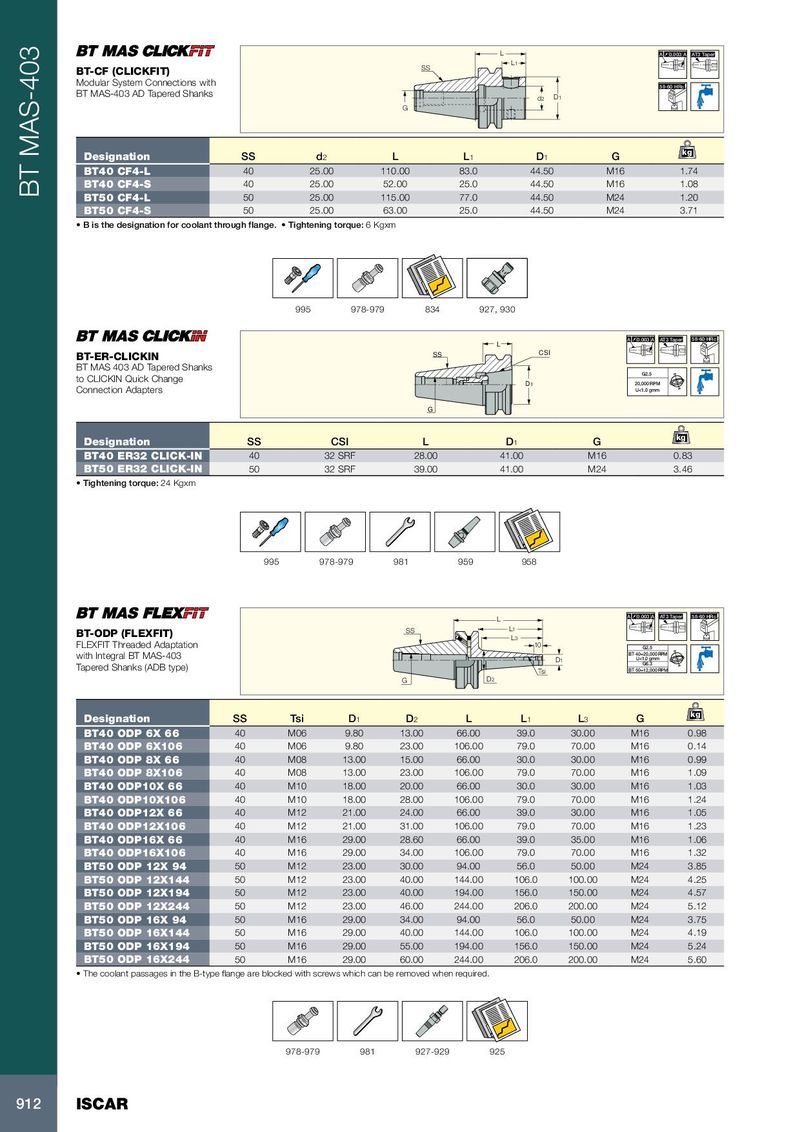

Каталог Iscar вращающийся инструмент 2017 - страница 916

L A 0.003 A AT3 Taper L 1 SS BT-CF (CLICKFIT) Modular System Connections with 58-60 HRc BT MAS-403 AD Tapered Shanks d 2 D 1 G kg Designation SS d 2 L L 1 D 1 G BT40 CF4-L 40 25.00 110.00 83.0 44.50 M16 1.74 BT40 CF4-S 40 25.00 52.00 25.0 44.50 M16 1.08 BT MAS-403 BT50 CF4-L 50 25.00 115.00 77.0 44.50 M24 1.20 BT50 CF4-S 50 25.00 63.00 25.0 44.50 M24 3.71 • B is the designation for coolant through flange. • Tightening torque: 6 Kgxm 995 978-979 834 927, 930 A 0.003 A AT3 Taper 58-60 HRc L BT-ER-CLICKIN SS CSI BT MAS 403 AD Tapered Shanks G2.5 to CLICKIN Quick Change D1 20,000 RPM Connection Adapters U<1.0 gmm G kg Designation SS CSI L D 1 G BT40 ER32 CLICK-IN 40 32 SRF 28.00 41.00 M16 0.83 BT50 ER32 CLICK-IN 50 32 SRF 39.00 41.00 M24 3.46 • Tightening torque: 24 Kgxm 995 978-979 981 959 958 L A 0.003 A AT3 Taper 58-60 HRc SS L1 BT-ODP (FLEXFIT) L3 FLEXFIT Threaded Adaptation 10 G2.5 with Integral BT MAS-403 BT 40=20,000 RPM D1 U<1.0 gmm G6.3 Tapered Shanks (ADB type) Tsi BT 50=12,000 RPM G D2 kg Designation SS Tsi D 1 D 2 L L 1 L 3 G BT40 ODP 6X 66 40 M06 9.80 13.00 66.00 39.0 30.00 M16 0.98 BT40 ODP 6X106 40 M06 9.80 23.00 106.00 79.0 70.00 M16 0.14 BT40 ODP 8X 66 40 M08 13.00 15.00 66.00 30.0 30.00 M16 0.99 BT40 ODP 8X106 40 M08 13.00 23.00 106.00 79.0 70.00 M16 1.09 BT40 ODP10X 66 40 M10 18.00 20.00 66.00 30.0 30.00 M16 1.03 BT40 ODP10X106 40 M10 18.00 28.00 106.00 79.0 70.00 M16 1.24 BT40 ODP12X 66 40 M12 21.00 24.00 66.00 39.0 30.00 M16 1.05 BT40 ODP12X106 40 M12 21.00 31.00 106.00 79.0 70.00 M16 1.23 BT40 ODP16X 66 40 M16 29.00 28.60 66.00 39.0 35.00 M16 1.06 BT40 ODP16X106 40 M16 29.00 34.00 106.00 79.0 70.00 M16 1.32 BT50 ODP 12X 94 50 M12 23.00 30.00 94.00 56.0 50.00 M24 3.85 BT50 ODP 12X144 50 M12 23.00 40.00 144.00 106.0 100.00 M24 4.25 BT50 ODP 12X194 50 M12 23.00 40.00 194.00 156.0 150.00 M24 4.57 BT50 ODP 12X244 50 M12 23.00 46.00 244.00 206.0 200.00 M24 5.12 BT50 ODP 16X 94 50 M16 29.00 34.00 94.00 56.0 50.00 M24 3.75 BT50 ODP 16X144 50 M16 29.00 40.00 144.00 106.0 100.00 M24 4.19 BT50 ODP 16X194 50 M16 29.00 55.00 194.00 156.0 150.00 M24 5.24 BT50 ODP 16X244 50 M16 29.00 60.00 244.00 206.0 200.00 M24 5.60 • The coolant passages in the B-type flange are blocked with screws which can be removed when required. 978-979 981 927-929 925 912 ISCAR
