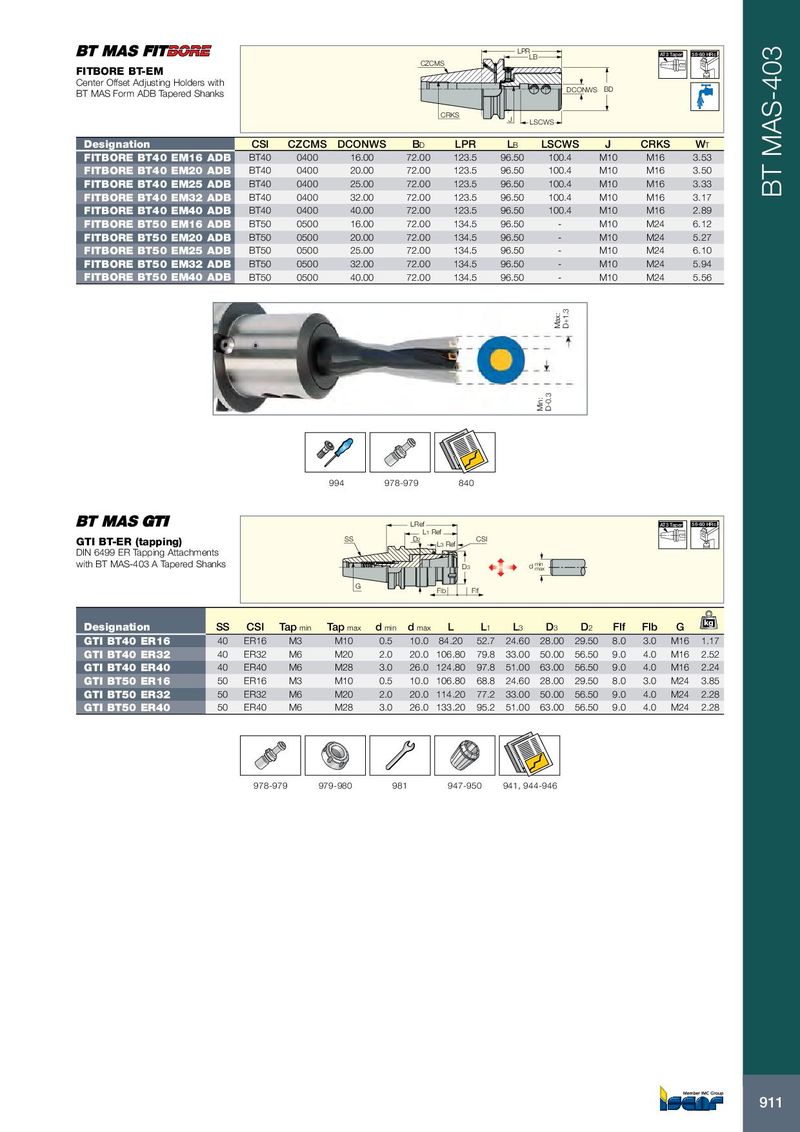

Каталог Iscar вращающийся инструмент 2017 - страница 915

LPR LB AT3 Taper 58-60 HRc CZCMS FITBORE BT-EM Center Offset Adjusting Holders with DCONWS BD BT MAS Form ADB Tapered Shanks CRKS J LSCWS Designation CSI CZCMS DCONWS B D LPR L B LSCWS J CRKS W T FITBORE BT40 EM16 ADB BT40 0400 16.00 72.00 123.5 96.50 100.4 M10 M16 3.53 FITBORE BT40 EM20 ADB BT40 0400 20.00 72.00 123.5 96.50 100.4 M10 M16 3.50 FITBORE BT40 EM25 ADB BT40 0400 25.00 72.00 123.5 96.50 100.4 M10 M16 3.33 FITBORE BT40 EM32 ADB BT40 0400 32.00 72.00 123.5 96.50 100.4 M10 M16 3.17 BT MAS-403 FITBORE BT40 EM40 ADB BT40 0400 40.00 72.00 123.5 96.50 100.4 M10 M16 2.89 FITBORE BT50 EM16 ADB BT50 0500 16.00 72.00 134.5 96.50 - M10 M24 6.12 FITBORE BT50 EM20 ADB BT50 0500 20.00 72.00 134.5 96.50 - M10 M24 5.27 FITBORE BT50 EM25 ADB BT50 0500 25.00 72.00 134.5 96.50 - M10 M24 6.10 FITBORE BT50 EM32 ADB BT50 0500 32.00 72.00 134.5 96.50 - M10 M24 5.94 FITBORE BT50 EM40 ADB BT50 0500 40.00 72.00 134.5 96.50 - M10 M24 5.56 Max: D+1.3 Min: D-0.3 994 978-979 840 L Ref AT3 Taper 58-60 HRc L 1 Ref GTI BT-ER (tapping) SS D 2 CSI L 3 Ref DIN 6499 ER Tapping Attachments with BT MAS-403 A Tapered Shanks D 3 d min max G Flb Flf kg Designation SS CSI Tap min Tap max d min d max L L 1 L 3 D 3 D 2 Flf Flb G GTI BT40 ER16 40 ER16 M3 M10 0.5 10.0 84.20 52.7 24.60 28.00 29.50 8.0 3.0 M16 1.17 GTI BT40 ER32 40 ER32 M6 M20 2.0 20.0 106.80 79.8 33.00 50.00 56.50 9.0 4.0 M16 2.52 GTI BT40 ER40 40 ER40 M6 M28 3.0 26.0 124.80 97.8 51.00 63.00 56.50 9.0 4.0 M16 2.24 GTI BT50 ER16 50 ER16 M3 M10 0.5 10.0 106.80 68.8 24.60 28.00 29.50 8.0 3.0 M24 3.85 GTI BT50 ER32 50 ER32 M6 M20 2.0 20.0 114.20 77.2 33.00 50.00 56.50 9.0 4.0 M24 2.28 GTI BT50 ER40 50 ER40 M6 M28 3.0 26.0 133.20 95.2 51.00 63.00 56.50 9.0 4.0 M24 2.28 978-979 979-980 981 947-950 941, 944-946 911
