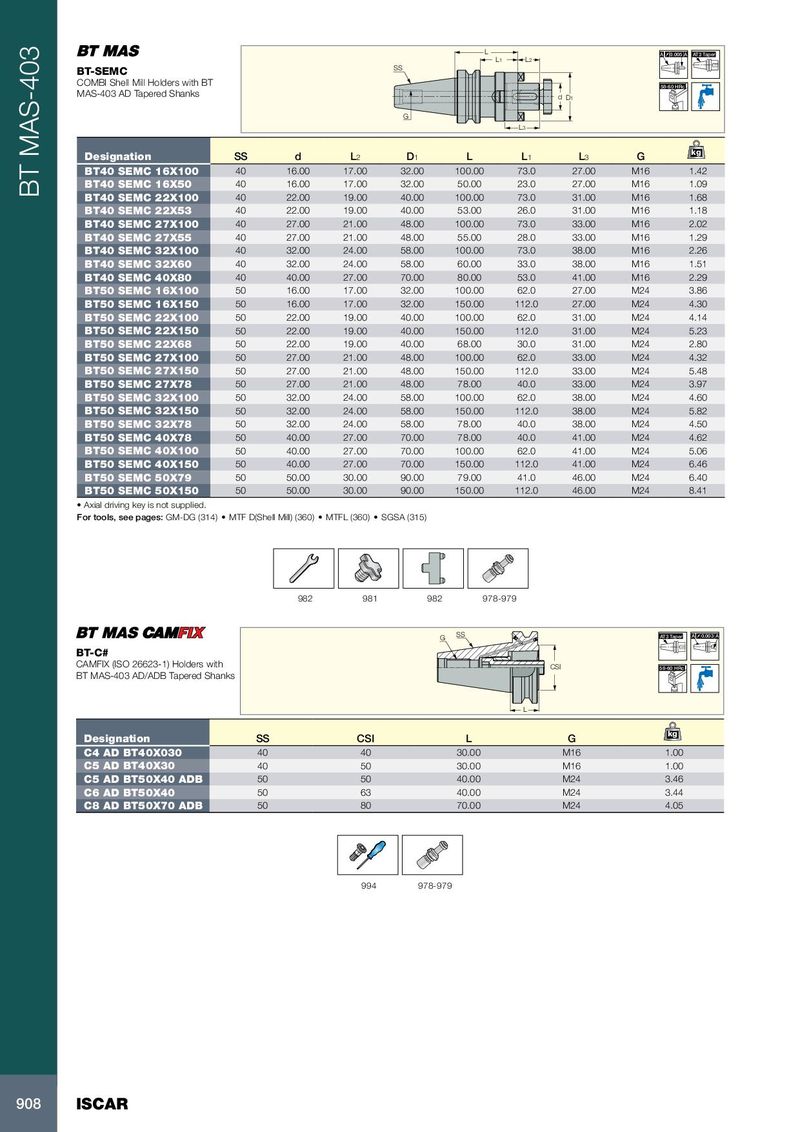

Каталог Iscar вращающийся инструмент 2017 - страница 912

L A 0.005 A AT3 Taper L 1 L 2 SS BT-SEMC COMBI Shell Mill Holders with BT 58-60 HRc MAS-403 AD Tapered Shanks d D 1 G L 3 kg Designation SS d L 2 D 1 L L 1 L 3 G BT40 SEMC 16X100 40 16.00 17.00 32.00 100.00 73.0 27.00 M16 1.42 BT40 SEMC 16X50 40 16.00 17.00 32.00 50.00 23.0 27.00 M16 1.09 BT MAS-403 BT40 SEMC 22X100 40 22.00 19.00 40.00 100.00 73.0 31.00 M16 1.68 BT40 SEMC 22X53 40 22.00 19.00 40.00 53.00 26.0 31.00 M16 1.18 BT40 SEMC 27X100 40 27.00 21.00 48.00 100.00 73.0 33.00 M16 2.02 BT40 SEMC 27X55 40 27.00 21.00 48.00 55.00 28.0 33.00 M16 1.29 BT40 SEMC 32X100 40 32.00 24.00 58.00 100.00 73.0 38.00 M16 2.26 BT40 SEMC 32X60 40 32.00 24.00 58.00 60.00 33.0 38.00 M16 1.51 BT40 SEMC 40X80 40 40.00 27.00 70.00 80.00 53.0 41.00 M16 2.29 BT50 SEMC 16X100 50 16.00 17.00 32.00 100.00 62.0 27.00 M24 3.86 BT50 SEMC 16X150 50 16.00 17.00 32.00 150.00 112.0 27.00 M24 4.30 BT50 SEMC 22X100 50 22.00 19.00 40.00 100.00 62.0 31.00 M24 4.14 BT50 SEMC 22X150 50 22.00 19.00 40.00 150.00 112.0 31.00 M24 5.23 BT50 SEMC 22X68 50 22.00 19.00 40.00 68.00 30.0 31.00 M24 2.80 BT50 SEMC 27X100 50 27.00 21.00 48.00 100.00 62.0 33.00 M24 4.32 BT50 SEMC 27X150 50 27.00 21.00 48.00 150.00 112.0 33.00 M24 5.48 BT50 SEMC 27X78 50 27.00 21.00 48.00 78.00 40.0 33.00 M24 3.97 BT50 SEMC 32X100 50 32.00 24.00 58.00 100.00 62.0 38.00 M24 4.60 BT50 SEMC 32X150 50 32.00 24.00 58.00 150.00 112.0 38.00 M24 5.82 BT50 SEMC 32X78 50 32.00 24.00 58.00 78.00 40.0 38.00 M24 4.50 BT50 SEMC 40X78 50 40.00 27.00 70.00 78.00 40.0 41.00 M24 4.62 BT50 SEMC 40X100 50 40.00 27.00 70.00 100.00 62.0 41.00 M24 5.06 BT50 SEMC 40X150 50 40.00 27.00 70.00 150.00 112.0 41.00 M24 6.46 BT50 SEMC 50X79 50 50.00 30.00 90.00 79.00 41.0 46.00 M24 6.40 BT50 SEMC 50X150 50 50.00 30.00 90.00 150.00 112.0 46.00 M24 8.41 • Axial driving key is not supplied. For tools, see pages: GM-DG (314) • MTF D(Shell Mill) (360) • MTFL (360) • SGSA (315) 982 981 982 978-979 G SS AT3 Taper A 0.003 A BT-C# CAMFIX (ISO 26623-1) Holders with CSI 58-60 HRc BT MAS-403 AD/ADB Tapered Shanks L kg Designation SS CSI L G C4 AD BT40X030 40 40 30.00 M16 1.00 C5 AD BT40X30 40 50 30.00 M16 1.00 C5 AD BT50X40 ADB 50 50 40.00 M24 3.46 C6 AD BT50X40 50 63 40.00 M24 3.44 C8 AD BT50X70 ADB 50 80 70.00 M24 4.05 994 978-979 908 ISCAR
