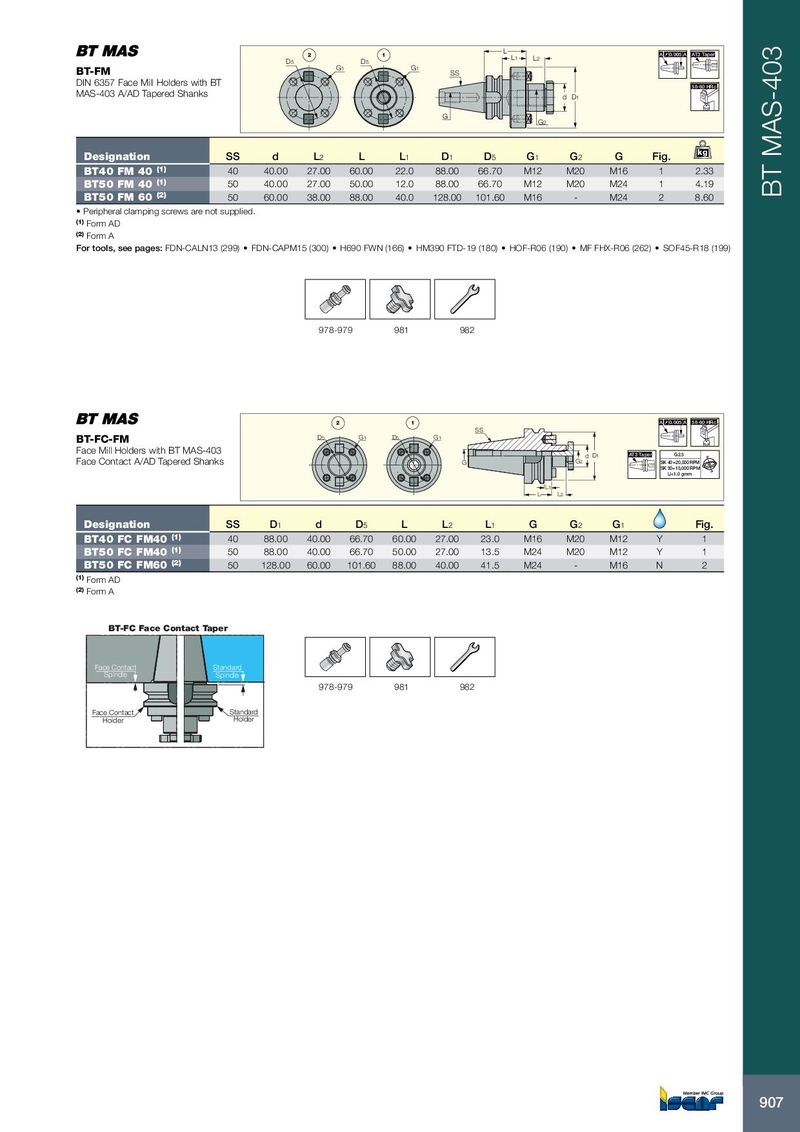

2 1 L A 0.005 A AT3 Taper D 5 D 5 L 1 L 2 G 1 G 1 BT-FM SS DIN 6357 Face Mill Holders with BT 58-60 HRc MAS-403 A/AD Tapered Shanks d D 1 G G 2 kg Designation SS d L 2 L L 1 D 1 D 5 G 1 G 2 G Fig. BT40 FM 40 (1) 40 40.00 27.00 60.00 22.0 88.00 66.70 M12 M20 M16 1 2.33 BT50 FM 40 (1) 50 40.00 27.00 50.00 12.0 88.00 66.70 M12 M20 M24 1 4.19 BT50 FM 60 (2) 50 60.00 38.00 88.00 40.0 128.00 101.60 M16 - M24 2 8.60 BT MAS-403 • Peripheral clamping screws are not supplied. (1) Form AD (2) Form A For tools, see pages: FDN-CALN13 (299) • FDN-CAPM15 (300) • H690 FWN (166) • HM390 FTD-19 (180) • HOF-R06 (190) • MF FHX-R06 (262) • SOF45-R18 (199) 978-979 981 982 2 1 A 0.005 A 58-60 HRc SS BT-FC-FM D5 G1 D5 G1 Face Mill Holders with BT MAS-403 d D1 AT3 Taper G2.5 Face Contact A/AD Tapered Shanks G G2 SK 40= 20,000 RPM SK 50=15,000 RPM U<1.0 gmm L1 L L2 Designation SS D 1 d D 5 L L 2 L 1 G G 2 G 1 Fig. BT40 FC FM40 (1) 40 88.00 40.00 66.70 60.00 27.00 23.0 M16 M20 M12 Y 1 BT50 FC FM40 (1) 50 88.00 40.00 66.70 50.00 27.00 13.5 M24 M20 M12 Y 1 BT50 FC FM60 (2) 50 128.00 60.00 101.60 88.00 40.00 41.5 M24 - M16 N 2 (1) Form AD (2) Form A BT-FC Face Contact Taper Face Contact Standard Spindle Spindle 978-979 981 982 Face Contact Standard Holder Holder 907
