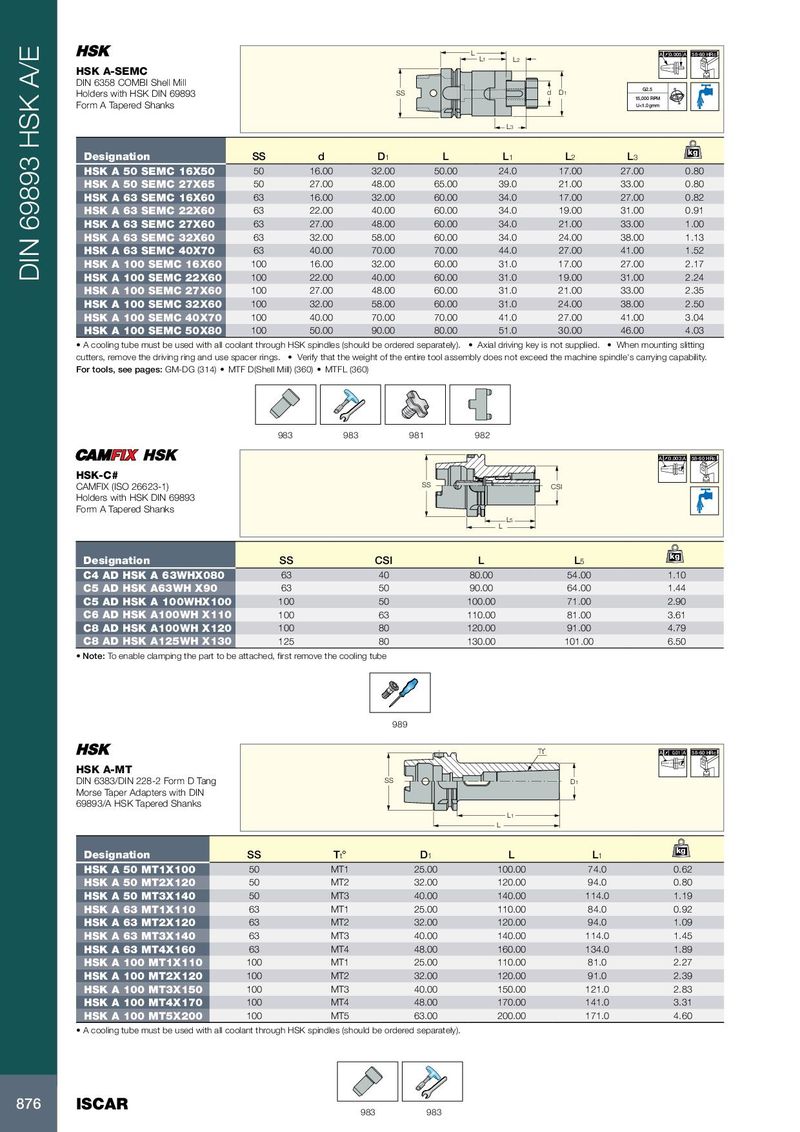

L A 0.005 A 58-60 HRc L 1 L 2 HSK A-SEMC DIN 6358 COMBI Shell Mill Holders with HSK DIN 69893 SS d D 1 G2.5 15,000 RPM Form A Tapered Shanks U<1.0 gmm L 3 kg Designation SS d D 1 L L 1 L 2 L 3 HSK A 50 SEMC 16X50 50 16.00 32.00 50.00 24.0 17.00 27.00 0.80 HSK A 50 SEMC 27X65 50 27.00 48.00 65.00 39.0 21.00 33.00 0.80 HSK A 63 SEMC 16X60 63 16.00 32.00 60.00 34.0 17.00 27.00 0.82 HSK A 63 SEMC 22X60 63 22.00 40.00 60.00 34.0 19.00 31.00 0.91 HSK A 63 SEMC 27X60 63 27.00 48.00 60.00 34.0 21.00 33.00 1.00 HSK A 63 SEMC 32X60 63 32.00 58.00 60.00 34.0 24.00 38.00 1.13 HSK A 63 SEMC 40X70 63 40.00 70.00 70.00 44.0 27.00 41.00 1.52 HSK A 100 SEMC 16X60 100 16.00 32.00 60.00 31.0 17.00 27.00 2.17 DIN 69893 HSK A/E HSK A 100 SEMC 22X60 100 22.00 40.00 60.00 31.0 19.00 31.00 2.24 HSK A 100 SEMC 27X60 100 27.00 48.00 60.00 31.0 21.00 33.00 2.35 HSK A 100 SEMC 32X60 100 32.00 58.00 60.00 31.0 24.00 38.00 2.50 HSK A 100 SEMC 40X70 100 40.00 70.00 70.00 41.0 27.00 41.00 3.04 HSK A 100 SEMC 50X80 100 50.00 90.00 80.00 51.0 30.00 46.00 4.03 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • Axial driving key is not supplied. • When mounting slitting cutters, remove the driving ring and use spacer rings. • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. For tools, see pages: GM-DG (314) • MTF D(Shell Mill) (360) • MTFL (360) 983 983 981 982 A 0.003 A 58-60 HRc HSK-C# CAMFIX (ISO 26623-1) SS CSI Holders with HSK DIN 69893 Form A Tapered Shanks L5 L kg Designation SS CSI L L 5 C4 AD HSK A 63WHX080 63 40 80.00 54.00 1.10 C5 AD HSK A63WH X90 63 50 90.00 64.00 1.44 C5 AD HSK A 100WHX100 100 50 100.00 71.00 2.90 C6 AD HSK A100WH X110 100 63 110.00 81.00 3.61 C8 AD HSK A100WH X120 100 80 120.00 91.00 4.79 C8 AD HSK A125WH X130 125 80 130.00 101.00 6.50 • Note: To enable clamping the part to be attached, first remove the cooling tube 989 Tt˚ A 0.01 A 58-60 HRc HSK A-MT DIN 6383/DIN 228-2 Form D Tang SS D 1 Morse Taper Adapters with DIN 69893/A HSK Tapered Shanks L 1 L kg Designation SS T t ° D 1 L L 1 HSK A 50 MT1X100 50 MT1 25.00 100.00 74.0 0.62 HSK A 50 MT2X120 50 MT2 32.00 120.00 94.0 0.80 HSK A 50 MT3X140 50 MT3 40.00 140.00 114.0 1.19 HSK A 63 MT1X110 63 MT1 25.00 110.00 84.0 0.92 HSK A 63 MT2X120 63 MT2 32.00 120.00 94.0 1.09 HSK A 63 MT3X140 63 MT3 40.00 140.00 114.0 1.45 HSK A 63 MT4X160 63 MT4 48.00 160.00 134.0 1.89 HSK A 100 MT1X110 100 MT1 25.00 110.00 81.0 2.27 HSK A 100 MT2X120 100 MT2 32.00 120.00 91.0 2.39 HSK A 100 MT3X150 100 MT3 40.00 150.00 121.0 2.83 HSK A 100 MT4X170 100 MT4 48.00 170.00 141.0 3.31 HSK A 100 MT5X200 100 MT5 63.00 200.00 171.0 4.60 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 876 ISCAR 983 983
