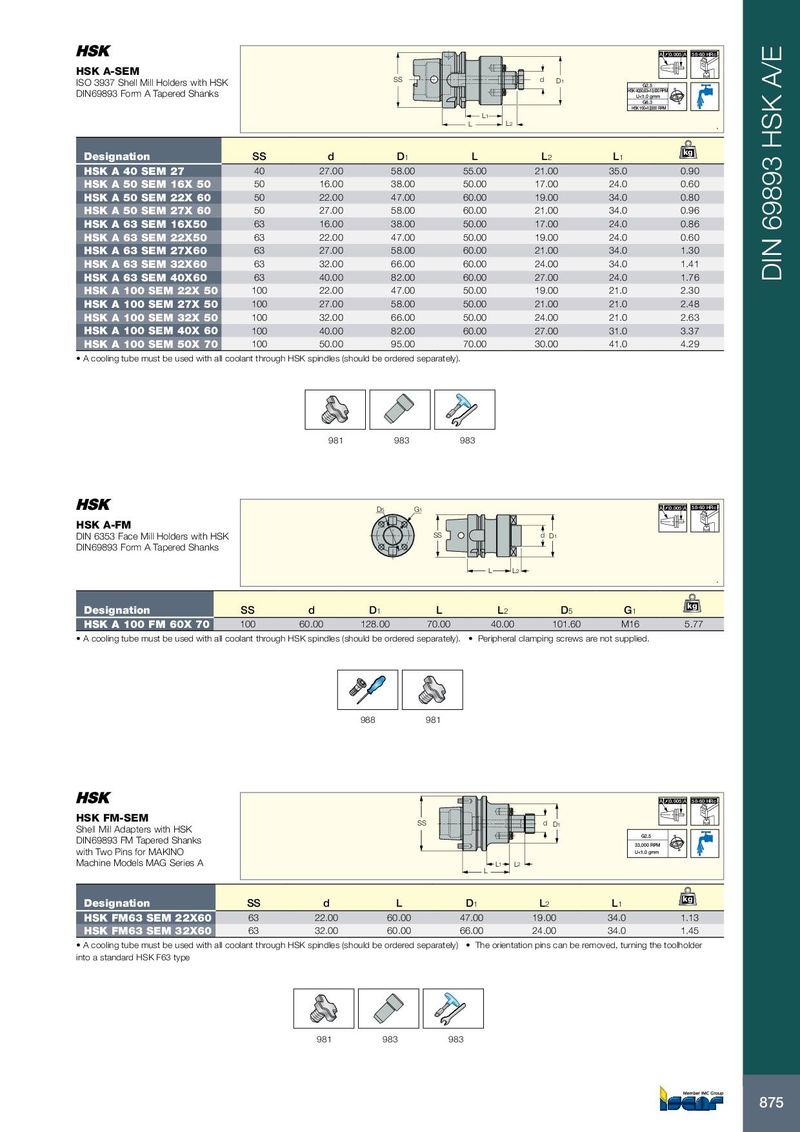

A 0.005 A 58-60 HRc HSK A-SEM ISO 3937 Shell Mill Holders with HSK SS d D 1 G2.5 HSK 40,50,63=15,000RPM DIN69893 Form A Tapered Shanks U<1.0 gmm G6.3 HSK 100=12,000 RPM L 1 L L 2 . kg Designation SS d D 1 L L 2 L 1 HSK A 40 SEM 27 40 27.00 58.00 55.00 21.00 35.0 0.90 HSK A 50 SEM 16X 50 50 16.00 38.00 50.00 17.00 24.0 0.60 HSK A 50 SEM 22X 60 50 22.00 47.00 60.00 19.00 34.0 0.80 HSK A 50 SEM 27X 60 50 27.00 58.00 60.00 21.00 34.0 0.96 HSK A 63 SEM 16X50 63 16.00 38.00 50.00 17.00 24.0 0.86 HSK A 63 SEM 22X50 63 22.00 47.00 50.00 19.00 24.0 0.60 HSK A 63 SEM 27X60 63 27.00 58.00 60.00 21.00 34.0 1.30 HSK A 63 SEM 32X60 63 32.00 66.00 60.00 24.00 34.0 1.41 HSK A 63 SEM 40X60 63 40.00 82.00 60.00 27.00 24.0 1.76 DIN 69893 HSK A/E HSK A 100 SEM 22X 50 100 22.00 47.00 50.00 19.00 21.0 2.30 HSK A 100 SEM 27X 50 100 27.00 58.00 50.00 21.00 21.0 2.48 HSK A 100 SEM 32X 50 100 32.00 66.00 50.00 24.00 21.0 2.63 HSK A 100 SEM 40X 60 100 40.00 82.00 60.00 27.00 31.0 3.37 HSK A 100 SEM 50X 70 100 50.00 95.00 70.00 30.00 41.0 4.29 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 981 983 983 D5 G1 A 0.005 A 58-60 HRc HSK A-FM DIN 6353 Face Mill Holders with HSK SS d D1 DIN69893 Form A Tapered Shanks L L2 . kg Designation SS d D 1 L L 2 D 5 G 1 HSK A 100 FM 60X 70 100 60.00 128.00 70.00 40.00 101.60 M16 5.77 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • Peripheral clamping screws are not supplied. 988 981 A 0.005 A 58-60 HRc HSK FM-SEM SS d D 1 Shell Mill Adapters with HSK G2.5 DIN69893 FM Tapered Shanks 33,000 RPM with Two Pins for MAKINO U<1.0 gmm Machine Models MAG Series A L 1 L 2 L kg Designation SS d L D 1 L 2 L 1 HSK FM63 SEM 22X60 63 22.00 60.00 47.00 19.00 34.0 1.13 HSK FM63 SEM 32X60 63 32.00 60.00 66.00 24.00 34.0 1.45 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • The orientation pins can be removed, turning the toolholder into a standard HSK F63 type 981 983 983 875
