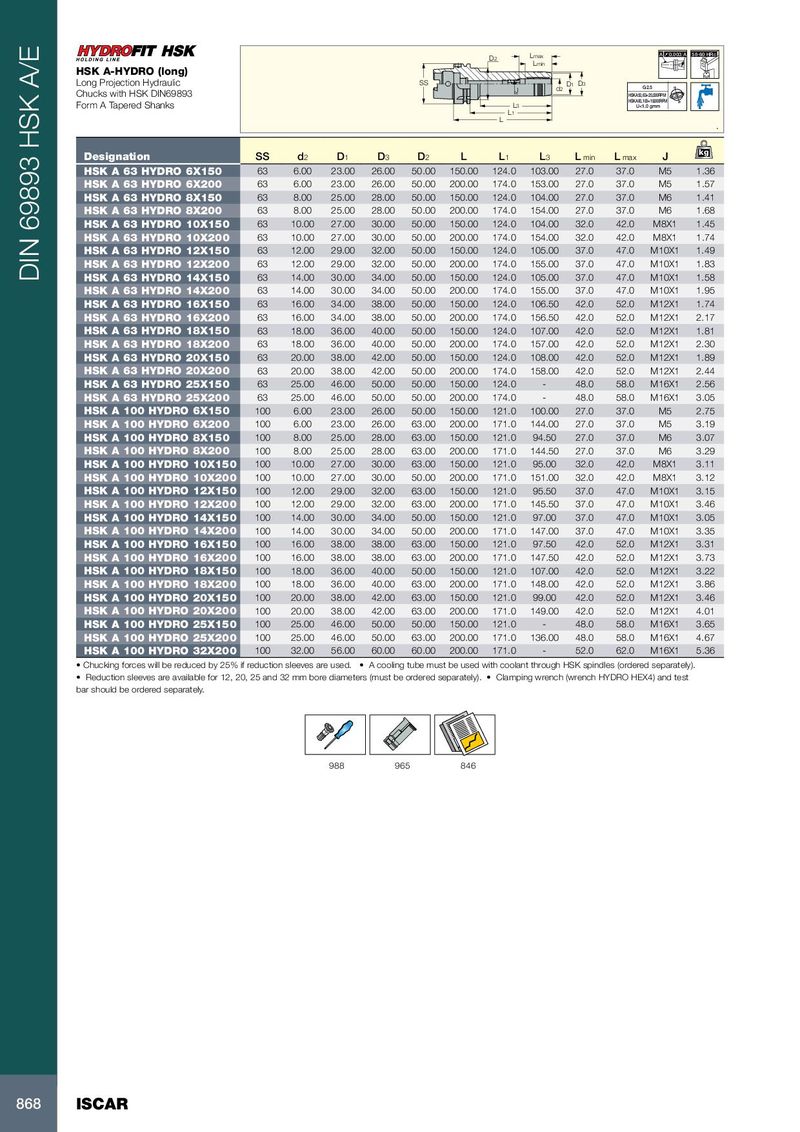

Каталог Iscar вращающийся инструмент 2017 - страница 872

Lmax A 0.003 A 58-60 HRc D2 Lmin HSK A-HYDRO (long) Long Projection Hydraulic SS D1 D3 Chucks with HSK DIN69893 J d2 G2.5 HSK A50, 63= 25,000RPM HSK A80, 100= 18,000RPM Form A Tapered Shanks L3 U<1.0 gmm L1 L . kg Designation SS d 2 D 1 D 3 D 2 L L 1 L 3 L min L max J HSK A 63 HYDRO 6X150 63 6.00 23.00 26.00 50.00 150.00 124.0 103.00 27.0 37.0 M5 1.36 HSK A 63 HYDRO 6X200 63 6.00 23.00 26.00 50.00 200.00 174.0 153.00 27.0 37.0 M5 1.57 HSK A 63 HYDRO 8X150 63 8.00 25.00 28.00 50.00 150.00 124.0 104.00 27.0 37.0 M6 1.41 HSK A 63 HYDRO 8X200 63 8.00 25.00 28.00 50.00 200.00 174.0 154.00 27.0 37.0 M6 1.68 HSK A 63 HYDRO 10X150 63 10.00 27.00 30.00 50.00 150.00 124.0 104.00 32.0 42.0 M8X1 1.45 HSK A 63 HYDRO 10X200 63 10.00 27.00 30.00 50.00 200.00 174.0 154.00 32.0 42.0 M8X1 1.74 HSK A 63 HYDRO 12X150 63 12.00 29.00 32.00 50.00 150.00 124.0 105.00 37.0 47.0 M10X1 1.49 HSK A 63 HYDRO 12X200 63 12.00 29.00 32.00 50.00 200.00 174.0 155.00 37.0 47.0 M10X1 1.83 DIN 69893 HSK A/E HSK A 63 HYDRO 14X150 63 14.00 30.00 34.00 50.00 150.00 124.0 105.00 37.0 47.0 M10X1 1.58 HSK A 63 HYDRO 14X200 63 14.00 30.00 34.00 50.00 200.00 174.0 155.00 37.0 47.0 M10X1 1.95 HSK A 63 HYDRO 16X150 63 16.00 34.00 38.00 50.00 150.00 124.0 106.50 42.0 52.0 M12X1 1.74 HSK A 63 HYDRO 16X200 63 16.00 34.00 38.00 50.00 200.00 174.0 156.50 42.0 52.0 M12X1 2.17 HSK A 63 HYDRO 18X150 63 18.00 36.00 40.00 50.00 150.00 124.0 107.00 42.0 52.0 M12X1 1.81 HSK A 63 HYDRO 18X200 63 18.00 36.00 40.00 50.00 200.00 174.0 157.00 42.0 52.0 M12X1 2.30 HSK A 63 HYDRO 20X150 63 20.00 38.00 42.00 50.00 150.00 124.0 108.00 42.0 52.0 M12X1 1.89 HSK A 63 HYDRO 20X200 63 20.00 38.00 42.00 50.00 200.00 174.0 158.00 42.0 52.0 M12X1 2.44 HSK A 63 HYDRO 25X150 63 25.00 46.00 50.00 50.00 150.00 124.0 - 48.0 58.0 M16X1 2.56 HSK A 63 HYDRO 25X200 63 25.00 46.00 50.00 50.00 200.00 174.0 - 48.0 58.0 M16X1 3.05 HSK A 100 HYDRO 6X150 100 6.00 23.00 26.00 50.00 150.00 121.0 100.00 27.0 37.0 M5 2.75 HSK A 100 HYDRO 6X200 100 6.00 23.00 26.00 63.00 200.00 171.0 144.00 27.0 37.0 M5 3.19 HSK A 100 HYDRO 8X150 100 8.00 25.00 28.00 63.00 150.00 121.0 94.50 27.0 37.0 M6 3.07 HSK A 100 HYDRO 8X200 100 8.00 25.00 28.00 63.00 200.00 171.0 144.50 27.0 37.0 M6 3.29 HSK A 100 HYDRO 10X150 100 10.00 27.00 30.00 63.00 150.00 121.0 95.00 32.0 42.0 M8X1 3.11 HSK A 100 HYDRO 10X200 100 10.00 27.00 30.00 50.00 200.00 171.0 151.00 32.0 42.0 M8X1 3.12 HSK A 100 HYDRO 12X150 100 12.00 29.00 32.00 63.00 150.00 121.0 95.50 37.0 47.0 M10X1 3.15 HSK A 100 HYDRO 12X200 100 12.00 29.00 32.00 63.00 200.00 171.0 145.50 37.0 47.0 M10X1 3.46 HSK A 100 HYDRO 14X150 100 14.00 30.00 34.00 50.00 150.00 121.0 97.00 37.0 47.0 M10X1 3.05 HSK A 100 HYDRO 14X200 100 14.00 30.00 34.00 50.00 200.00 171.0 147.00 37.0 47.0 M10X1 3.35 HSK A 100 HYDRO 16X150 100 16.00 38.00 38.00 63.00 150.00 121.0 97.50 42.0 52.0 M12X1 3.31 HSK A 100 HYDRO 16X200 100 16.00 38.00 38.00 63.00 200.00 171.0 147.50 42.0 52.0 M12X1 3.73 HSK A 100 HYDRO 18X150 100 18.00 36.00 40.00 50.00 150.00 121.0 107.00 42.0 52.0 M12X1 3.22 HSK A 100 HYDRO 18X200 100 18.00 36.00 40.00 63.00 200.00 171.0 148.00 42.0 52.0 M12X1 3.86 HSK A 100 HYDRO 20X150 100 20.00 38.00 42.00 63.00 150.00 121.0 99.00 42.0 52.0 M12X1 3.46 HSK A 100 HYDRO 20X200 100 20.00 38.00 42.00 63.00 200.00 171.0 149.00 42.0 52.0 M12X1 4.01 HSK A 100 HYDRO 25X150 100 25.00 46.00 50.00 50.00 150.00 121.0 - 48.0 58.0 M16X1 3.65 HSK A 100 HYDRO 25X200 100 25.00 46.00 50.00 63.00 200.00 171.0 136.00 48.0 58.0 M16X1 4.67 HSK A 100 HYDRO 32X200 100 32.00 56.00 60.00 60.00 200.00 171.0 - 52.0 62.0 M16X1 5.36 • Chucking forces will be reduced by 25% if reduction sleeves are used. • A cooling tube must be used with coolant through HSK spindles (ordered separately). • Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately). • Clamping wrench (wrench HYDRO HEX4) and test bar should be ordered separately. 988 965 846 868 ISCAR
