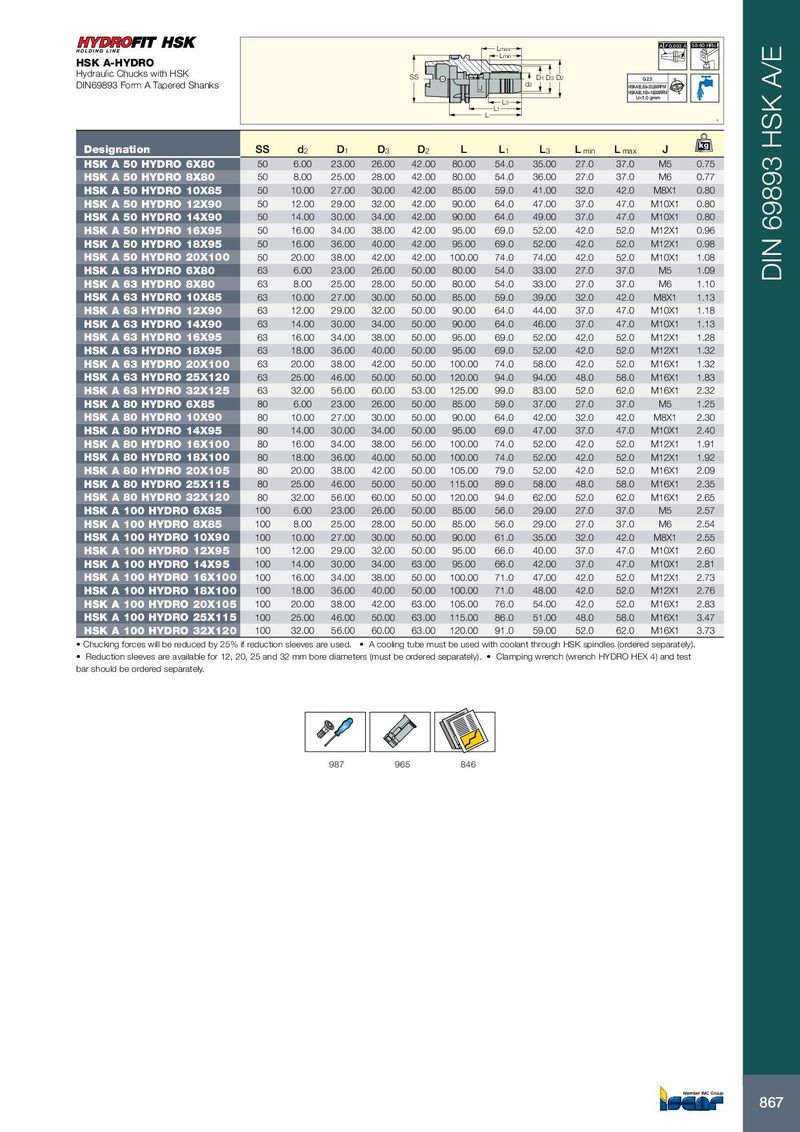

Lmax A 0.003 A 58-60 HRc Lmin HSK A-HYDRO Hydraulic Chucks with HSK SS D1 D3 D2 G2.5 DIN69893 Form A Tapered Shanks J d2 HSK A50, 63= 25,000RPM HSK A80, 100= 18,000RPM U<1.0 gmm L3 L1 L . kg Designation SS d 2 D 1 D 3 D 2 L L 1 L 3 L min L max J HSK A 50 HYDRO 6X80 50 6.00 23.00 26.00 42.00 80.00 54.0 35.00 27.0 37.0 M5 0.75 HSK A 50 HYDRO 8X80 50 8.00 25.00 28.00 42.00 80.00 54.0 36.00 27.0 37.0 M6 0.77 HSK A 50 HYDRO 10X85 50 10.00 27.00 30.00 42.00 85.00 59.0 41.00 32.0 42.0 M8X1 0.80 HSK A 50 HYDRO 12X90 50 12.00 29.00 32.00 42.00 90.00 64.0 47.00 37.0 47.0 M10X1 0.80 HSK A 50 HYDRO 14X90 50 14.00 30.00 34.00 42.00 90.00 64.0 49.00 37.0 47.0 M10X1 0.80 HSK A 50 HYDRO 16X95 50 16.00 34.00 38.00 42.00 95.00 69.0 52.00 42.0 52.0 M12X1 0.96 HSK A 50 HYDRO 18X95 50 16.00 36.00 40.00 42.00 95.00 69.0 52.00 42.0 52.0 M12X1 0.98 HSK A 50 HYDRO 20X100 50 20.00 38.00 42.00 42.00 100.00 74.0 74.00 42.0 52.0 M10X1 1.08 HSK A 63 HYDRO 6X80 63 6.00 23.00 26.00 50.00 80.00 54.0 33.00 27.0 37.0 M5 1.09 DIN 69893 HSK A/E HSK A 63 HYDRO 8X80 63 8.00 25.00 28.00 50.00 80.00 54.0 33.00 27.0 37.0 M6 1.10 HSK A 63 HYDRO 10X85 63 10.00 27.00 30.00 50.00 85.00 59.0 39.00 32.0 42.0 M8X1 1.13 HSK A 63 HYDRO 12X90 63 12.00 29.00 32.00 50.00 90.00 64.0 44.00 37.0 47.0 M10X1 1.18 HSK A 63 HYDRO 14X90 63 14.00 30.00 34.00 50.00 90.00 64.0 46.00 37.0 47.0 M10X1 1.13 HSK A 63 HYDRO 16X95 63 16.00 34.00 38.00 50.00 95.00 69.0 52.00 42.0 52.0 M12X1 1.28 HSK A 63 HYDRO 18X95 63 18.00 36.00 40.00 50.00 95.00 69.0 52.00 42.0 52.0 M12X1 1.32 HSK A 63 HYDRO 20X100 63 20.00 38.00 42.00 50.00 100.00 74.0 58.00 42.0 52.0 M16X1 1.32 HSK A 63 HYDRO 25X120 63 25.00 46.00 50.00 50.00 120.00 94.0 94.00 48.0 58.0 M16X1 1.83 HSK A 63 HYDRO 32X125 63 32.00 56.00 60.00 53.00 125.00 99.0 83.00 52.0 62.0 M16X1 2.32 HSK A 80 HYDRO 6X85 80 6.00 23.00 26.00 50.00 85.00 59.0 37.00 27.0 37.0 M5 1.25 HSK A 80 HYDRO 10X90 80 10.00 27.00 30.00 50.00 90.00 64.0 42.00 32.0 42.0 M8X1 2.30 HSK A 80 HYDRO 14X95 80 14.00 30.00 34.00 50.00 95.00 69.0 47.00 37.0 47.0 M10X1 2.40 HSK A 80 HYDRO 16X100 80 16.00 34.00 38.00 56.00 100.00 74.0 52.00 42.0 52.0 M12X1 1.91 HSK A 80 HYDRO 18X100 80 18.00 36.00 40.00 50.00 100.00 74.0 52.00 42.0 52.0 M12X1 1.92 HSK A 80 HYDRO 20X105 80 20.00 38.00 42.00 50.00 105.00 79.0 52.00 42.0 52.0 M16X1 2.09 HSK A 80 HYDRO 25X115 80 25.00 46.00 50.00 50.00 115.00 89.0 58.00 48.0 58.0 M16X1 2.35 HSK A 80 HYDRO 32X120 80 32.00 56.00 60.00 50.00 120.00 94.0 62.00 52.0 62.0 M16X1 2.65 HSK A 100 HYDRO 6X85 100 6.00 23.00 26.00 50.00 85.00 56.0 29.00 27.0 37.0 M5 2.57 HSK A 100 HYDRO 8X85 100 8.00 25.00 28.00 50.00 85.00 56.0 29.00 27.0 37.0 M6 2.54 HSK A 100 HYDRO 10X90 100 10.00 27.00 30.00 50.00 90.00 61.0 35.00 32.0 42.0 M8X1 2.55 HSK A 100 HYDRO 12X95 100 12.00 29.00 32.00 50.00 95.00 66.0 40.00 37.0 47.0 M10X1 2.60 HSK A 100 HYDRO 14X95 100 14.00 30.00 34.00 63.00 95.00 66.0 42.00 37.0 47.0 M10X1 2.81 HSK A 100 HYDRO 16X100 100 16.00 34.00 38.00 50.00 100.00 71.0 47.00 42.0 52.0 M12X1 2.73 HSK A 100 HYDRO 18X100 100 18.00 36.00 40.00 50.00 100.00 71.0 48.00 42.0 52.0 M12X1 2.76 HSK A 100 HYDRO 20X105 100 20.00 38.00 42.00 63.00 105.00 76.0 54.00 42.0 52.0 M16X1 2.83 HSK A 100 HYDRO 25X115 100 25.00 46.00 50.00 63.00 115.00 86.0 51.00 48.0 58.0 M16X1 3.47 HSK A 100 HYDRO 32X120 100 32.00 56.00 60.00 63.00 120.00 91.0 59.00 52.0 62.0 M16X1 3.73 • Chucking forces will be reduced by 25% if reduction sleeves are used. • A cooling tube must be used with coolant through HSK spindles (ordered separately). • Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately). • Clamping wrench (wrench HYDRO HEX 4) and test bar should be ordered separately. 987 965 846 867
