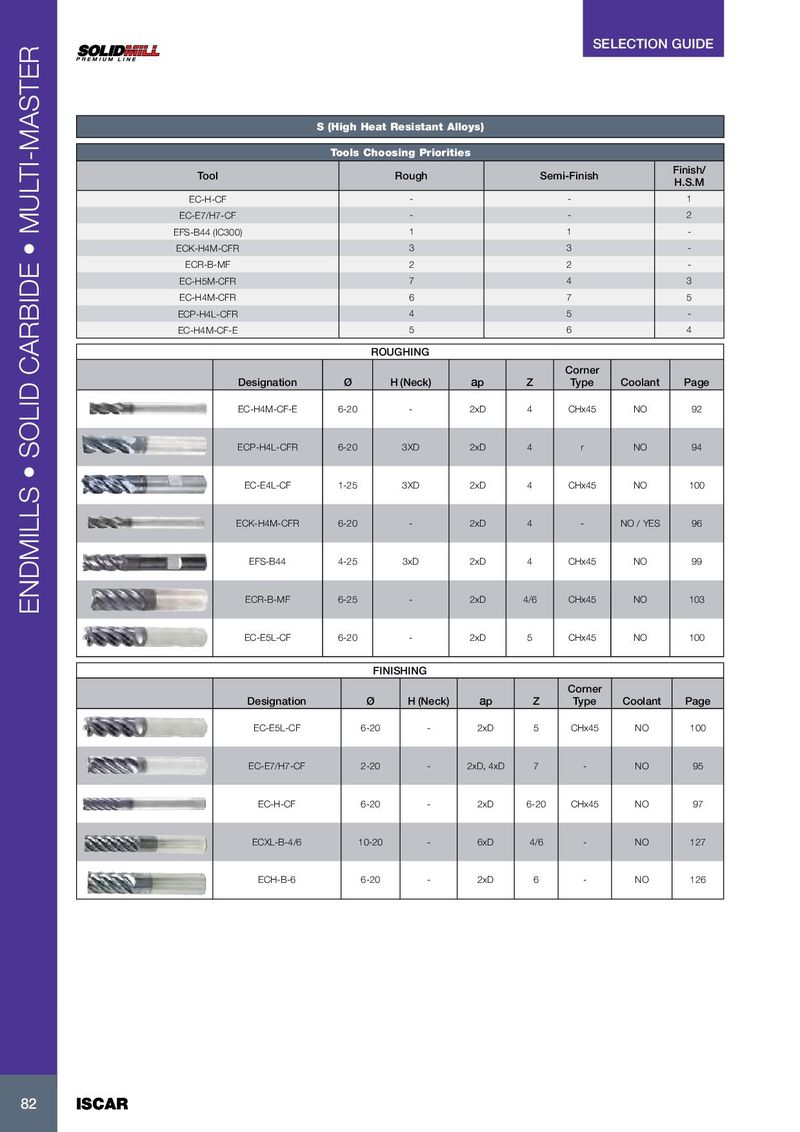

	S	(High Heat Resistant A Tools Choosing Priorit	lloys) ies				Fiih/
Tool		Rough		Se	mi-Finish		ns H.S.M
EC-H-C	F	-			-		1
EC-E7/H7	-CF	-			-		2
EFS-B44 (IC	300)	1			1		-
ECK-H4M-	CFR	3			3		-
ECR-B-M	F	2			2		-
EC-H5M-C	FR	7			4		3
EC-H4M-C	FR	6			7		5
ECP-H4L-	CFR	4			5		-
EC-H4M-C	F-E	5			6		4
		ROUGHING			Corner
	Designation	Ø H (Neck)	ap	Z	Type	Coolant	Page
	EC-H4M-CF-E	6-20 -	2xD	4	CHx45	NO	92
	ECP-H4L-CFR	6-20 3XD	2xD	4	r	NO	94
	EC-E4L-CF	1-25 3XD	2xD	4	CHx45	NO	100
	ECK-H4M-CFR	6-20 -	2xD	4	-	NO / YES	96
	EFS-B44	4-25 3xD	2xD	4	CHx45	NO	99
	ECR-B-MF	6-25 -	2xD	4/6	CHx45	NO	103
	EC-E5L-CF	6-20 -	2xD	5	CHx45	NO	100
		FINISHING			Corner
	Designation	Ø H (Neck)	ap	Z	Type	Coolant	Page
	EC-E5L-CF	6-20 -	2xD	5	CHx45	NO	100
	EC-E7/H7-CF	2-20 -	2xD,4xD	7	-	NO	95
	EC-H-CF	6-20 -	2xD	6-20	CHx45	NO	97
	ECXL-B-4/6	10-20 -	6xD	4/6	-	NO	127
	ECH-B-6	6-20 -	2xD	6	-	NO	126
