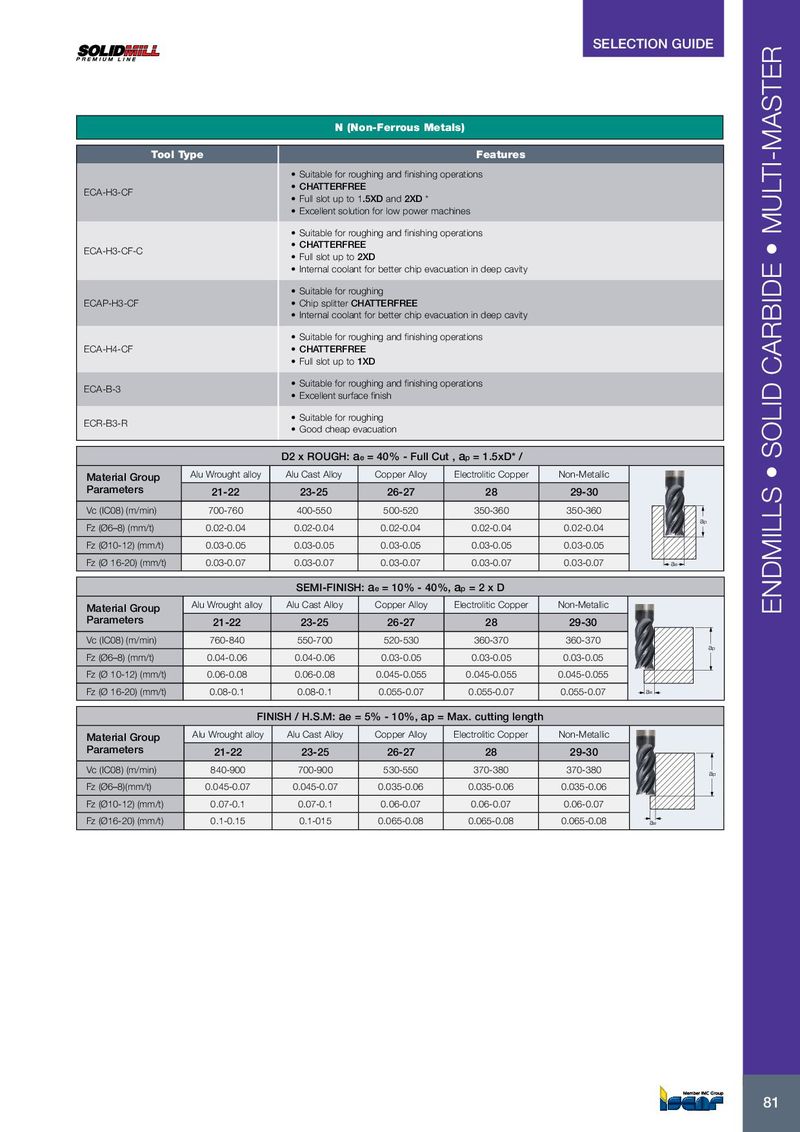

| Tool | Type | N (N | on-Ferrous Me | tals) Features | ||
| ECA-H3-CF ECA-H3-CF-C | • Suitable for ro •CHATTERFR • Full slot up to • Excellent solut • Suitable for ro •CHATTERFR • Full slot up to | ughing and finishing EE 1.5XDand2XD ion for low power m ughing and finishing EE 2XD | operations achines operations | |||
| ECAP-H3-CF ECA-H4-CF ECA-B-3 ECR-B3-R | • Internal coolan • Suitable for ro • Chip splitterC • Internal coolan • Suitable for ro •CHATTERFR • Full slot up to • Suitable for ro • Excellent surfa • Suitable for ro • Good cheap e D2 x ROUGH:a | t for better chip eva ughing HATTERFREE t for better chip eva ughing and finishing EE 1XD ughing and finishing ce finish ughing vacuation e= 40% - Full C | cuation in deep cavity cuation in deep cavity operations operations ut ,ap= 1.5xD / | |||
| Material Group | Alu Wrought alloy | Alu Cast Alloy | Copper Alloy | Electrolitic Copper | Non-Metallic | |
| Parameters | 21-22 | 23-25 | 26-27 | 28 | 29-30 | |
| Vc (IC08) (m/min) | 700-760 | 400-550 | 500-520 | 350-360 | 350-360 | |
| Fz (Ø6–8) (mm/t) | 0.02-0.04 | 0.02-0.04 | 0.02-0.04 | 0.02-0.04 | 0.02-0.04 | ap |
| Fz (Ø10-12) (mm/t) | 0.03-0.05 | 0.03-0.05 | 0.03-0.05 | 0.03-0.05 | 0.03-0.05 | |
| Fz (Ø 16-20) (mm/t) | 003-007 | 003-007 | 003-007 | 003-007 | 003-007 | ae |
| .. | .. SEMI-FINIS | .. H:ae= 10% - 40 | .. %,ap= 2 x D | .. | ||
| Material Group | Alu Wrought alloy | Alu Cast Alloy | Copper Alloy | Electrolitic Copper | Non-Metallic | |
| Parameters | 21-22 | 23-25 | 26-27 | 28 | 29-30 | |
| Vc (IC08) (m/min) | 760-840 | 550-700 | 520-530 | 360-370 | 360-370 | a |
| Fz (Ø6–8) (mm/t) | 0.04-0.06 | 0.04-0.06 | 0.03-0.05 | 0.03-0.05 | 0.03-0.05 | p |
| Fz (Ø 10-12) (mm/t) | 0.06-0.08 | 0.06-0.08 | 0.045-0.055 | 0.045-0.055 | 0.045-0.055 | |
| Fz (Ø 16-20) (mm/t) | 0.08-0.1 | 0.08-0.1 | 0.055-0.07 | 0.055-0.07 | 0.055-0.07 | ae |
| FIN | ISH / H.S.M:ae | = 5% - 10%,ap | = Max. cutting length | |||
| Material Group | Alu Wrought alloy | Alu Cast Alloy | Copper Alloy | Electrolitic Copper | Non-Metallic | |
| Parameters | 21-22 | 23-25 | 26-27 | 28 | 29-30 | |
| Vc (IC08) (m/min) | 840-900 | 700-900 | 530-550 | 370-380 | 370-380 | ap |
| Fz (Ø6–8)(mm/t) | 0.045-0.07 | 0.045-0.07 | 0.035-0.06 | 0.035-0.06 | 0.035-0.06 | |
| Fz (Ø10-12) (mm/t) | 0.07-0.1 | 0.07-0.1 | 0.06-0.07 | 0.06-0.07 | 0.06-0.07 | |
| Fz (Ø16-20) (mm/t) | 0.1-0.15 | 0.1-015 | 0.065-0.08 | 0.065-0.08 | 0.065-0.08 | ae |
