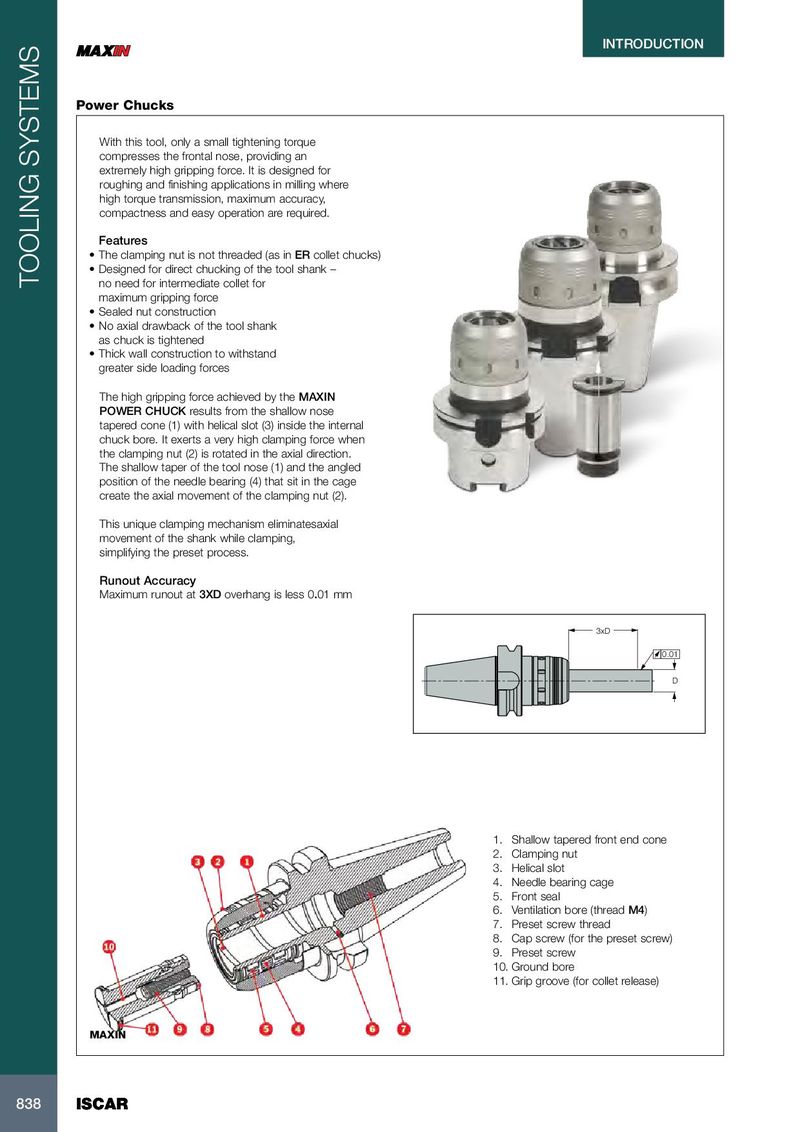

INTRODUCTION INTRODUCTION Power Chucks With this tool, only a small tightening torque compresses the frontal nose, providing an extremely high gripping force. It is designed for roughing and finishing applications in milling where high torque transmission, maximum accuracy, compactness and easy operation are required. Features • The clamping nut is not threaded (as in ER collet chucks) • Designed for direct chucking of the tool shank – TOOLING SYSTEMS no need for intermediate collet for maximum gripping force • Sealed nut construction • No axial drawback of the tool shank as chuck is tightened • Thick wall construction to withstand greater side loading forces The high gripping force achieved by the MAXIN POWER CHUCK results from the shallow nose tapered cone (1) with helical slot (3) inside the internal chuck bore. It exerts a very high clamping force when the clamping nut (2) is rotated in the axial direction. The shallow taper of the tool nose (1) and the angled position of the needle bearing (4) that sit in the cage create the axial movement of the clamping nut (2). This unique clamping mechanism eliminatesaxial movement of the shank while clamping, simplifying the preset process. Runout Accuracy Maximum runout at 3XD overhang is less 0.01 mm 3xD 0.01 D 1. Shallow tapered front end cone 2. Clamping nut 3. Helical slot 4. Needle bearing cage 5. Front seal 6. Ventilation bore (thread M4) 7. Preset screw thread 8. Cap screw (for the preset screw) 9. Preset screw 10. Ground bore 11. Grip groove (for collet release) MAXIN 838 838 ISCAR ISCAR
