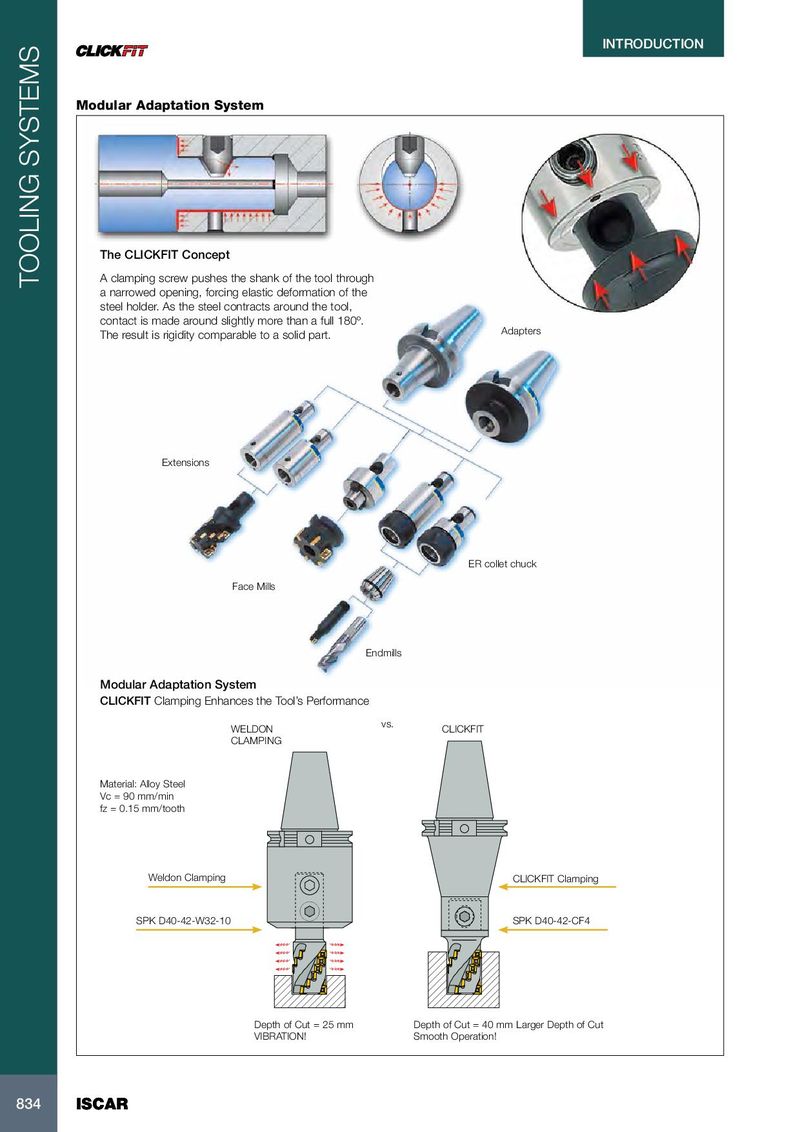

INTRODUCTION Modular Adaptation System The CLICKFIT Concept A clamping screw pushes the shank of the tool through TOOLING SYSTEMS a narrowed opening, forcing elastic deformation of the steel holder. As the steel contracts around the tool, contact is made around slightly more than a full 180º. The result is rigidity comparable to a solid part. Adapters Extensions ER collet chuck Face Mills Endmills Modular Adaptation System CLICKFIT Clamping Enhances the Tool’s Performance vs. WELDON CLICKFIT CLAMPING Material: Alloy Steel Vc = 90 mm/min fz = 0.15 mm/tooth Weldon Clamping CLICKFIT Clamping SPK D40-42-W32-10 SPK D40-42-CF4 Depth of Cut = 25 mm Depth of Cut = 40 mm Larger Depth of Cut VIBRATION! Smooth Operation! 834 834 ISCAR ISCAR
