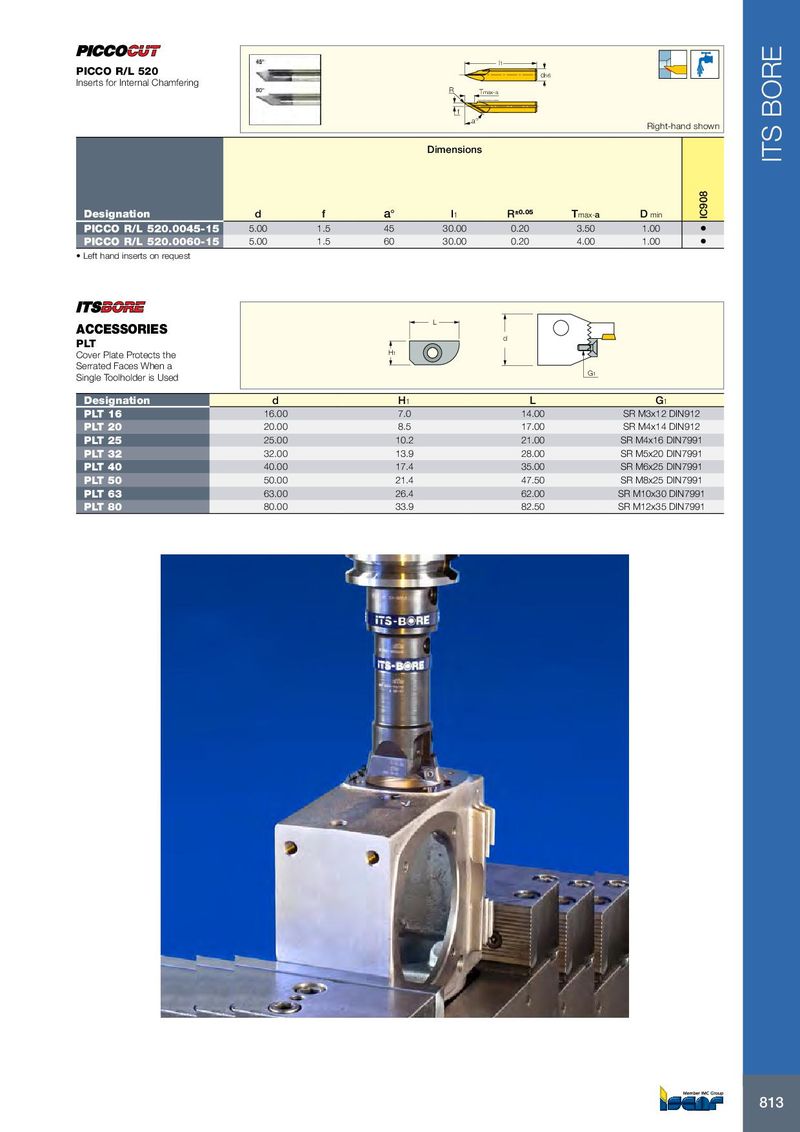

l1 PICCO R/L 520 dh6 Inserts for Internal Chamfering R Tmax-a f a° Right-hand shown Dimensions ITS BORE Designation d f a° l 1 R ±0.05 T max- a D min IC908 PICCO R/L 520.0045-15 5.00 1.5 45 30.00 0.20 3.50 1.00 • PICCO R/L 520.0060-15 5.00 1.5 60 30.00 0.20 4.00 1.00 • • Left hand inserts on request L ACCESSORIES d PLT Cover Plate Protects the H1 Serrated Faces When a G1 Single Toolholder is Used Designation d H 1 L G 1 PLT 16 16.00 7.0 14.00 SR M3x12 DIN912 PLT 20 20.00 8.5 17.00 SR M4x14 DIN912 PLT 25 25.00 10.2 21.00 SR M4x16 DIN7991 PLT 32 32.00 13.9 28.00 SR M5x20 DIN7991 PLT 40 40.00 17.4 35.00 SR M6x25 DIN7991 PLT 50 50.00 21.4 47.50 SR M8x25 DIN7991 PLT 63 63.00 26.4 62.00 SR M10x30 DIN7991 PLT 80 80.00 33.9 82.50 SR M12x35 DIN7991 813
