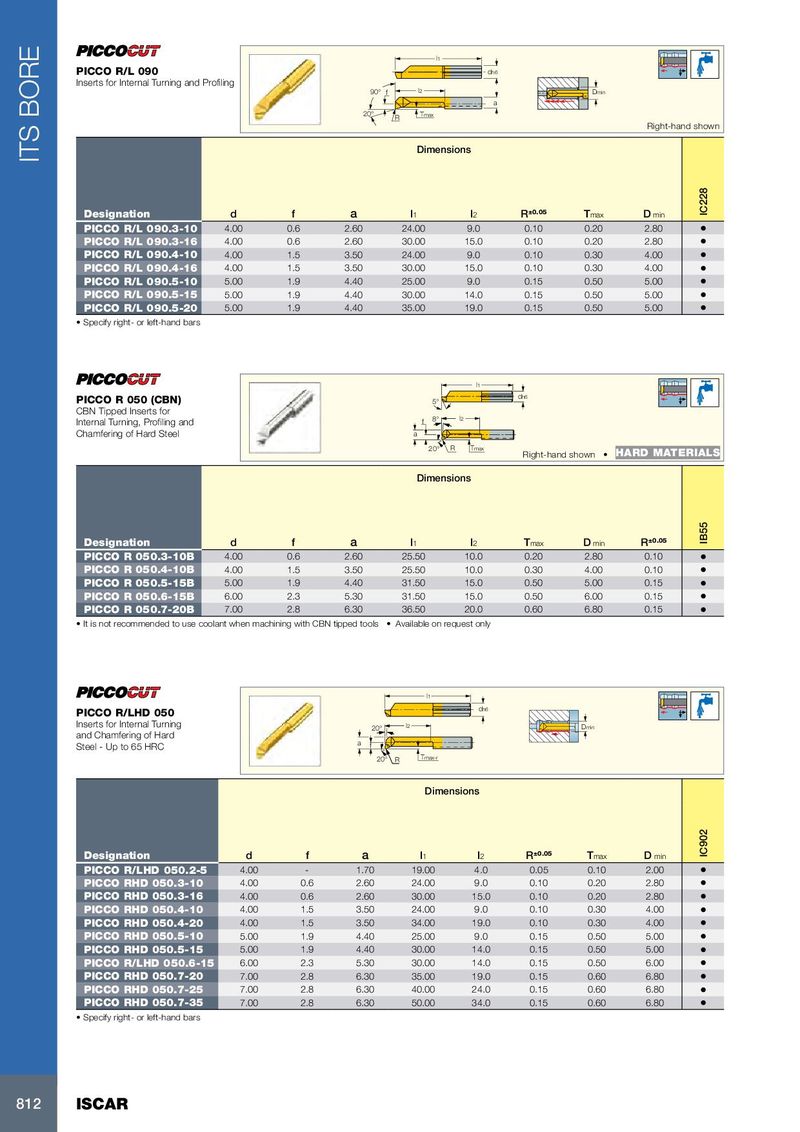

l1 PICCO R/L 090 dh6 Inserts for Internal Turning and Profiling 90° f l2 Dmin a 20° R Tmax Right-hand shown Dimensions ITS BORE Designation d f a l 1 l 2 R ±0.05 T max D min IC228 PICCO R/L 090.3-10 4.00 0.6 2.60 24.00 9.0 0.10 0.20 2.80 • PICCO R/L 090.3-16 4.00 0.6 2.60 30.00 15.0 0.10 0.20 2.80 • PICCO R/L 090.4-10 4.00 1.5 3.50 24.00 9.0 0.10 0.30 4.00 • PICCO R/L 090.4-16 4.00 1.5 3.50 30.00 15.0 0.10 0.30 4.00 • PICCO R/L 090.5-10 5.00 1.9 4.40 25.00 9.0 0.15 0.50 5.00 • PICCO R/L 090.5-15 5.00 1.9 4.40 30.00 14.0 0.15 0.50 5.00 • PICCO R/L 090.5-20 5.00 1.9 4.40 35.00 19.0 0.15 0.50 5.00 • • Specify right- or left-hand bars l1 dh6 PICCO R 050 (CBN) 5° CBN Tipped Inserts for Internal Turning, Profiling and f 8° l 2 Chamfering of Hard Steel a 20° R Tmax Right-hand shown • HARD MATERIALS Dimensions Designation d f a l 1 l 2 T max D min R ±0.05 IB55 PICCO R 050.3-10B 4.00 0.6 2.60 25.50 10.0 0.20 2.80 0.10 • PICCO R 050.4-10B 4.00 1.5 3.50 25.50 10.0 0.30 4.00 0.10 • PICCO R 050.5-15B 5.00 1.9 4.40 31.50 15.0 0.50 5.00 0.15 • PICCO R 050.6-15B 6.00 2.3 5.30 31.50 15.0 0.50 6.00 0.15 • PICCO R 050.7-20B 7.00 2.8 6.30 36.50 20.0 0.60 6.80 0.15 • • It is not recommended to use coolant when machining with CBN tipped tools • Available on request only l1 dh6 PICCO R/LHD 050 Inserts for Internal Turning 20° l2 Dmin and Chamfering of Hard a Steel - Up to 65 HRC f 20° R Tmax-r Dimensions Designation d f a l 1 l 2 R ±0.05 T max D min IC902 PICCO R/LHD 050.2-5 4.00 - 1.70 19.00 4.0 0.05 0.10 2.00 • PICCO RHD 050.3-10 4.00 0.6 2.60 24.00 9.0 0.10 0.20 2.80 • PICCO RHD 050.3-16 4.00 0.6 2.60 30.00 15.0 0.10 0.20 2.80 • PICCO RHD 050.4-10 4.00 1.5 3.50 24.00 9.0 0.10 0.30 4.00 • PICCO RHD 050.4-20 4.00 1.5 3.50 34.00 19.0 0.10 0.30 4.00 • PICCO RHD 050.5-10 5.00 1.9 4.40 25.00 9.0 0.15 0.50 5.00 • PICCO RHD 050.5-15 5.00 1.9 4.40 30.00 14.0 0.15 0.50 5.00 • PICCO R/LHD 050.6-15 6.00 2.3 5.30 30.00 14.0 0.15 0.50 6.00 • PICCO RHD 050.7-20 7.00 2.8 6.30 35.00 19.0 0.15 0.60 6.80 • PICCO RHD 050.7-25 7.00 2.8 6.30 40.00 24.0 0.15 0.60 6.80 • PICCO RHD 050.7-35 7.00 2.8 6.30 50.00 34.0 0.15 0.60 6.80 • • Specify right- or left-hand bars 812 ISCAR
