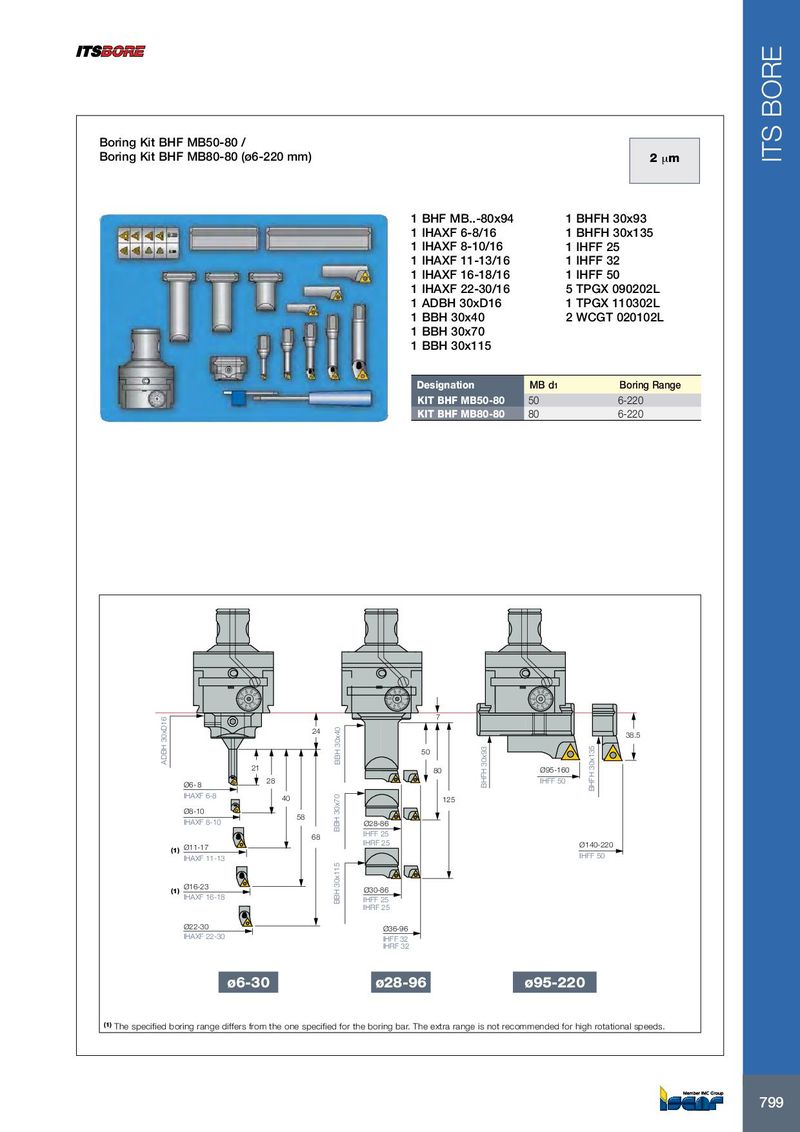

Boring Kit BHF MB50-80 / Boring Kit BHF MB80-80 (ø6-220 mm) 2 µm ITS BORE 1 BHF MB..-80x94 1 BHFH 30x93 1 IHAXF 6-8/16 1 BHFH 30x135 1 IHAXF 8-10/16 1 IHFF 25 1 IHAXF 11-13/16 1 IHFF 32 1 IHAXF 16-18/16 1 IHFF 50 1 IHAXF 22-30/16 5 TPGX 090202L 1 ADBH 30xD16 1 TPGX 110302L 1 BBH 30x40 2 WCGT 020102L 1 BBH 30x70 1 BBH 30x115 Designation MB d1 Boring Range KIT BHF MB50-80 50 6-220 KIT BHF MB80-80 80 6-220 8 9 0 9 0 8 9 0 6 7 1 5 6 7 8 1 6 7 1 4 3 2 5 4 3 2 5 4 3 2 7 24 38.5 50 ADBH 30xD16 BBH 30x40 21 80 Ø95-160 Ø6- 8 28 IHFF 50 BHFH 30x93 BHFH 30x135 IHAXF 6-8 40 125 Ø8-10 58 IHAXF 8-10 Ø28-86 BBH 30x70 68 IHFF 25 IHRF 25 (1) Ø11-17 Ø140-220 IHAXF 11-13 IHFF 50 (1) Ø16-23 Ø30-86 IHAXF 16-18 BBH 30x115 IHFF 25 IHRF 25 Ø22-30 Ø36-96 IHAXF 22-30 IHFF 32 IHRF 32 ø6-30 ø28-96 ø95-220 (1) The specified boring range differs from the one specified for the boring bar. The extra range is not recommended for high rotational speeds. 799 799
