Каталог Iscar вращающийся инструмент 2017 - страница 802

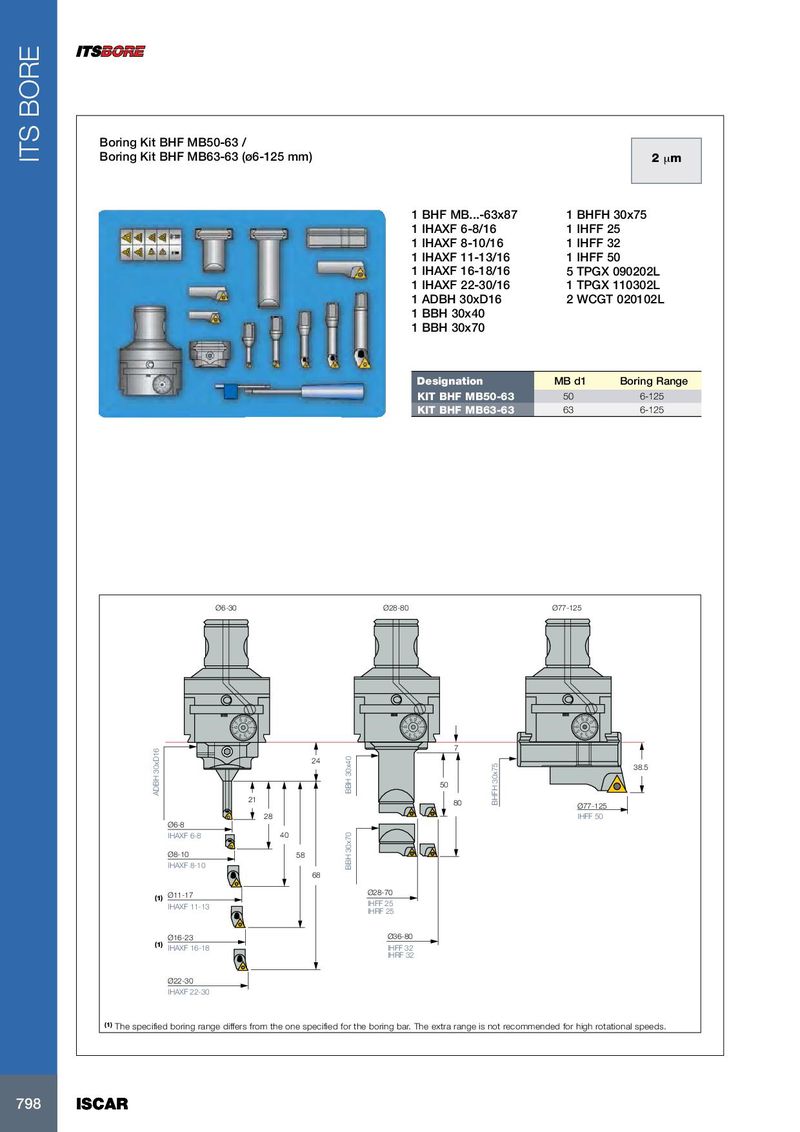

Boring Kit BHF MB50-63 / ITS BORE Boring Kit BHF MB63-63 (ø6-125 mm) 2 µm 1 BHF MB...-63x87 1 BHFH 30x75 1 IHAXF 6-8/16 1 IHFF 25 1 IHAXF 8-10/16 1 IHFF 32 1 IHAXF 11-13/16 1 IHFF 50 1 IHAXF 16-18/16 5 TPGX 090202L 1 IHAXF 22-30/16 1 TPGX 110302L 1 ADBH 30xD16 2 WCGT 020102L 1 BBH 30x40 1 BBH 30x70 Designation MB d1 Boring Range KIT BHF MB50-63 50 6-125 KIT BHF MB63-63 63 6-125 Ø6-30 Ø28-80 Ø77-125 8 9 0 0 6 7 1 6 7 8 9 1 8 9 0 5 4 3 2 5 6 7 1 4 3 2 5 4 3 2 7 24 38.5 50 ADBH 30xD16 BBH 30x40 21 80 BHFH 30x75 Ø77-125 28 IHFF 50 Ø6-8 IHAXF 6-8 40 Ø8-10 58 IHAXF 8-10 BBH 30x70 68 Ø11-17 Ø28-70 (1) IHAXF 11-13 IHFF 25 IHRF 25 Ø16-23 Ø36-80 (1) IHAXF 16-18 IHFF 32 IHRF 32 ø6-30 ø28-80 Ø22-30 ø77-125 IHAXF 22-30 (1) The specified boring range differs from the one specified for the boring bar. The extra range is not recommended for high rotational speeds. 798 798 ISCAR ISCAR
