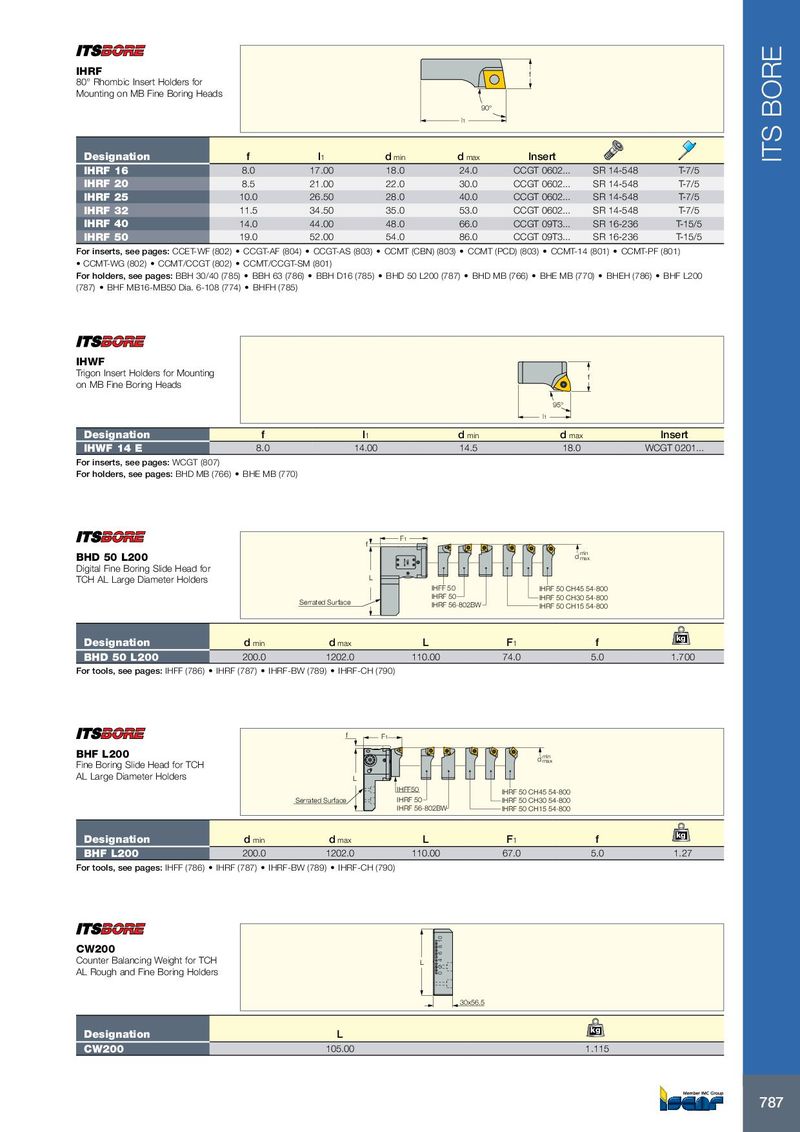

IHRF f 80° Rhombic Insert Holders for Mounting on MB Fine Boring Heads 90° l1 Designation f l 1 d min d max Insert ITS BORE IHRF 16 8.0 17.00 18.0 24.0 CCGT 0602... SR 14-548 T-7/5 IHRF 20 8.5 21.00 22.0 30.0 CCGT 0602... SR 14-548 T-7/5 IHRF 25 10.0 26.50 28.0 40.0 CCGT 0602... SR 14-548 T-7/5 IHRF 32 11.5 34.50 35.0 53.0 CCGT 0602... SR 14-548 T-7/5 IHRF 40 14.0 44.00 48.0 66.0 CCGT 09T3... SR 16-236 T-15/5 IHRF 50 19.0 52.00 54.0 86.0 CCGT 09T3... SR 16-236 T-15/5 For inserts, see pages: CCET-WF (802) • CCGT-AF (804) • CCGT-AS (803) • CCMT (CBN) (803) • CCMT (PCD) (803) • CCMT-14 (801) • CCMT-PF (801) • CCMT-WG (802) • CCMT/CCGT (802) • CCMT/CCGT-SM (801) For holders, see pages: BBH 30/40 (785) • BBH 63 (786) • BBH D16 (785) • BHD 50 L200 (787) • BHD MB (766) • BHE MB (770) • BHEH (786) • BHF L200 (787) • BHF MB16-MB50 Dia. 6-108 (774) • BHFH (785) IHWF Trigon Insert Holders for Mounting f on MB Fine Boring Heads 95° l1 Designation f l 1 d min d max Insert IHWF 14 E 8.0 14.00 14.5 18.0 WCGT 0201... For inserts, see pages: WCGT (807) For holders, see pages: BHD MB (766) • BHE MB (770) F1 f BHD 50 L200 d min max Digital Fine Boring Slide Head for TCH AL Large Diameter Holders L IHFF 50 IHRF 50 CH45 54-800 IHRF 50 IHRF 50 CH30 54-800 Serrated Surface IHRF 56-802BW IHRF 50 CH15 54-800 kg Designation d min d max L F 1 f BHD 50 L200 200.0 1202.0 110.00 74.0 5.0 1.700 For tools, see pages: IHFF (786) • IHRF (787) • IHRF-BW (789) • IHRF-CH (790) f F1 BHF L200 d min max Fine Boring Slide Head for TCH AL Large Diameter Holders L IHFF50 IHRF 50 CH45 54-800 Serrated Surface IHRF 50 IHRF 50 CH30 54-800 IHRF 56-802BW IHRF 50 CH15 54-800 kg Designation d min d max L F 1 f BHF L200 200.0 1202.0 110.00 67.0 5.0 1.27 For tools, see pages: IHFF (786) • IHRF (787) • IHRF-BW (789) • IHRF-CH (790) 8 10 CW200 6 Counter Balancing Weight for TCH L 4 2 AL Rough and Fine Boring Holders 0 30x56.5 kg Designation L CW200 105.00 1.115 787
