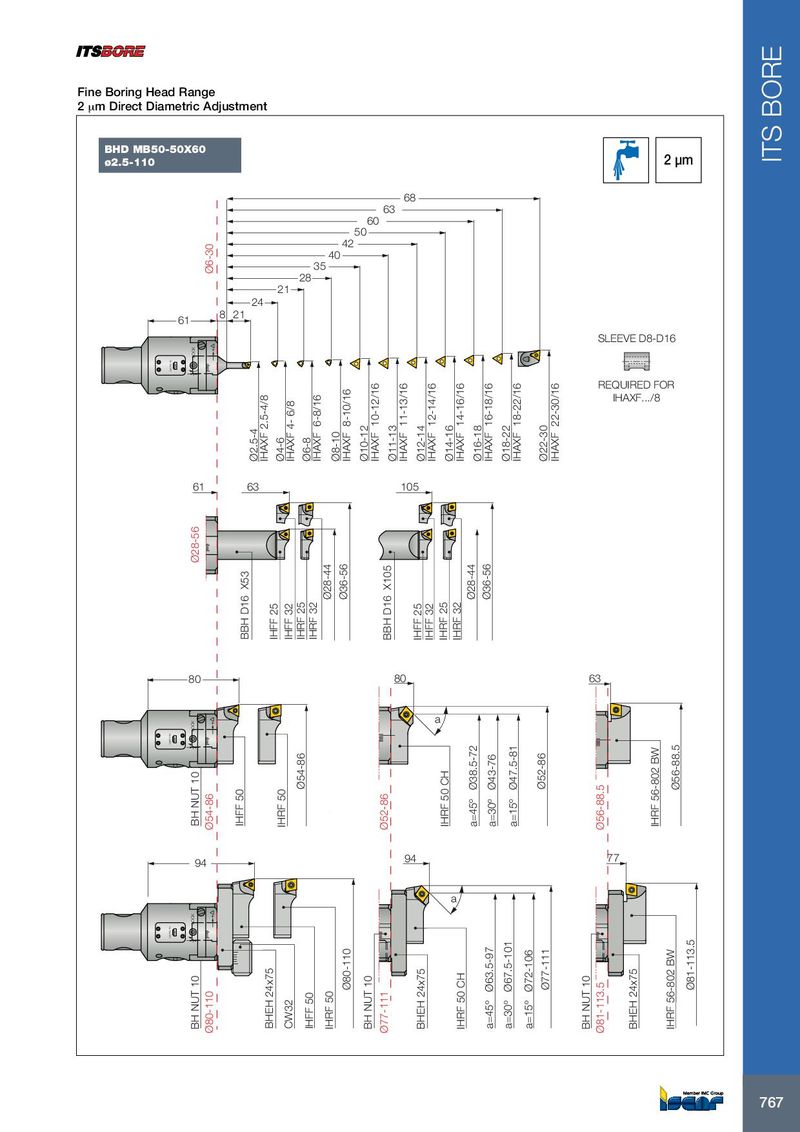

Fine Boring Head Range 2 µm Direct Diametric Adjustment BHD MB50-50X60 ø2.5-110 2 µm ITS BORE 68 63 60 50 42 40 Ø6-30 35 28 21 24 8 21 61 SLEEVE D8-D16 LOCK BATTERY SR44 REQUIRED FOR IHAXF.../8 Ø2.5-4 IHAXF 2.5-4/8 Ø4-6 IHAXF 4- 6/8 Ø6-8 IHAXF 6-8/16 Ø8-10 IHAXF 8-10/16 Ø10-12 IHAXF 10-12/16 Ø11-13 IHAXF 11-13/16 Ø12-14 IHAXF 12-14/16 Ø14-16 IHAXF 14-16/16 Ø16-18 IHAXF 16-18/16 Ø18-22 IHAXF 18-22/16 Ø22-30 IHAXF 22-30/16 61 63 105 Ø28-56 Ø28-44 Ø36-56 Ø28-44 Ø36-56 BBH D16 X53 IHFF 25 IHFF 32 IHRF 25 IHRF 32 BBH D16 X105 IHFF 25 IHFF 32 IHRF 25 IHRF 32 80 80 63 a LOCK BATTERY SR44 Ø54-86 Ø52-86 Ø56-88.5 BH NUT 10 Ø54-86 IHFF 50 IHRF 50 Ø52-86 IHRF 50 CH a=45º Ø38.5-72 a=30º Ø43-76 a=15º Ø47.5-81 Ø56-88.5 IHRF 56-802 BW 94 77 94 a LOCK BATTERY SR44 Ø80-110 Ø77-111 Ø81-113.5 BH NUT 10 BHEH 24x75 CW32 IHFF 50 Ø80-110 IHRF 50 BH NUT 10 a=30º Ø67.5-101 a=15º Ø72-106 Ø77-111 BHEH 24x75 IHRF 50 CH a=45º Ø63.5-97 BH NUT 10 Ø81-113.5 BHEH 24x75 IHRF 56-802 BW 767 767
