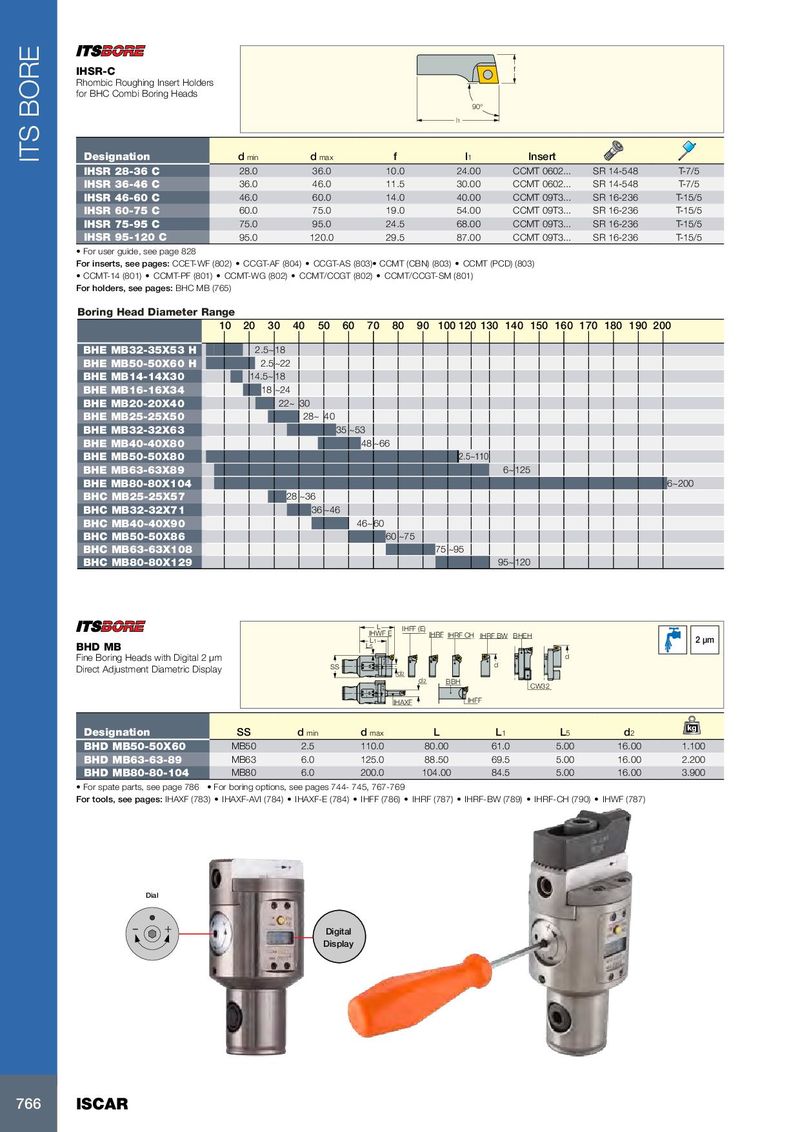

IHSR-C f Rhombic Roughing Insert Holders for BHC Combi Boring Heads 90° l1 ITS BORE Designation d min d max f l 1 Insert IHSR 28-36 C 28.0 36.0 10.0 24.00 CCMT 0602... SR 14-548 T-7/5 IHSR 36-46 C 36.0 46.0 11.5 30.00 CCMT 0602... SR 14-548 T-7/5 IHSR 46-60 C 46.0 60.0 14.0 40.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 60-75 C 60.0 75.0 19.0 54.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 75-95 C 75.0 95.0 24.5 68.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 95-120 C 95.0 120.0 29.5 87.00 CCMT 09T3... SR 16-236 T-15/5 • For user guide, see page 828 For inserts, see pages: CCET-WF (802) • CCGT-AF (804) • CCGT-AS (803)• CCMT (CBN) (803) • CCMT (PCD) (803) • CCMT-14 (801) • CCMT-PF (801) • CCMT-WG (802) • CCMT/CCGT (802) • CCMT/CCGT-SM (801) For holders, see pages: BHC MB (765) Boring Head Diameter Range 10 20 30 40 50 60 70 80 90 100 120 130 140 150 160 170 180 190 200 BHE MB32-35X53 H 2.5~18 BHE MB50-50X60 H 2.5~22 BHE MB14-14X30 14.5~ 18 BHE MB16-16X34 18 ~24 BHE MB20-20X40 22~ 30 BHE MB25-25X50 28~ 40 BHE MB32-32X63 35 ~53 BHE MB40-40X80 48 ~66 BHE MB50-50X80 2.5~110 BHE MB63-63X89 6~125 BHE MB80-80X104 6~200 BHC MB25-25X57 28 ~36 BHC MB32-32X71 36 ~46 BHC MB40-40X90 46~60 BHC MB50-50X86 60 ~75 BHC MB63-63X108 75 ~95 BHC MB80-80X129 95~120 L IHFF (E) IHWF E IHRF IHRF CH IHRF BW BHEH L1 2 µm BHD MB L5 Fine Boring Heads with Digital 2 µm d LOCK + Direct Adjustment Diametric Display SS SR44 d d2 d2 BBH LOCK + CW32 BATTERY SR44 IHAXF IHFF kg Designation SS d min d max L L 1 L 5 d 2 BHD MB50-50X60 MB50 2.5 110.0 80.00 61.0 5.00 16.00 1.100 BHD MB63-63-89 MB63 6.0 125.0 88.50 69.5 5.00 16.00 2.200 BHD MB80-80-104 MB80 6.0 200.0 104.00 84.5 5.00 16.00 3.900 • For spate parts, see page 786 • For boring options, see pages 744- 745, 767-769 For tools, see pages: IHAXF (783) • IHAXF-AVI (784) • IHAXF-E (784) • IHFF (786) • IHRF (787) • IHRF-BW (789) • IHRF-CH (790) • IHWF (787) Dial – + Digital Display 766 ISCAR
