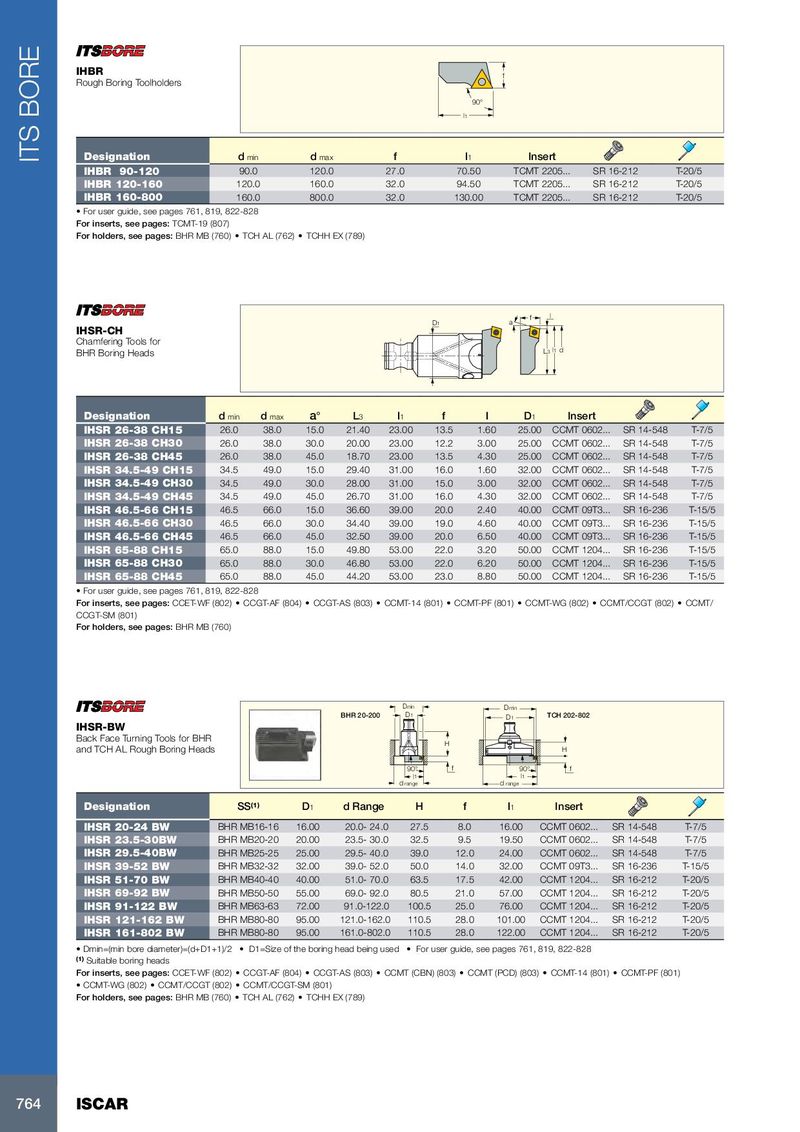

Каталог Iscar вращающийся инструмент 2017 - страница 768

IHBR f Rough Boring Toolholders 90° l1 ITS BORE Designation d min d max f l 1 Insert IHBR 90-120 90.0 120.0 27.0 70.50 TCMT 2205... SR 16-212 T-20/5 IHBR 120-160 120.0 160.0 32.0 94.50 TCMT 2205... SR 16-212 T-20/5 IHBR 160-800 160.0 800.0 32.0 130.00 TCMT 2205... SR 16-212 T-20/5 • For user guide, see pages 761, 819, 822-828 For inserts, see pages: TCMT-19 (807) For holders, see pages: BHR MB (760) • TCH AL (762) • TCHH EX (789) f l D1 a IHSR-CH Chamfering Tools for BHR Boring Heads L3 l1 d Designation d min d max a° L 3 l 1 f l D 1 Insert IHSR 26-38 CH15 26.0 38.0 15.0 21.40 23.00 13.5 1.60 25.00 CCMT 0602... SR 14-548 T-7/5 IHSR 26-38 CH30 26.0 38.0 30.0 20.00 23.00 12.2 3.00 25.00 CCMT 0602... SR 14-548 T-7/5 IHSR 26-38 CH45 26.0 38.0 45.0 18.70 23.00 13.5 4.30 25.00 CCMT 0602... SR 14-548 T-7/5 IHSR 34.5-49 CH15 34.5 49.0 15.0 29.40 31.00 16.0 1.60 32.00 CCMT 0602... SR 14-548 T-7/5 IHSR 34.5-49 CH30 34.5 49.0 30.0 28.00 31.00 15.0 3.00 32.00 CCMT 0602... SR 14-548 T-7/5 IHSR 34.5-49 CH45 34.5 49.0 45.0 26.70 31.00 16.0 4.30 32.00 CCMT 0602... SR 14-548 T-7/5 IHSR 46.5-66 CH15 46.5 66.0 15.0 36.60 39.00 20.0 2.40 40.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 46.5-66 CH30 46.5 66.0 30.0 34.40 39.00 19.0 4.60 40.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 46.5-66 CH45 46.5 66.0 45.0 32.50 39.00 20.0 6.50 40.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 65-88 CH15 65.0 88.0 15.0 49.80 53.00 22.0 3.20 50.00 CCMT 1204... SR 16-236 T-15/5 IHSR 65-88 CH30 65.0 88.0 30.0 46.80 53.00 22.0 6.20 50.00 CCMT 1204... SR 16-236 T-15/5 IHSR 65-88 CH45 65.0 88.0 45.0 44.20 53.00 23.0 8.80 50.00 CCMT 1204... SR 16-236 T-15/5 • For user guide, see pages 761, 819, 822-828 For inserts, see pages: CCET-WF (802) • CCGT-AF (804) • CCGT-AS (803) • CCMT-14 (801) • CCMT-PF (801) • CCMT-WG (802) • CCMT/CCGT (802) • CCMT/ CCGT-SM (801) For holders, see pages: BHR MB (760) D min D min BHR 20-200 D 1 D 1 TCH 202-802 IHSR-BW Back Face Turning Tools for BHR H and TCH AL Rough Boring Heads H 90° f 90° f l 1 l 1 d range d range Designation SS (1) D 1 d Range H f l 1 Insert IHSR 20-24 BW BHR MB16-16 16.00 20.0- 24.0 27.5 8.0 16.00 CCMT 0602... SR 14-548 T-7/5 IHSR 23.5-30BW BHR MB20-20 20.00 23.5- 30.0 32.5 9.5 19.50 CCMT 0602... SR 14-548 T-7/5 IHSR 29.5-40BW BHR MB25-25 25.00 29.5- 40.0 39.0 12.0 24.00 CCMT 0602... SR 14-548 T-7/5 IHSR 39-52 BW BHR MB32-32 32.00 39.0- 52.0 50.0 14.0 32.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 51-70 BW BHR MB40-40 40.00 51.0- 70.0 63.5 17.5 42.00 CCMT 1204... SR 16-212 T-20/5 IHSR 69-92 BW BHR MB50-50 55.00 69.0- 92.0 80.5 21.0 57.00 CCMT 1204... SR 16-212 T-20/5 IHSR 91-122 BW BHR MB63-63 72.00 91.0-122.0 100.5 25.0 76.00 CCMT 1204... SR 16-212 T-20/5 IHSR 121-162 BW BHR MB80-80 95.00 121.0-162.0 110.5 28.0 101.00 CCMT 1204... SR 16-212 T-20/5 IHSR 161-802 BW BHR MB80-80 95.00 161.0-802.0 110.5 28.0 122.00 CCMT 1204... SR 16-212 T-20/5 • Dmin=(min bore diameter)=(d+D1+1)/2 • D1=Size of the boring head being used • For user guide, see pages 761, 819, 822-828 (1) Suitable boring heads For inserts, see pages: CCET-WF (802) • CCGT-AF (804) • CCGT-AS (803) • CCMT (CBN) (803) • CCMT (PCD) (803) • CCMT-14 (801) • CCMT-PF (801) • CCMT-WG (802) • CCMT/CCGT (802) • CCMT/CCGT-SM (801) For holders, see pages: BHR MB (760) • TCH AL (762) • TCHH EX (789) 764 ISCAR
