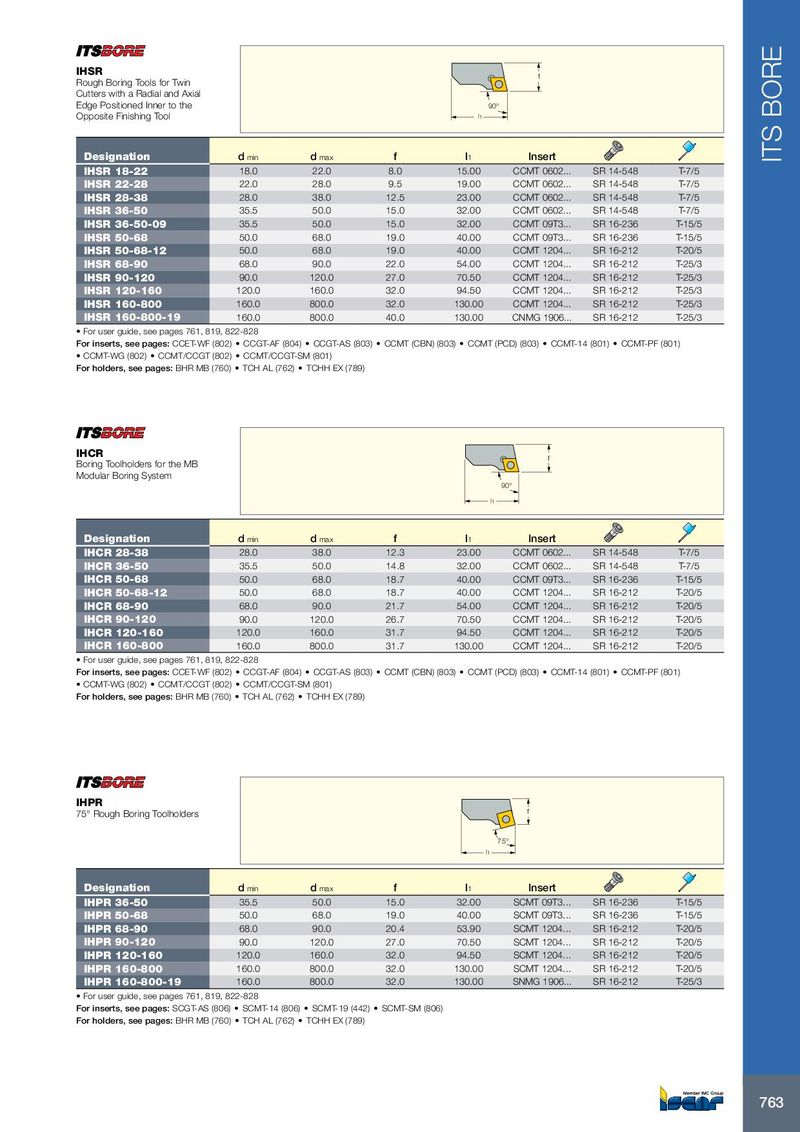

IHSR f Rough Boring Tools for Twin Cutters with a Radial and Axial Edge Positioned Inner to the 90° Opposite Finishing Tool l1 Designation d min d max f l 1 Insert ITS BORE IHSR 18-22 18.0 22.0 8.0 15.00 CCMT 0602... SR 14-548 T-7/5 IHSR 22-28 22.0 28.0 9.5 19.00 CCMT 0602... SR 14-548 T-7/5 IHSR 28-38 28.0 38.0 12.5 23.00 CCMT 0602... SR 14-548 T-7/5 IHSR 36-50 35.5 50.0 15.0 32.00 CCMT 0602... SR 14-548 T-7/5 IHSR 36-50-09 35.5 50.0 15.0 32.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 50-68 50.0 68.0 19.0 40.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 50-68-12 50.0 68.0 19.0 40.00 CCMT 1204... SR 16-212 T-20/5 IHSR 68-90 68.0 90.0 22.0 54.00 CCMT 1204... SR 16-212 T-25/3 IHSR 90-120 90.0 120.0 27.0 70.50 CCMT 1204... SR 16-212 T-25/3 IHSR 120-160 120.0 160.0 32.0 94.50 CCMT 1204... SR 16-212 T-25/3 IHSR 160-800 160.0 800.0 32.0 130.00 CCMT 1204... SR 16-212 T-25/3 IHSR 160-800-19 160.0 800.0 40.0 130.00 CNMG 1906... SR 16-212 T-25/3 • For user guide, see pages 761, 819, 822-828 For inserts, see pages: CCET-WF (802) • CCGT-AF (804) • CCGT-AS (803) • CCMT (CBN) (803) • CCMT (PCD) (803) • CCMT-14 (801) • CCMT-PF (801) • CCMT-WG (802) • CCMT/CCGT (802) • CCMT/CCGT-SM (801) For holders, see pages: BHR MB (760) • TCH AL (762) • TCHH EX (789) IHCR f Boring Toolholders for the MB Modular Boring System 90° l1 Designation d min d max f l 1 Insert IHCR 28-38 28.0 38.0 12.3 23.00 CCMT 0602... SR 14-548 T-7/5 IHCR 36-50 35.5 50.0 14.8 32.00 CCMT 0602... SR 14-548 T-7/5 IHCR 50-68 50.0 68.0 18.7 40.00 CCMT 09T3... SR 16-236 T-15/5 IHCR 50-68-12 50.0 68.0 18.7 40.00 CCMT 1204... SR 16-212 T-20/5 IHCR 68-90 68.0 90.0 21.7 54.00 CCMT 1204... SR 16-212 T-20/5 IHCR 90-120 90.0 120.0 26.7 70.50 CCMT 1204... SR 16-212 T-20/5 IHCR 120-160 120.0 160.0 31.7 94.50 CCMT 1204... SR 16-212 T-20/5 IHCR 160-800 160.0 800.0 31.7 130.00 CCMT 1204... SR 16-212 T-20/5 • For user guide, see pages 761, 819, 822-828 For inserts, see pages: CCET-WF (802) • CCGT-AF (804) • CCGT-AS (803) • CCMT (CBN) (803) • CCMT (PCD) (803) • CCMT-14 (801) • CCMT-PF (801) • CCMT-WG (802) • CCMT/CCGT (802) • CCMT/CCGT-SM (801) For holders, see pages: BHR MB (760) • TCH AL (762) • TCHH EX (789) IHPR 75° Rough Boring Toolholders f 75° l1 Designation d min d max f l 1 Insert IHPR 36-50 35.5 50.0 15.0 32.00 SCMT 09T3... SR 16-236 T-15/5 IHPR 50-68 50.0 68.0 19.0 40.00 SCMT 09T3... SR 16-236 T-15/5 IHPR 68-90 68.0 90.0 20.4 53.90 SCMT 1204... SR 16-212 T-20/5 IHPR 90-120 90.0 120.0 27.0 70.50 SCMT 1204... SR 16-212 T-20/5 IHPR 120-160 120.0 160.0 32.0 94.50 SCMT 1204... SR 16-212 T-20/5 IHPR 160-800 160.0 800.0 32.0 130.00 SCMT 1204... SR 16-212 T-20/5 IHPR 160-800-19 160.0 800.0 32.0 130.00 SNMG 1906... SR 16-212 T-25/3 • For user guide, see pages 761, 819, 822-828 For inserts, see pages: SCGT-AS (806) • SCMT-14 (806) • SCMT-19 (442) • SCMT-SM (806) For holders, see pages: BHR MB (760) • TCH AL (762) • TCHH EX (789) 763
