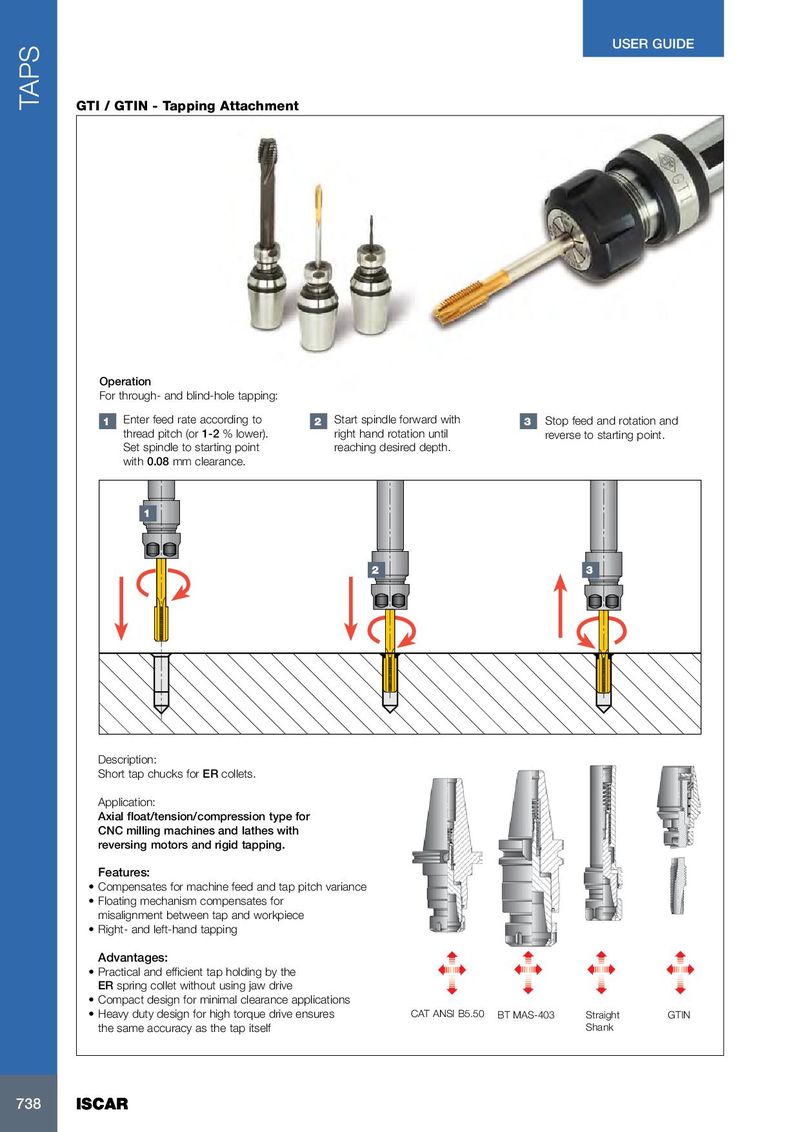

USER GUIDE TAPS GTI / GTIN - Tapping Attachment Operation For through- and blind-hole tapping: 1 Enter feed rate according to 2 Start spindle forward with 3 Stop feed and rotation and thread pitch (or 1-2 % lower). right hand rotation until reverse to starting point. Set spindle to starting point reaching desired depth. with 0.08 mm clearance. 1 2 3 Description: Short tap chucks for ER collets. Application: Axial float/tension/compression type for CNC milling machines and lathes with reversing motors and rigid tapping. Features: • Compensates for machine feed and tap pitch variance • Floating mechanism compensates for misalignment between tap and workpiece • Right- and left-hand tapping Advantages: • Practical and efficient tap holding by the ER spring collet without using jaw drive • Compact design for minimal clearance applications • Heavy duty design for high torque drive ensures CAT ANSI B5.50 BT MAS-403 Straight GTIN the same accuracy as the tap itself Shank 738 738 ISCAR ISCAR
