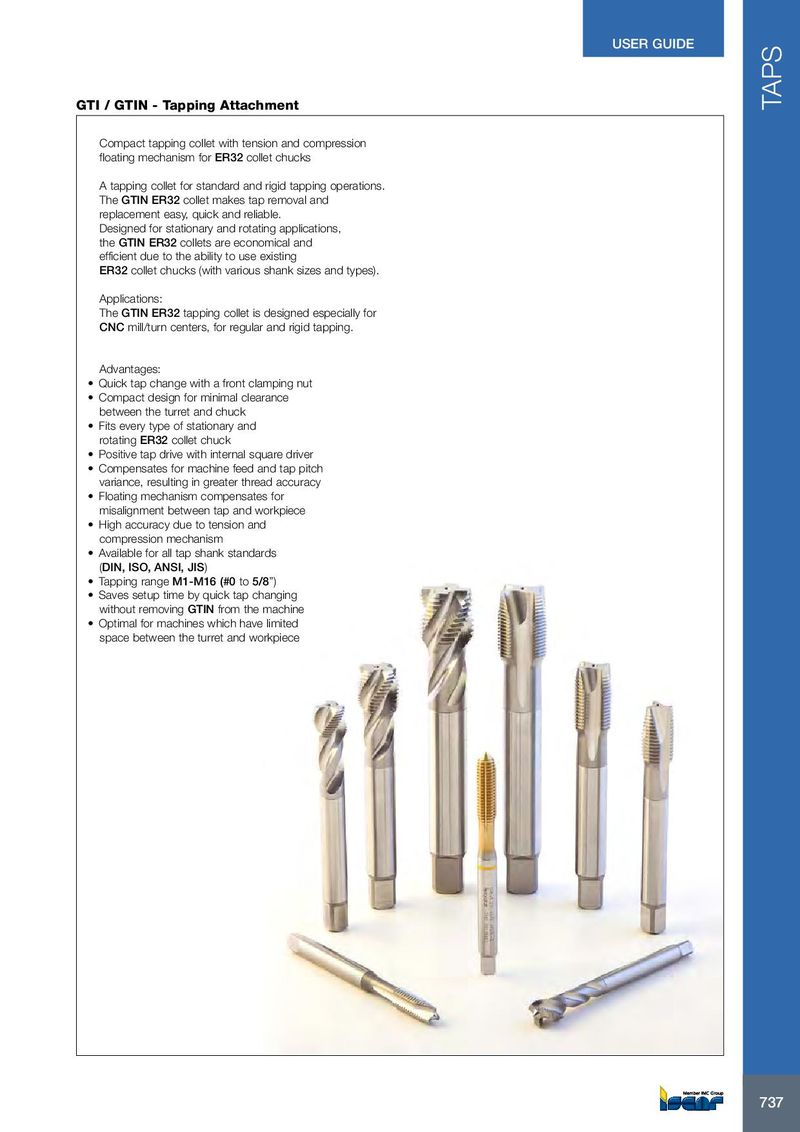

USER GUIDE GTI / GTIN - Tapping Attachment TAPS Compact tapping collet with tension and compression floating mechanism for ER32 collet chucks A tapping collet for standard and rigid tapping operations. The GTIN ER32 collet makes tap removal and replacement easy, quick and reliable. Designed for stationary and rotating applications, the GTIN ER32 collets are economical and efficient due to the ability to use existing ER32 collet chucks (with various shank sizes and types). Applications: The GTIN ER32 tapping collet is designed especially for CNC mill/turn centers, for regular and rigid tapping. Advantages: • Quick tap change with a front clamping nut • Compact design for minimal clearance between the turret and chuck • Fits every type of stationary and rotating ER32 collet chuck • Positive tap drive with internal square driver • Compensates for machine feed and tap pitch variance, resulting in greater thread accuracy • Floating mechanism compensates for misalignment between tap and workpiece • High accuracy due to tension and compression mechanism • Available for all tap shank standards (DIN, ISO, ANSI, JIS) • Tapping range M1-M16 (#0 to 5/8”) • Saves setup time by quick tap changing without removing GTIN from the machine • Optimal for machines which have limited space between the turret and workpiece 737 737
