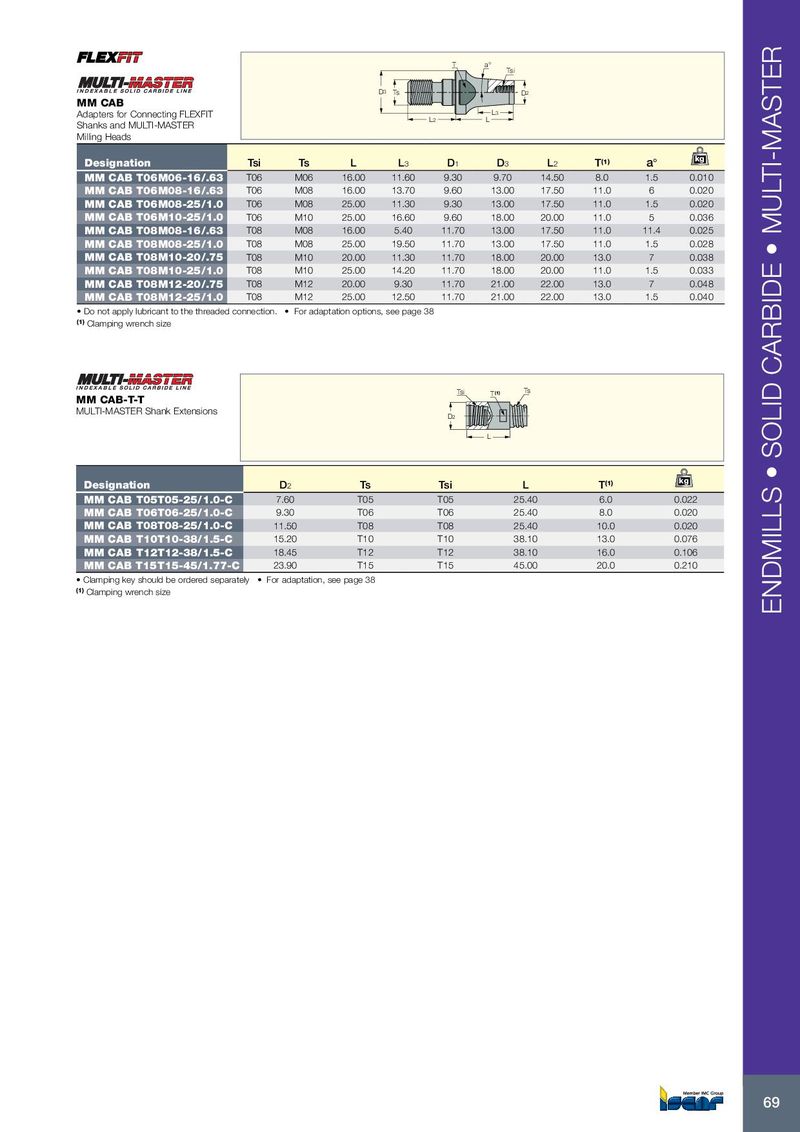

Каталог Iscar вращающийся инструмент 2017 - страница 73
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| D3 Ts | T | a° Tsi | D2 | ||||||||
| MM CAB | |||||||||||
| Adapters for Connecting FLEXFIT | L3 | ||||||||||
| Shanks and MULTI-MASTER | L2 | L | |||||||||
| MillingHeads | |||||||||||
| Designation | Tsi | Ts | L | L3 | D1 | D3 | L2 | T(1) | a° | kg | |
| MM CAB T06M06-16/.63 | T06 | M06 | 16.00 | 11.60 | 9.30 | 9.70 | 14.50 | 8.0 | 1.5 | 0.010 | |
| MM CAB T06M08-16/.63 | T06 | M08 | 16.00 | 13.70 | 9.60 | 13.00 | 17.50 | 11.0 | 6 | 0.020 | |
| MM CAB T06M08-25/1.0 | T06 | M08 | 25.00 | 11.30 | 9.30 | 13.00 | 17.50 | 11.0 | 1.5 | 0.020 | |
| MM CAB T06M10-25/1.0 | T06 | M10 | 25.00 | 16.60 | 9.60 | 18.00 | 20.00 | 11.0 | 5 | 0.036 | |
| MM CAB T08M08-16/.63 | T08 | M08 | 16.00 | 5.40 | 11.70 | 13.00 | 17.50 | 11.0 | 11.4 | 0.025 | |
| MM CAB T08M08-25/1.0 | T08 | M08 | 25.00 | 19.50 | 11.70 | 13.00 | 17.50 | 11.0 | 1.5 | 0.028 | |
| MM CAB T08M10-20/.75 | T08 | M10 | 20.00 | 11.30 | 11.70 | 18.00 | 20.00 | 13.0 | 7 | 0.038 | |
| MM CAB T08M10-25/1.0 | T08 | M10 | 25.00 | 14.20 | 11.70 | 18.00 | 20.00 | 11.0 | 1.5 | 0.033 | |
| MM CAB T08M12-20/.75 | T08 | M12 | 20.00 | 9.30 | 11.70 | 21.00 | 22.00 | 13.0 | 7 | 0.048 | |
| MM CAB T08M12-25/1.0 | T08 | M12 | 25.00 | 12.50 | 11.70 | 21.00 | 22.00 | 13.0 | 1.5 | 0.040 |
- Do not apply lubricant to the threaded connection.
- For adaptation options, see page 38
(1) Clamping wrench size
| MM CAB-T-T MULTI-MASTER Shank Extensions | Ts T(1) Tsi D2 |
| L |
| Designation | D2 | Ts | Tsi | L | T(1) | kg |
| MM CAB T05T05-25/1.0-C | 7.60 | T05 | T05 | 25.40 | 6.0 | 0.022 |
| MM CAB T06T06-25/1.0-C | 9.30 | T06 | T06 | 25.40 | 8.0 | 0.020 |
| MM CAB T08T08-25/1.0-C | 11.50 | T08 | T08 | 25.40 | 10.0 | 0.020 |
| MM CAB T10T10-38/1.5-C | 15.20 | T10 | T10 | 38.10 | 13.0 | 0.076 |
| MM CAB T12T12-38/1.5-C | 18.45 | T12 | T12 | 38.10 | 16.0 | 0.106 |
| MM CAB T15T15-45/1.77-C | 23.90 | T15 | T15 | 45.00 | 20.0 | 0.210 |
- Clamping key should be ordered separately
- For adaptation, see page 38
(1) Clamping wrench size
