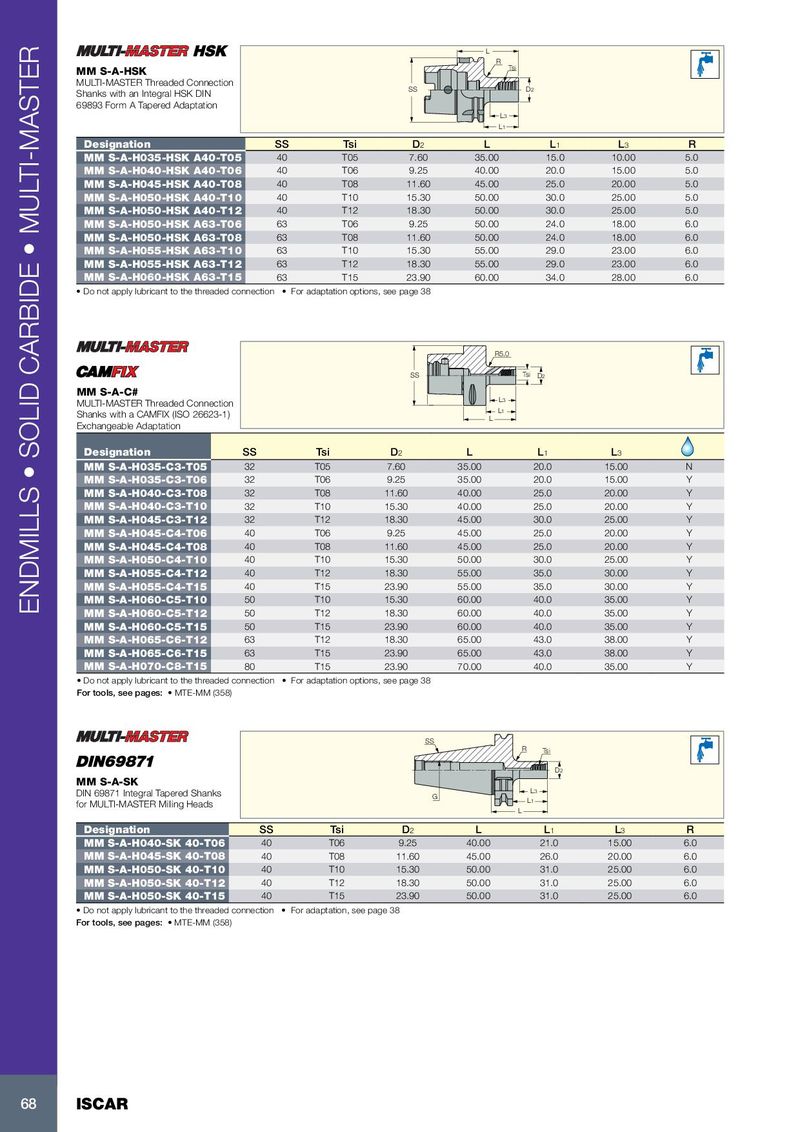

| MM S-A-HSK MULTI-MASTER Threaded Connection Shanks with an Integral HSK DIN 69893 Form A Tapered Adaptation | SS | L R L3 L1 Tsi | D2 | ||||
| Designation | SS | Tsi | D2 | L | L1 | L3 | R |
| MM S-A-H035-HSK A40-T05 | 40 | T05 | 7.60 | 35.00 | 15.0 | 10.00 | 5.0 |
| MM S-A-H040-HSK A40-T06 | 40 | T06 | 9.25 | 40.00 | 20.0 | 15.00 | 5.0 |
| MM S-A-H045-HSK A40-T08 | 40 | T08 | 11.60 | 45.00 | 25.0 | 20.00 | 5.0 |
| MM S-A-H050-HSK A40-T10 | 40 | T10 | 15.30 | 50.00 | 30.0 | 25.00 | 5.0 |
| MM S-A-H050-HSK A40-T12 | 40 | T12 | 18.30 | 50.00 | 30.0 | 25.00 | 5.0 |
| MM S-A-H050-HSK A63-T06 | 63 | T06 | 9.25 | 50.00 | 24.0 | 18.00 | 6.0 |
| MM S-A-H050-HSK A63-T08 | 63 | T08 | 11.60 | 50.00 | 24.0 | 18.00 | 6.0 |
| MM S-A-H055-HSK A63-T10 | 63 | T10 | 15.30 | 55.00 | 29.0 | 23.00 | 6.0 |
| MM S-A-H055-HSK A63-T12 | 63 | T12 | 18.30 | 55.00 | 29.0 | 23.00 | 6.0 |
| MM S-A-H060-HSK A63-T15 | 63 | T15 | 23.90 | 60.00 | 34.0 | 28.00 | 6.0 |
- Do not apply lubricant to the threaded connection
- For adaptation options, see page 38
| SS | D2 Tsi R5.0 | ||||||
| MM S-A-C# | |||||||
| MULTI-MASTER Threaded Connection Shanks with a CAMFIX (ISO 26623-1) Exchangeable Adaptation | L1 L L3 | ||||||
| Designation | SS | Tsi | D2 | L | L1 | L3 | |
| MM S-A-H035-C3-T05 | 32 | T05 | 7.60 | 35.00 | 20.0 | 15.00 | N |
| MM S-A-H035-C3-T06 | 32 | T06 | 9.25 | 35.00 | 20.0 | 15.00 | Y |
| MM S-A-H040-C3-T08 | 32 | T08 | 11.60 | 40.00 | 25.0 | 20.00 | Y |
| MM S-A-H040-C3-T10 | 32 | T10 | 15.30 | 40.00 | 25.0 | 20.00 | Y |
| MM S-A-H045-C3-T12 | 32 | T12 | 18.30 | 45.00 | 30.0 | 25.00 | Y |
| MM S-A-H045-C4-T06 | 40 | T06 | 9.25 | 45.00 | 25.0 | 20.00 | Y |
| MM S-A-H045-C4-T08 | 40 | T08 | 11.60 | 45.00 | 25.0 | 20.00 | Y |
| MM S-A-H050-C4-T10 | 40 | T10 | 15.30 | 50.00 | 30.0 | 25.00 | Y |
| MM S-A-H055-C4-T12 | 40 | T12 | 18.30 | 55.00 | 35.0 | 30.00 | Y |
| MM S-A-H055-C4-T15 | 40 | T15 | 23.90 | 55.00 | 35.0 | 30.00 | Y |
| MM S-A-H060-C5-T10 | 50 | T10 | 15.30 | 60.00 | 40.0 | 35.00 | Y |
| MM S-A-H060-C5-T12 | 50 | T12 | 18.30 | 60.00 | 40.0 | 35.00 | Y |
| MM S-A-H060-C5-T15 | 50 | T15 | 23.90 | 60.00 | 40.0 | 35.00 | Y |
| MM S-A-H065-C6-T12 | 63 | T12 | 18.30 | 65.00 | 43.0 | 38.00 | Y |
| MM S-A-H065-C6-T15 | 63 | T15 | 23.90 | 65.00 | 43.0 | 38.00 | Y |
| MM S-A-H070-C8-T15 | 80 | T15 | 23.90 | 70.00 | 40.0 | 35.00 | Y |
- Do not apply lubricant to the threaded connection
- For adaptation options, see page 38
For tools, see pages: MTE-MM (358)
| SS | R D2 Tsi | ||||||
| MM S-A-SK DIN 69871 Integral Tapered Shanks for MULTI-MASTER Milling Heads | G | L3 L1 L | |||||
| Designation | SS | Tsi | D2 | L | L1 | L3 | R |
| MM S-A-H040-SK 40-T06 | 40 | T06 | 9.25 | 40.00 | 21.0 | 15.00 | 6.0 |
| MM S-A-H045-SK 40-T08 | 40 | T08 | 11.60 | 45.00 | 26.0 | 20.00 | 6.0 |
| MM S-A-H050-SK 40-T10 | 40 | T10 | 15.30 | 50.00 | 31.0 | 25.00 | 6.0 |
| MM S-A-H050-SK 40-T12 | 40 | T12 | 18.30 | 50.00 | 31.0 | 25.00 | 6.0 |
| MM S-A-H050-SK 40-T15 | 40 | T15 | 23.90 | 50.00 | 31.0 | 25.00 | 6.0 |
- Do not apply lubricant to the threaded connection
- For adaptation, see page 38
For tools, see pages: MTE-MM (358)
