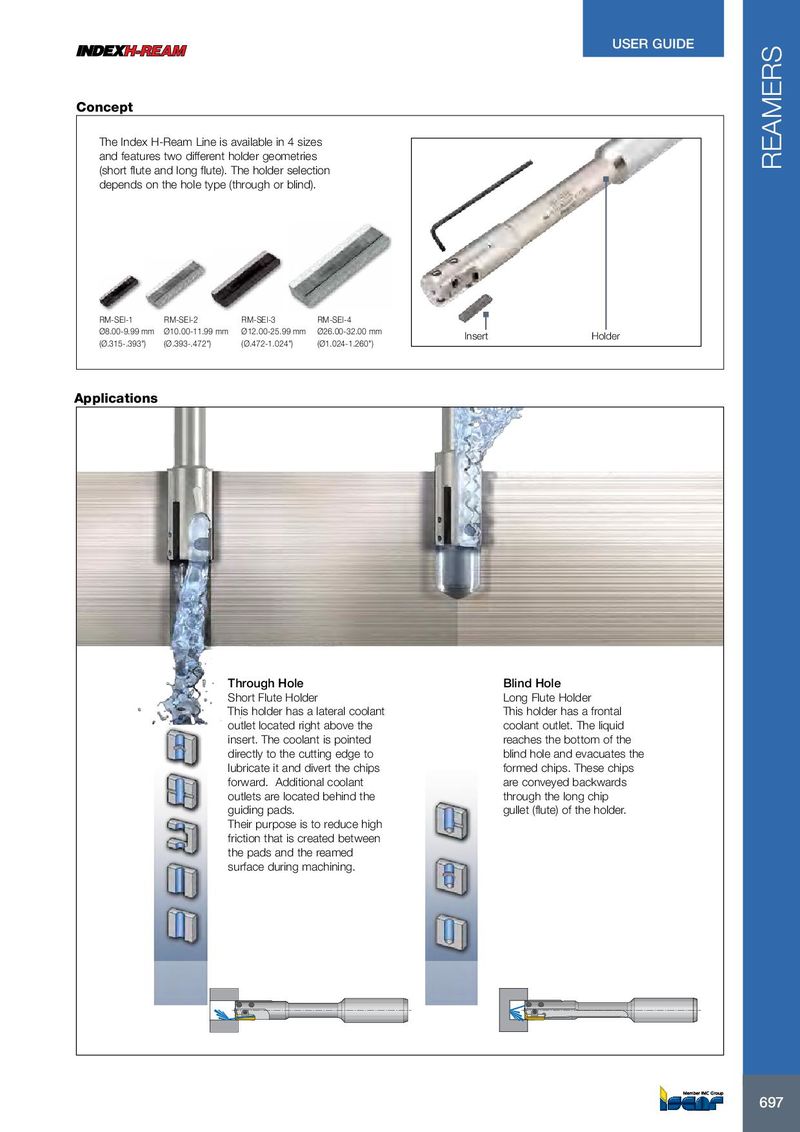

USER GUIDE Concept The Index H-Ream Line is available in 4 sizes and features two different holder geometries REAMERS (short flute and long flute). The holder selection depends on the hole type (through or blind). RM-SEI-1 RM-SEI-2 RM-SEI-3 RM-SEI-4 Ø8.00-9.99 mm Ø10.00-11.99 mm Ø12.00-25.99 mm Ø26.00-32.00 mm Insert Holder (Ø.315-.393") (Ø.393-.472") (Ø.472-1.024") (Ø1.024-1.260") Applications Through Hole Blind Hole Short Flute Holder Long Flute Holder This holder has a lateral coolant This holder has a frontal outlet located right above the coolant outlet. The liquid insert. The coolant is pointed reaches the bottom of the directly to the cutting edge to blind hole and evacuates the lubricate it and divert the chips formed chips. These chips forward. Additional coolant are conveyed backwards outlets are located behind the through the long chip guiding pads. gullet (flute) of the holder. Their purpose is to reduce high friction that is created between the pads and the reamed surface during machining. 697 697
