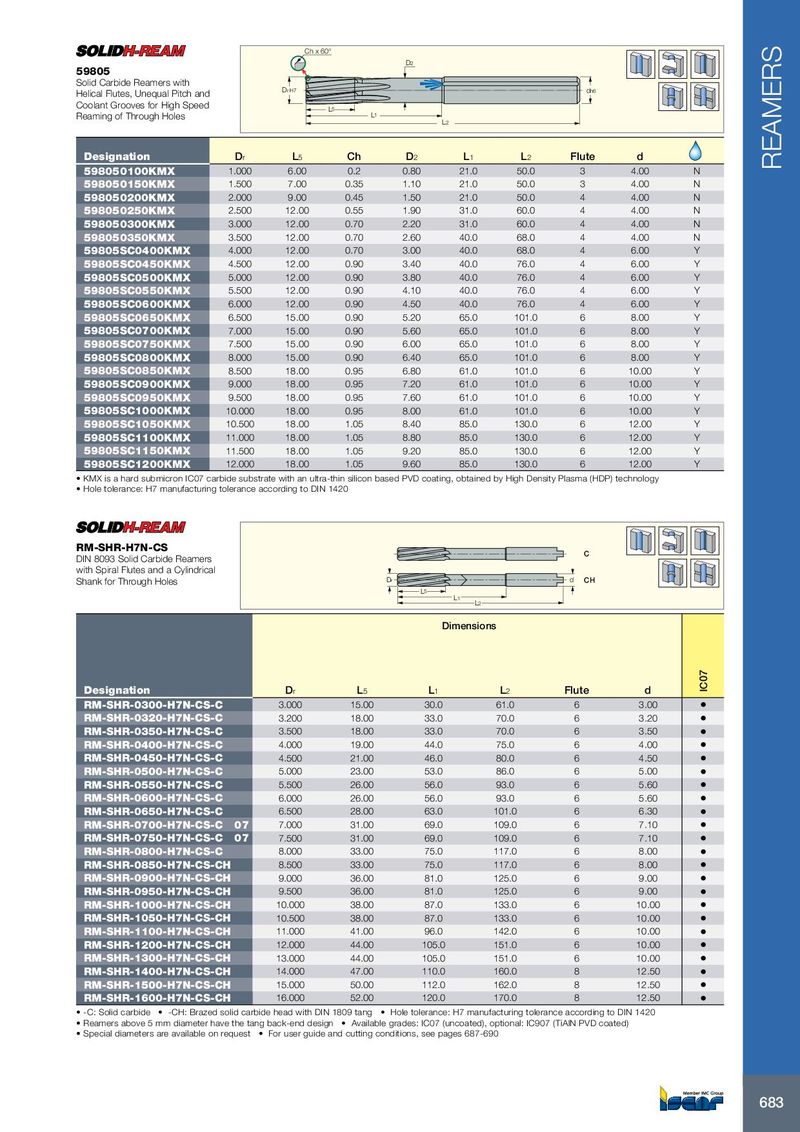

Ch x 60° D 2 59805 Solid Carbide Reamers with Dr H7 Helical Flutes, Unequal Pitch and dh6 Coolant Grooves for High Speed L 5 Reaming of Through Holes L 1 L 2 Designation D r L 5 Ch D 2 L 1 L 2 Flute d REAMERS 598050100KMX 1.000 6.00 0.2 0.80 21.0 50.0 3 4.00 N 598050150KMX 1.500 7.00 0.35 1.10 21.0 50.0 3 4.00 N 598050200KMX 2.000 9.00 0.45 1.50 21.0 50.0 4 4.00 N 598050250KMX 2.500 12.00 0.55 1.90 31.0 60.0 4 4.00 N 598050300KMX 3.000 12.00 0.70 2.20 31.0 60.0 4 4.00 N 598050350KMX 3.500 12.00 0.70 2.60 40.0 68.0 4 4.00 N 59805SC0400KMX 4.000 12.00 0.70 3.00 40.0 68.0 4 6.00 Y 59805SC0450KMX 4.500 12.00 0.90 3.40 40.0 76.0 4 6.00 Y 59805SC0500KMX 5.000 12.00 0.90 3.80 40.0 76.0 4 6.00 Y 59805SC0550KMX 5.500 12.00 0.90 4.10 40.0 76.0 4 6.00 Y 59805SC0600KMX 6.000 12.00 0.90 4.50 40.0 76.0 4 6.00 Y 59805SC0650KMX 6.500 15.00 0.90 5.20 65.0 101.0 6 8.00 Y 59805SC0700KMX 7.000 15.00 0.90 5.60 65.0 101.0 6 8.00 Y 59805SC0750KMX 7.500 15.00 0.90 6.00 65.0 101.0 6 8.00 Y 59805SC0800KMX 8.000 15.00 0.90 6.40 65.0 101.0 6 8.00 Y 59805SC0850KMX 8.500 18.00 0.95 6.80 61.0 101.0 6 10.00 Y 59805SC0900KMX 9.000 18.00 0.95 7.20 61.0 101.0 6 10.00 Y 59805SC0950KMX 9.500 18.00 0.95 7.60 61.0 101.0 6 10.00 Y 59805SC1000KMX 10.000 18.00 0.95 8.00 61.0 101.0 6 10.00 Y 59805SC1050KMX 10.500 18.00 1.05 8.40 85.0 130.0 6 12.00 Y 59805SC1100KMX 11.000 18.00 1.05 8.80 85.0 130.0 6 12.00 Y 59805SC1150KMX 11.500 18.00 1.05 9.20 85.0 130.0 6 12.00 Y 59805SC1200KMX 12.000 18.00 1.05 9.60 85.0 130.0 6 12.00 Y • KMX is a hard submicron IC07 carbide substrate with an ultra-thin silicon based PVD coating, obtained by High Density Plasma (HDP) technology • Hole tolerance: H7 manufacturing tolerance according to DIN 1420 RM-SHR-H7N-CS C DIN 8093 Solid Carbide Reamers with Spiral Flutes and a Cylindrical Shank for Through Holes Dr d CH L 5 L 1 L 2 Dimensions Designation D r L 5 L 1 L 2 Flute d IC07 RM-SHR-0300-H7N-CS-C 3.000 15.00 30.0 61.0 6 3.00 • RM-SHR-0320-H7N-CS-C 3.200 18.00 33.0 70.0 6 3.20 • RM-SHR-0350-H7N-CS-C 3.500 18.00 33.0 70.0 6 3.50 • RM-SHR-0400-H7N-CS-C 4.000 19.00 44.0 75.0 6 4.00 • RM-SHR-0450-H7N-CS-C 4.500 21.00 46.0 80.0 6 4.50 • RM-SHR-0500-H7N-CS-C 5.000 23.00 53.0 86.0 6 5.00 • RM-SHR-0550-H7N-CS-C 5.500 26.00 56.0 93.0 6 5.60 • RM-SHR-0600-H7N-CS-C 6.000 26.00 56.0 93.0 6 5.60 • RM-SHR-0650-H7N-CS-C 6.500 28.00 63.0 101.0 6 6.30 • RM-SHR-0700-H7N-CS-C 07 7.000 31.00 69.0 109.0 6 7.10 • RM-SHR-0750-H7N-CS-C 07 7.500 31.00 69.0 109.0 6 7.10 • RM-SHR-0800-H7N-CS-C 8.000 33.00 75.0 117.0 6 8.00 • RM-SHR-0850-H7N-CS-CH 8.500 33.00 75.0 117.0 6 8.00 • RM-SHR-0900-H7N-CS-CH 9.000 36.00 81.0 125.0 6 9.00 • RM-SHR-0950-H7N-CS-CH 9.500 36.00 81.0 125.0 6 9.00 • RM-SHR-1000-H7N-CS-CH 10.000 38.00 87.0 133.0 6 10.00 • RM-SHR-1050-H7N-CS-CH 10.500 38.00 87.0 133.0 6 10.00 • RM-SHR-1100-H7N-CS-CH 11.000 41.00 96.0 142.0 6 10.00 • RM-SHR-1200-H7N-CS-CH 12.000 44.00 105.0 151.0 6 10.00 • RM-SHR-1300-H7N-CS-CH 13.000 44.00 105.0 151.0 6 10.00 • RM-SHR-1400-H7N-CS-CH 14.000 47.00 110.0 160.0 8 12.50 • RM-SHR-1500-H7N-CS-CH 15.000 50.00 112.0 162.0 8 12.50 • RM-SHR-1600-H7N-CS-CH 16.000 52.00 120.0 170.0 8 12.50 • • -C: Solid carbide • -CH: Brazed solid carbide head with DIN 1809 tang • Hole tolerance: H7 manufacturing tolerance according to DIN 1420 • Reamers above 5 mm diameter have the tang back-end design • Available grades: IC07 (uncoated), optional: IC907 (TiAlN PVD coated) • Special diameters are available on request • For user guide and cutting conditions, see pages 687-690 683
