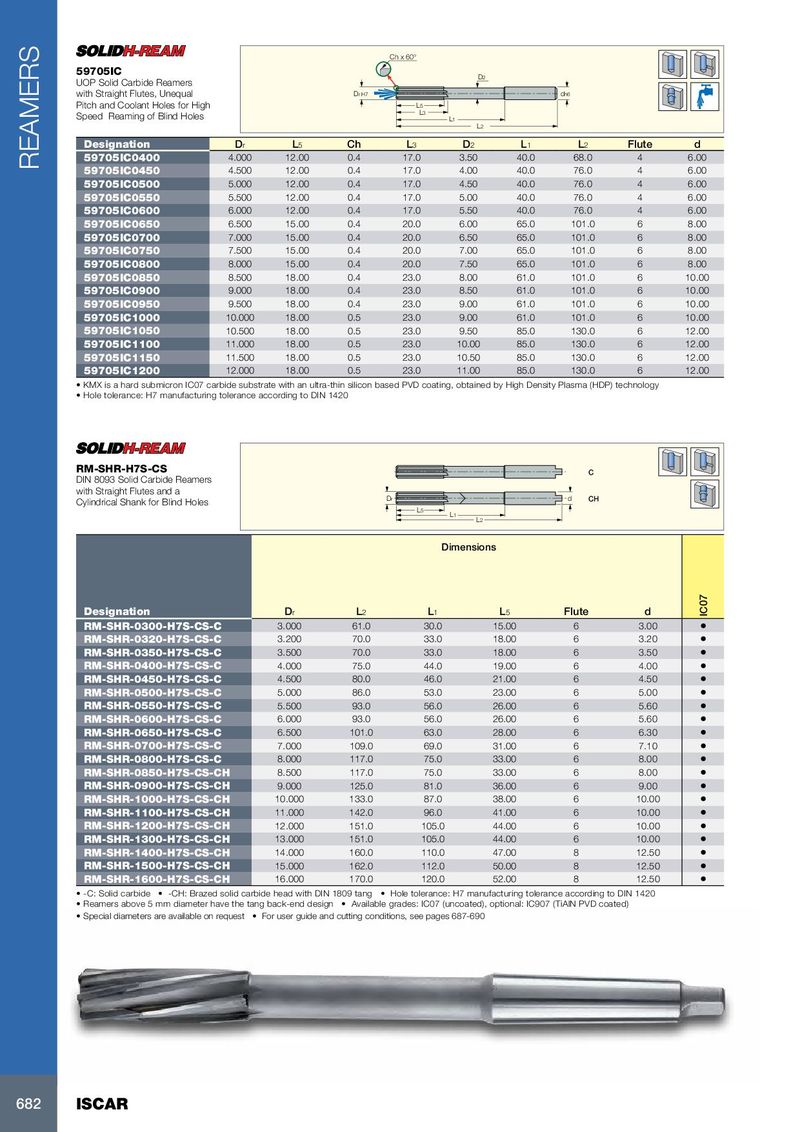

Каталог Iscar вращающийся инструмент 2017 - страница 686

Ch x 60° 59705IC D 2 UOP Solid Carbide Reamers with Straight Flutes, Unequal Dr H7 dh6 Pitch and Coolant Holes for High L 5 L 3 Speed Reaming of Blind Holes L 1 L 2 Designation D r L 5 Ch L 3 D 2 L 1 L 2 Flute d 59705IC0400 4.000 12.00 0.4 17.0 3.50 40.0 68.0 4 6.00 REAMERS 59705IC0450 4.500 12.00 0.4 17.0 4.00 40.0 76.0 4 6.00 59705IC0500 5.000 12.00 0.4 17.0 4.50 40.0 76.0 4 6.00 59705IC0550 5.500 12.00 0.4 17.0 5.00 40.0 76.0 4 6.00 59705IC0600 6.000 12.00 0.4 17.0 5.50 40.0 76.0 4 6.00 59705IC0650 6.500 15.00 0.4 20.0 6.00 65.0 101.0 6 8.00 59705IC0700 7.000 15.00 0.4 20.0 6.50 65.0 101.0 6 8.00 59705IC0750 7.500 15.00 0.4 20.0 7.00 65.0 101.0 6 8.00 59705IC0800 8.000 15.00 0.4 20.0 7.50 65.0 101.0 6 8.00 59705IC0850 8.500 18.00 0.4 23.0 8.00 61.0 101.0 6 10.00 59705IC0900 9.000 18.00 0.4 23.0 8.50 61.0 101.0 6 10.00 59705IC0950 9.500 18.00 0.4 23.0 9.00 61.0 101.0 6 10.00 59705IC1000 10.000 18.00 0.5 23.0 9.00 61.0 101.0 6 10.00 59705IC1050 10.500 18.00 0.5 23.0 9.50 85.0 130.0 6 12.00 59705IC1100 11.000 18.00 0.5 23.0 10.00 85.0 130.0 6 12.00 59705IC1150 11.500 18.00 0.5 23.0 10.50 85.0 130.0 6 12.00 59705IC1200 12.000 18.00 0.5 23.0 11.00 85.0 130.0 6 12.00 • KMX is a hard submicron IC07 carbide substrate with an ultra-thin silicon based PVD coating, obtained by High Density Plasma (HDP) technology • Hole tolerance: H7 manufacturing tolerance according to DIN 1420 RM-SHR-H7S-CS C DIN 8093 Solid Carbide Reamers with Straight Flutes and a Dr d CH Cylindrical Shank for Blind Holes L 5 L 1 L 2 Dimensions Designation D r L 2 L 1 L 5 Flute d IC07 RM-SHR-0300-H7S-CS-C 3.000 61.0 30.0 15.00 6 3.00 • RM-SHR-0320-H7S-CS-C 3.200 70.0 33.0 18.00 6 3.20 • RM-SHR-0350-H7S-CS-C 3.500 70.0 33.0 18.00 6 3.50 • RM-SHR-0400-H7S-CS-C 4.000 75.0 44.0 19.00 6 4.00 • RM-SHR-0450-H7S-CS-C 4.500 80.0 46.0 21.00 6 4.50 • RM-SHR-0500-H7S-CS-C 5.000 86.0 53.0 23.00 6 5.00 • RM-SHR-0550-H7S-CS-C 5.500 93.0 56.0 26.00 6 5.60 • RM-SHR-0600-H7S-CS-C 6.000 93.0 56.0 26.00 6 5.60 • RM-SHR-0650-H7S-CS-C 6.500 101.0 63.0 28.00 6 6.30 • RM-SHR-0700-H7S-CS-C 7.000 109.0 69.0 31.00 6 7.10 • RM-SHR-0800-H7S-CS-C 8.000 117.0 75.0 33.00 6 8.00 • RM-SHR-0850-H7S-CS-CH 8.500 117.0 75.0 33.00 6 8.00 • RM-SHR-0900-H7S-CS-CH 9.000 125.0 81.0 36.00 6 9.00 • RM-SHR-1000-H7S-CS-CH 10.000 133.0 87.0 38.00 6 10.00 • RM-SHR-1100-H7S-CS-CH 11.000 142.0 96.0 41.00 6 10.00 • RM-SHR-1200-H7S-CS-CH 12.000 151.0 105.0 44.00 6 10.00 • RM-SHR-1300-H7S-CS-CH 13.000 151.0 105.0 44.00 6 10.00 • RM-SHR-1400-H7S-CS-CH 14.000 160.0 110.0 47.00 8 12.50 • RM-SHR-1500-H7S-CS-CH 15.000 162.0 112.0 50.00 8 12.50 • RM-SHR-1600-H7S-CS-CH 16.000 170.0 120.0 52.00 8 12.50 • • -C: Solid carbide • -CH: Brazed solid carbide head with DIN 1809 tang • Hole tolerance: H7 manufacturing tolerance according to DIN 1420 • Reamers above 5 mm diameter have the tang back-end design • Available grades: IC07 (uncoated), optional: IC907 (TiAlN PVD coated) • Special diameters are available on request • For user guide and cutting conditions, see pages 687-690 682 ISCAR
