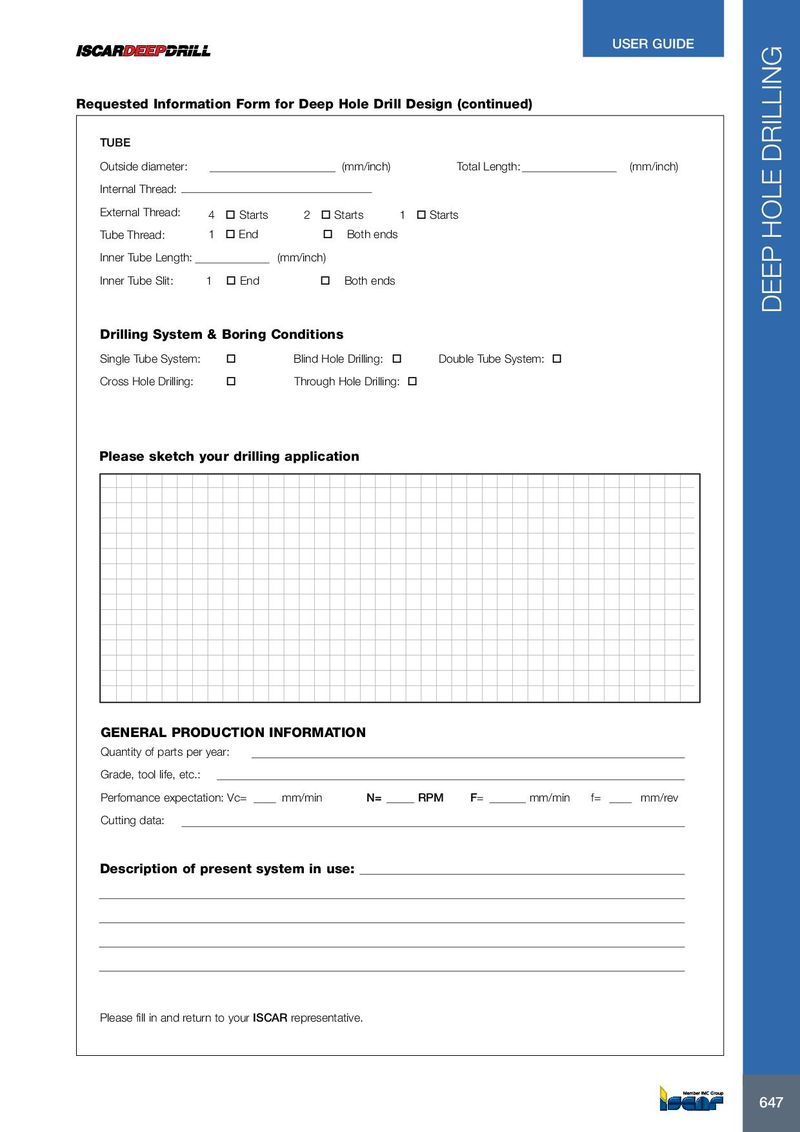

USER GUIDE Requested Information Form for Deep Hole Drill Design (continued) TUBE Outside diameter: (mm/inch) Total Length: (mm/inch) Internal Thread: External Thread: 4 o Starts 2 o Starts 1 o Starts Tube Thread: 1 o End o Both ends Inner Tube Length: (mm/inch) Inner Tube Slit: 1 o End o Both ends DEEP HOLE DRILLING Drilling System & Boring Conditions Single Tube System: o Blind Hole Drilling: o Double Tube System: o Cross Hole Drilling: o Through Hole Drilling: o Please sketch your drilling application GENERAL PRODUCTION INFORMATION Quantity of parts per year: Grade, tool life, etc.: Perfomance expectation: Vc= mm/min N= RPM F= mm/min f= mm/rev Cutting data: Description of present system in use: Please fill in and return to your ISCAR representative. 647 647
