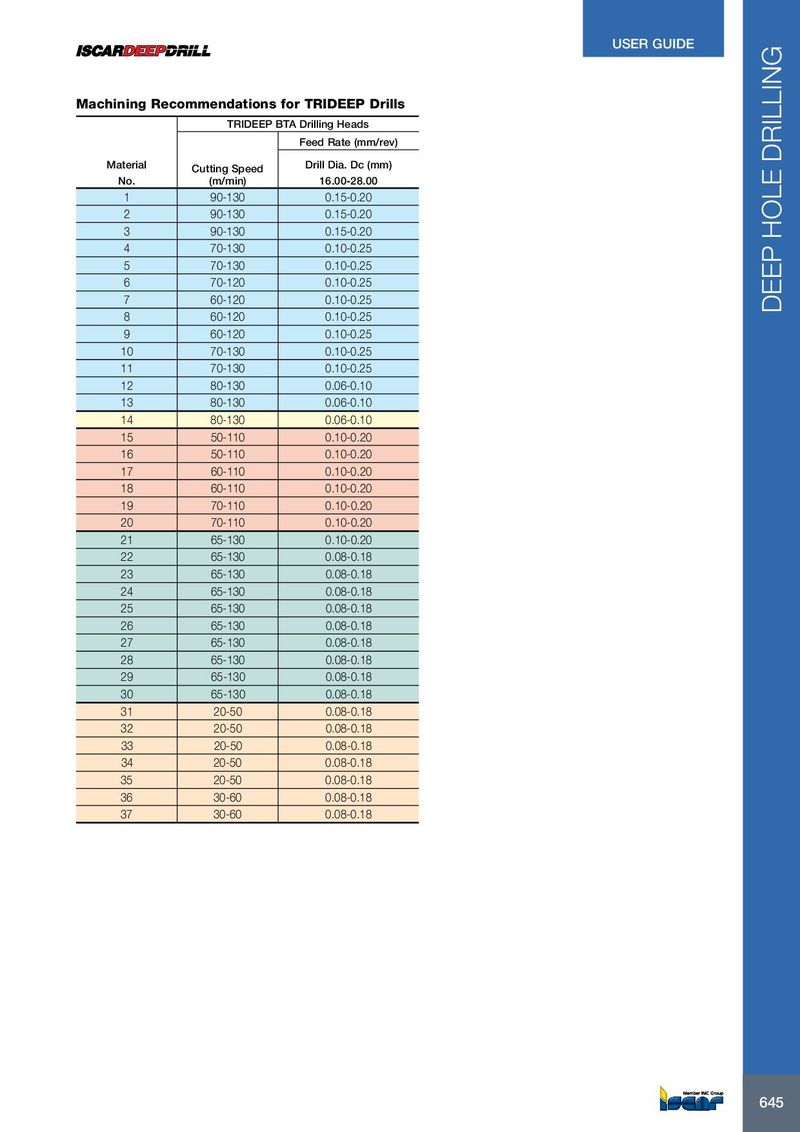

USER GUIDE Machining Recommendations for TRIDEEP Drills TRIDEEP BTA Drilling Heads Feed Rate (mm/rev) Material Cutting Speed Drill Dia. Dc (mm) No. (m/min) 16.00-28.00 1 90-130 0.15-0.20 2 90-130 0.15-0.20 3 90-130 0.15-0.20 4 70-130 0.10-0.25 5 70-130 0.10-0.25 6 70-120 0.10-0.25 7 60-120 0.10-0.25 DEEP HOLE DRILLING 8 60-120 0.10-0.25 9 60-120 0.10-0.25 10 70-130 0.10-0.25 11 70-130 0.10-0.25 12 80-130 0.06-0.10 13 80-130 0.06-0.10 14 80-130 0.06-0.10 15 50-110 0.10-0.20 16 50-110 0.10-0.20 17 60-110 0.10-0.20 18 60-110 0.10-0.20 19 70-110 0.10-0.20 20 70-110 0.10-0.20 21 65-130 0.10-0.20 22 65-130 0.08-0.18 23 65-130 0.08-0.18 24 65-130 0.08-0.18 25 65-130 0.08-0.18 26 65-130 0.08-0.18 27 65-130 0.08-0.18 28 65-130 0.08-0.18 29 65-130 0.08-0.18 30 65-130 0.08-0.18 31 20-50 0.08-0.18 32 20-50 0.08-0.18 33 20-50 0.08-0.18 34 20-50 0.08-0.18 35 20-50 0.08-0.18 36 30-60 0.08-0.18 37 30-60 0.08-0.18 645 645
