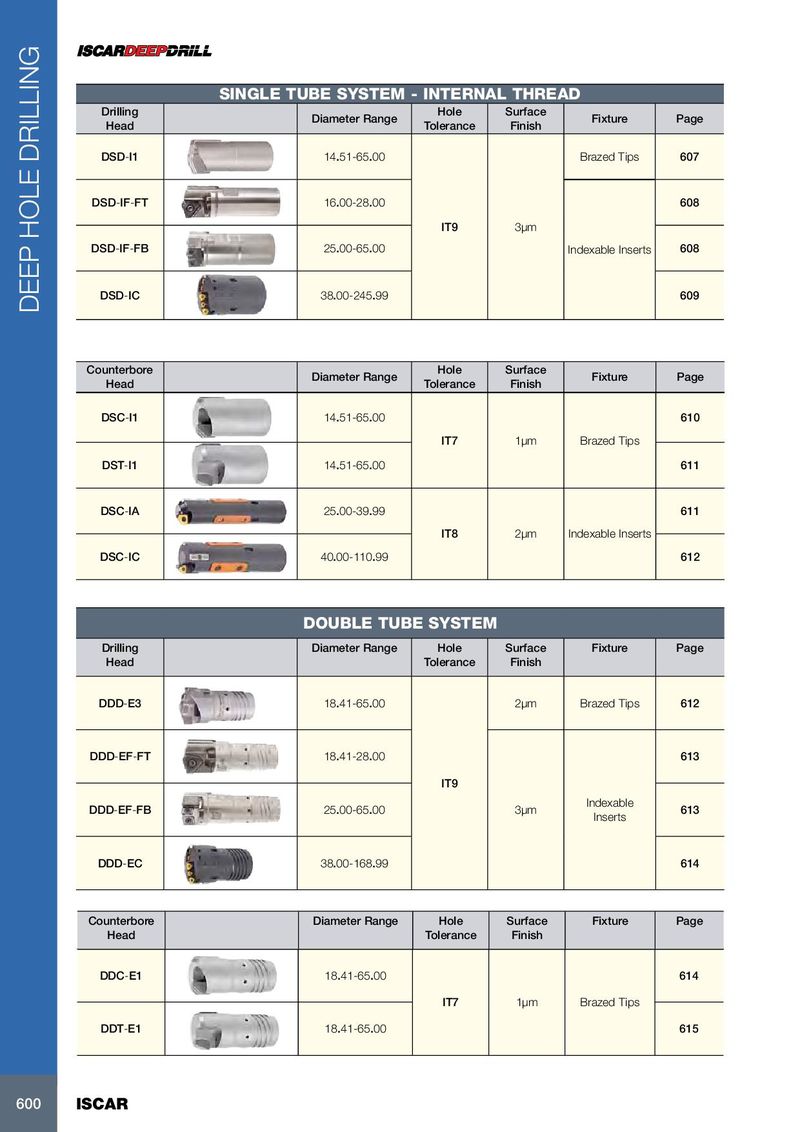

SINGLE TUBE SYSTEM - INTERNAL THREAD

Drilling Hole Surface

Diameter Range Fixture Page

Head Tolerance Finish

DSD-I114.51-65.00Brazed Tips607
DSD-IF-FT16.00-28.00608

IT9 3µm

DSD-IF-FB 25.00-65.00 Indexable Inserts 608

DSD-IC 38.00-245.99 609

Counterbore Hole Surface

Diameter Range Fixture Page

Head Tolerance Finish

DSC-I1 14.51-65.00 610

IT7 1µm Brazed Tips

DST-I114.51-65.00611
DSC-IA25.00-39.99611

IT8 2µm Indexable Inserts

DSC-IC 40.00-110.99 612

DOUBLE TUBE SYSTEM

DrillingDiameter RangeHoleSurfaceFixturePage
HeadToleranceFinish
DDD-E318.41-65.002µmBrazed Tips612

DDD-EF-FT 18.41-28.00 613

IT9 Indexable

DDD-EF-FB 25.00-65.00 3µm 613

Inserts

DDD-EC 38.00-168.99 614

Counterbore Diameter Range Hole Surface Fixture Page

Head Tolerance Finish

DDC-E1 18.41-65.00 614

IT7 1µm Brazed Tips

DDT-E1 18.41-65.00 615
