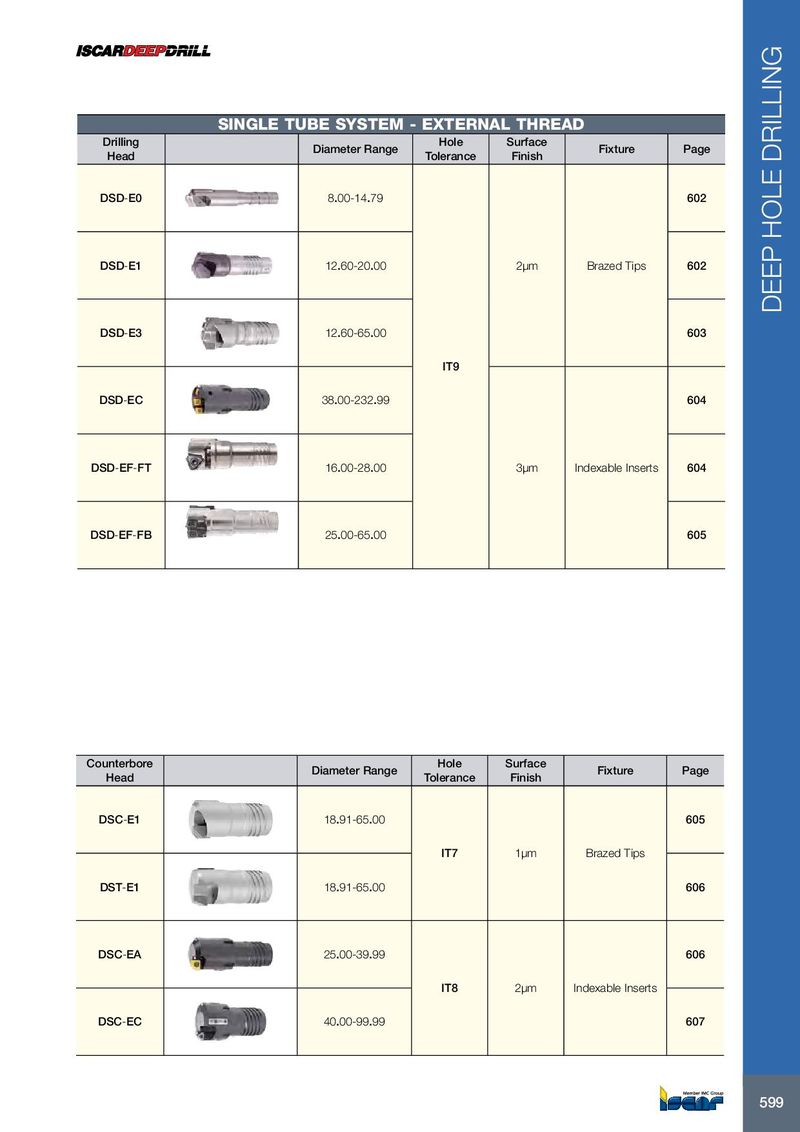

SINGLE TUBE SYSTEM - EXTERNAL THREAD

Drilling Hole Surface

Diameter Range Fixture Page

Head Tolerance Finish

DSD-E0 8.00-14.79 602

DSD-E1 12.60-20.00 2µm Brazed Tips 602

DSD-E3 12.60-65.00 603

IT9

DSD-EC 38.00-232.99 604

DSD-EF-FT 16.00-28.00 3µm Indexable Inserts 604

DSD-EF-FB 25.00-65.00 605

Counterbore Hole Surface

Diameter Range Fixture Page

Head Tolerance Finish

DSC-E1 18.91-65.00 605

IT7 1µm Brazed Tips

DST-E1 18.91-65.00 606

DSC-EA 25.00-39.99 606

IT8 2µm Indexable Inserts

DSC-EC 40.00-99.99 607
