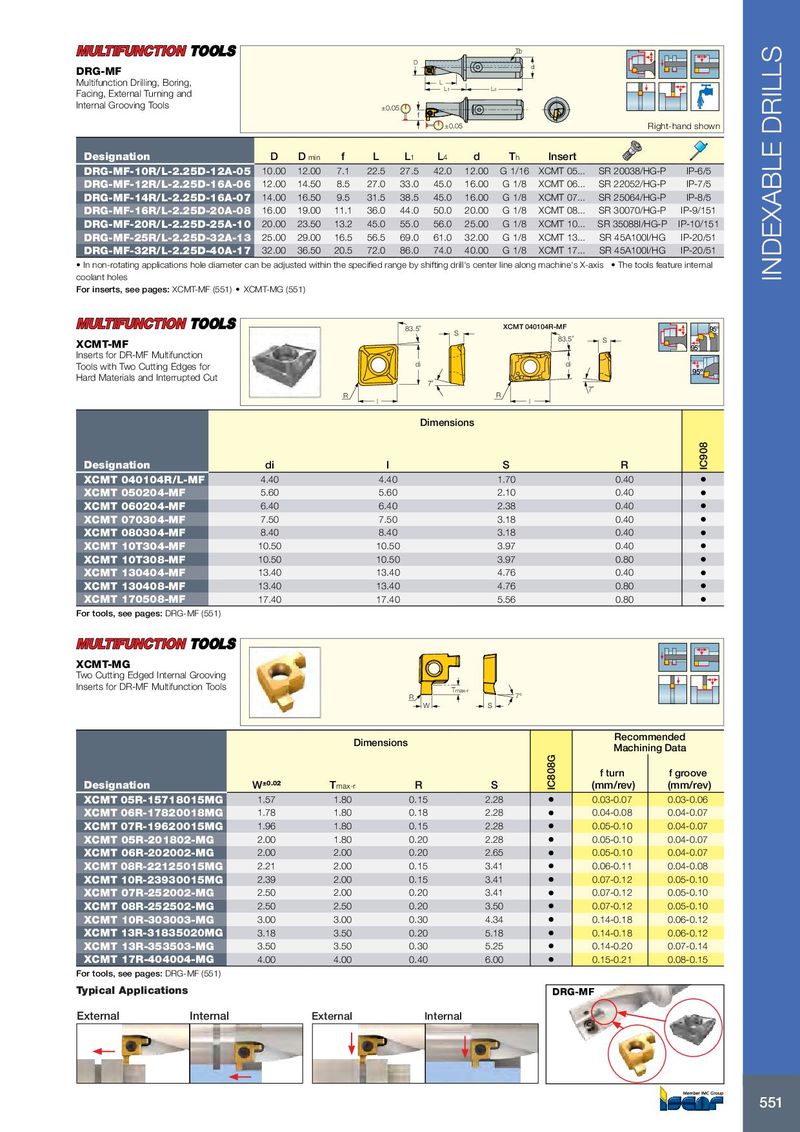

Каталог Iscar вращающийся инструмент 2017 - страница 555

Th D d DRG-MF Multifunction Drilling, Boring, L L1 L4 Facing, External Turning and Internal Grooving Tools ±0.05 f ±0.05 Right-hand shown Designation D D min f L L 1 L 4 d T h Insert DRG-MF-10R/L-2.25D-12A-05 10.00 12.00 7.1 22.5 27.5 42.0 12.00 G 1/16 XCMT 05... SR 20038/HG-P IP-6/5 DRG-MF-12R/L-2.25D-16A-06 12.00 14.50 8.5 27.0 33.0 45.0 16.00 G 1/8 XCMT 06... SR 22052/HG-P IP-7/5 DRG-MF-14R/L-2.25D-16A-07 14.00 16.50 9.5 31.5 38.5 45.0 16.00 G 1/8 XCMT 07... SR 25064/HG-P IP-8/5 DRG-MF-16R/L-2.25D-20A-08 16.00 19.00 11.1 36.0 44.0 50.0 20.00 G 1/8 XCMT 08... SR 30070/HG-P IP-9/151 DRG-MF-20R/L-2.25D-25A-10 20.00 23.50 13.2 45.0 55.0 56.0 25.00 G 1/8 XCMT 10... SR 35088I/HG-P IP-10/151 DRG-MF-25R/L-2.25D-32A-13 25.00 29.00 16.5 56.5 69.0 61.0 32.00 G 1/8 XCMT 13... SR 45A100I/HG IP-20/51 DRG-MF-32R/L-2.25D-40A-17 32.00 36.50 20.5 72.0 86.0 74.0 40.00 G 1/8 XCMT 17... SR 45A100I/HG IP-20/51 • In non-rotating applications hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis • The tools feature internal coolant holes INDEXABLE DRILLS For inserts, see pages: XCMT-MF (551) • XCMT-MG (551) 83.5˚ XCMT 040104R-MF S 95° 83.5˚ S XCMT-MF 95° Inserts for DR-MF Multifunction Tools with Two Cutting Edges for di di 95º Hard Materials and Interrupted Cut 7˚ 7˚ R R l l Dimensions Designation di l S R IC908 XCMT 040104R/L-MF 4.40 4.40 1.70 0.40 • XCMT 050204-MF 5.60 5.60 2.10 0.40 • XCMT 060204-MF 6.40 6.40 2.38 0.40 • XCMT 070304-MF 7.50 7.50 3.18 0.40 • XCMT 080304-MF 8.40 8.40 3.18 0.40 • XCMT 10T304-MF 10.50 10.50 3.97 0.40 • XCMT 10T308-MF 10.50 10.50 3.97 0.80 • XCMT 130404-MF 13.40 13.40 4.76 0.40 • XCMT 130408-MF 13.40 13.40 4.76 0.80 • XCMT 170508-MF 17.40 17.40 5.56 0.80 • For tools, see pages: DRG-MF (551) XCMT-MG Two Cutting Edged Internal Grooving Inserts for DR-MF Multifunction Tools Tmax-r R 7 ° W S Recommended Dimensions Machining Data f turn f groove Designation W ±0.02 T max-r R S IC808G (mm/rev) (mm/rev) XCMT 05R-15718015MG 1.57 1.80 0.15 2.28 • 0.03-0.07 0.03-0.06 XCMT 06R-17820018MG 1.78 1.80 0.18 2.28 • 0.04-0.08 0.04-0.07 XCMT 07R-19620015MG 1.96 1.80 0.15 2.28 • 0.05-0.10 0.04-0.07 XCMT 05R-201802-MG 2.00 1.80 0.20 2.28 • 0.05-0.10 0.04-0.07 XCMT 06R-202002-MG 2.00 2.00 0.20 2.65 • 0.05-0.10 0.04-0.07 XCMT 08R-22125015MG 2.21 2.00 0.15 3.41 • 0.06-0.11 0.04-0.08 XCMT 10R-23930015MG 2.39 2.00 0.15 3.41 • 0.07-0.12 0.05-0.10 XCMT 07R-252002-MG 2.50 2.00 0.20 3.41 • 0.07-0.12 0.05-0.10 XCMT 08R-252502-MG 2.50 2.50 0.20 3.50 • 0.07-0.12 0.05-0.10 XCMT 10R-303003-MG 3.00 3.00 0.30 4.34 • 0.14-0.18 0.06-0.12 XCMT 13R-31835020MG 3.18 3.50 0.20 5.18 • 0.14-0.18 0.06-0.12 XCMT 13R-353503-MG 3.50 3.50 0.30 5.25 • 0.14-0.20 0.07-0.14 XCMT 17R-404004-MG 4.00 4.00 0.40 6.00 • 0.15-0.21 0.08-0.15 For tools, see pages: DRG-MF (551) Typical Applications DRG-MF External Internal External Internal 551
