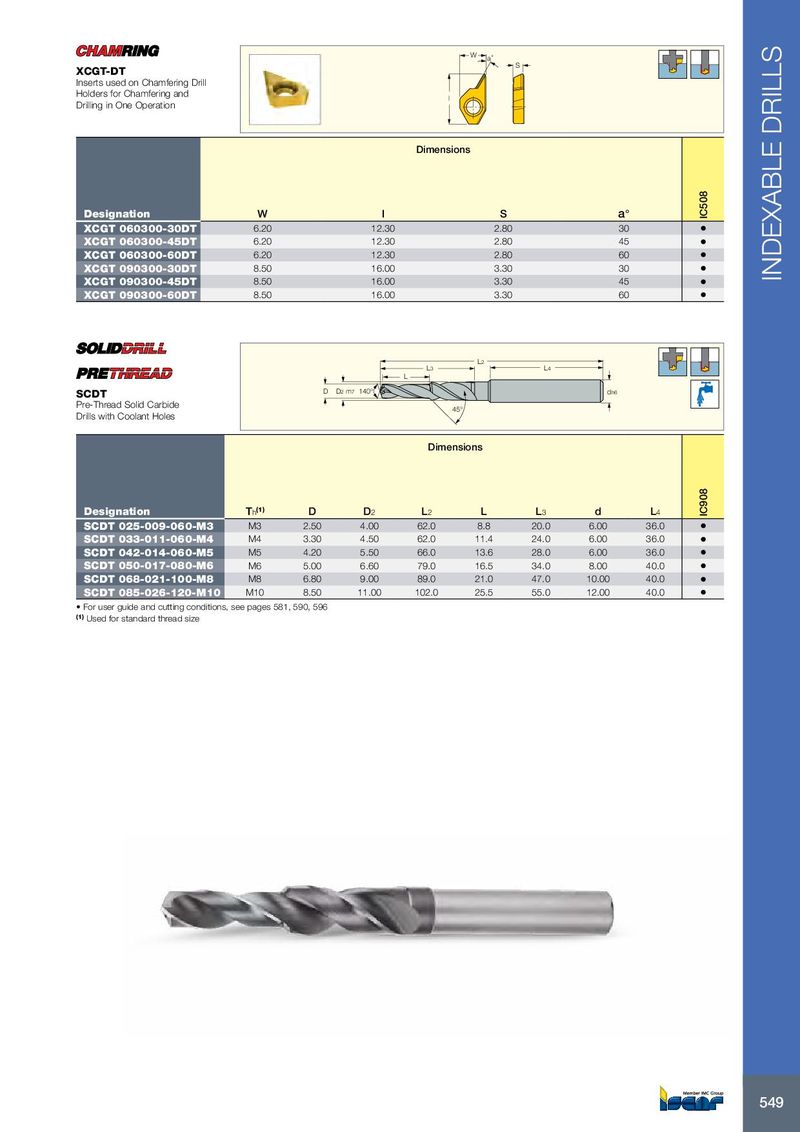

W a˚ S XCGT-DT Inserts used on Chamfering Drill Holders for Chamfering and l Drilling in One Operation Dimensions Designation W l S a° IC508 XCGT 060300-30DT 6.20 12.30 2.80 30 • XCGT 060300-45DT 6.20 12.30 2.80 45 • XCGT 060300-60DT 6.20 12.30 2.80 60 • XCGT 090300-30DT 8.50 16.00 3.30 30 • INDEXABLE DRILLS XCGT 090300-45DT 8.50 16.00 3.30 45 • XCGT 090300-60DT 8.50 16.00 3.30 60 • L2 L3 L4 L SCDT D D2 m7 140° dh6 Pre-Thread Solid Carbide 45° Drills with Coolant Holes Dimensions Designation T h (1) D D 2 L 2 L L 3 d L 4 IC908 SCDT 025-009-060-M3 M3 2.50 4.00 62.0 8.8 20.0 6.00 36.0 • SCDT 033-011-060-M4 M4 3.30 4.50 62.0 11.4 24.0 6.00 36.0 • SCDT 042-014-060-M5 M5 4.20 5.50 66.0 13.6 28.0 6.00 36.0 • SCDT 050-017-080-M6 M6 5.00 6.60 79.0 16.5 34.0 8.00 40.0 • SCDT 068-021-100-M8 M8 6.80 9.00 89.0 21.0 47.0 10.00 40.0 • SCDT 085-026-120-M10 M10 8.50 11.00 102.0 25.5 55.0 12.00 40.0 • • For user guide and cutting conditions, see pages 581, 590, 596 (1) Used for standard thread size 549
