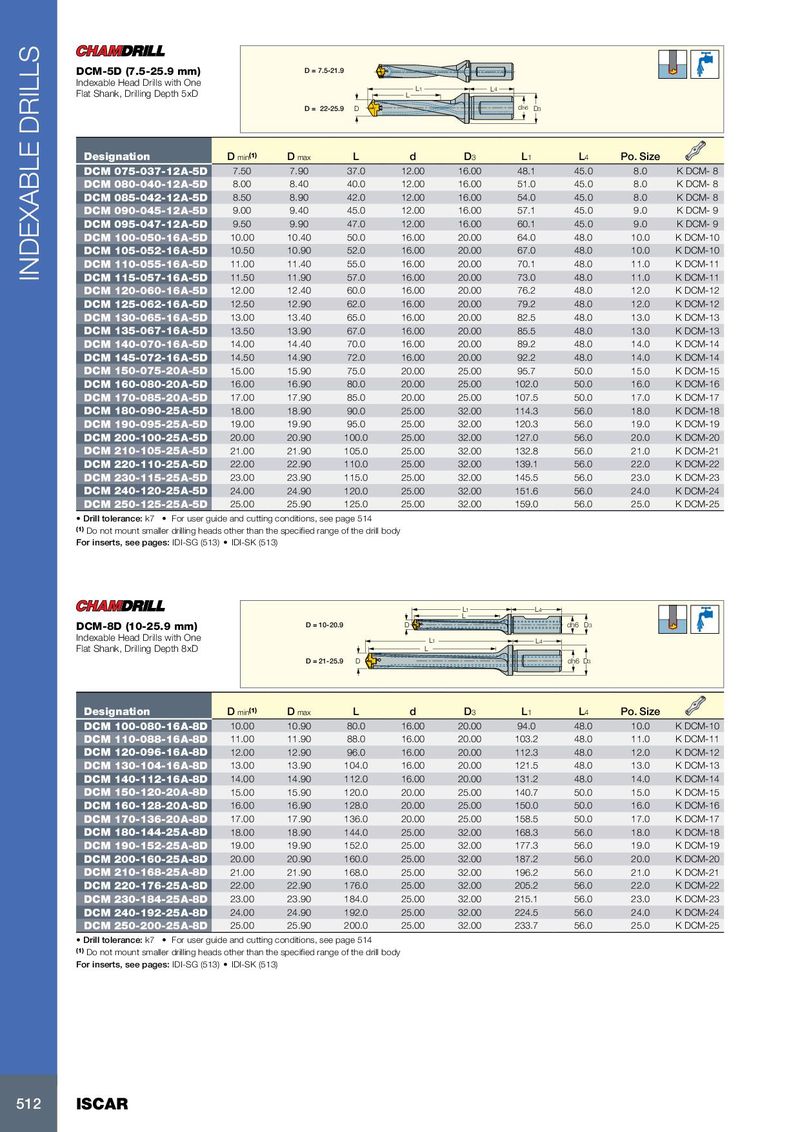

DCM-5D (7.5-25.9 mm) D = 7.5-21.9 Indexable Head Drills with One L1 L 4 Flat Shank, Drilling Depth 5xD L D = 22-25.9 D d h6 D3 Designation D min (1) D max L d D 3 L 1 L 4 Po. Size DCM 075-037-12A-5D 7.50 7.90 37.0 12.00 16.00 48.1 45.0 8.0 K DCM- 8 DCM 080-040-12A-5D 8.00 8.40 40.0 12.00 16.00 51.0 45.0 8.0 K DCM- 8 DCM 085-042-12A-5D 8.50 8.90 42.0 12.00 16.00 54.0 45.0 8.0 K DCM- 8 DCM 090-045-12A-5D 9.00 9.40 45.0 12.00 16.00 57.1 45.0 9.0 K DCM- 9 DCM 095-047-12A-5D 9.50 9.90 47.0 12.00 16.00 60.1 45.0 9.0 K DCM- 9 DCM 100-050-16A-5D 10.00 10.40 50.0 16.00 20.00 64.0 48.0 10.0 K DCM-10 DCM 105-052-16A-5D 10.50 10.90 52.0 16.00 20.00 67.0 48.0 10.0 K DCM-10 DCM 110-055-16A-5D 11.00 11.40 55.0 16.00 20.00 70.1 48.0 11.0 K DCM-11 INDEXABLE DRILLS DCM 115-057-16A-5D 11.50 11.90 57.0 16.00 20.00 73.0 48.0 11.0 K DCM-11 DCM 120-060-16A-5D 12.00 12.40 60.0 16.00 20.00 76.2 48.0 12.0 K DCM-12 DCM 125-062-16A-5D 12.50 12.90 62.0 16.00 20.00 79.2 48.0 12.0 K DCM-12 DCM 130-065-16A-5D 13.00 13.40 65.0 16.00 20.00 82.5 48.0 13.0 K DCM-13 DCM 135-067-16A-5D 13.50 13.90 67.0 16.00 20.00 85.5 48.0 13.0 K DCM-13 DCM 140-070-16A-5D 14.00 14.40 70.0 16.00 20.00 89.2 48.0 14.0 K DCM-14 DCM 145-072-16A-5D 14.50 14.90 72.0 16.00 20.00 92.2 48.0 14.0 K DCM-14 DCM 150-075-20A-5D 15.00 15.90 75.0 20.00 25.00 95.7 50.0 15.0 K DCM-15 DCM 160-080-20A-5D 16.00 16.90 80.0 20.00 25.00 102.0 50.0 16.0 K DCM-16 DCM 170-085-20A-5D 17.00 17.90 85.0 20.00 25.00 107.5 50.0 17.0 K DCM-17 DCM 180-090-25A-5D 18.00 18.90 90.0 25.00 32.00 114.3 56.0 18.0 K DCM-18 DCM 190-095-25A-5D 19.00 19.90 95.0 25.00 32.00 120.3 56.0 19.0 K DCM-19 DCM 200-100-25A-5D 20.00 20.90 100.0 25.00 32.00 127.0 56.0 20.0 K DCM-20 DCM 210-105-25A-5D 21.00 21.90 105.0 25.00 32.00 132.8 56.0 21.0 K DCM-21 DCM 220-110-25A-5D 22.00 22.90 110.0 25.00 32.00 139.1 56.0 22.0 K DCM-22 DCM 230-115-25A-5D 23.00 23.90 115.0 25.00 32.00 145.5 56.0 23.0 K DCM-23 DCM 240-120-25A-5D 24.00 24.90 120.0 25.00 32.00 151.6 56.0 24.0 K DCM-24 DCM 250-125-25A-5D 25.00 25.90 125.0 25.00 32.00 159.0 56.0 25.0 K DCM-25 • Drill tolerance: k7 • For user guide and cutting conditions, see page 514 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: IDI-SG (513) • IDI-SK (513) L 1 L 4 L DCM-8D (10-25.9 mm) D = 10-20.9 D d h6 D3 Indexable Head Drills with One L 1 L 4 Flat Shank, Drilling Depth 8xD L D = 21-25.9 D d h6 D3 Designation D min (1) D max L d D 3 L 1 L 4 Po. Size DCM 100-080-16A-8D 10.00 10.90 80.0 16.00 20.00 94.0 48.0 10.0 K DCM-10 DCM 110-088-16A-8D 11.00 11.90 88.0 16.00 20.00 103.2 48.0 11.0 K DCM-11 DCM 120-096-16A-8D 12.00 12.90 96.0 16.00 20.00 112.3 48.0 12.0 K DCM-12 DCM 130-104-16A-8D 13.00 13.90 104.0 16.00 20.00 121.5 48.0 13.0 K DCM-13 DCM 140-112-16A-8D 14.00 14.90 112.0 16.00 20.00 131.2 48.0 14.0 K DCM-14 DCM 150-120-20A-8D 15.00 15.90 120.0 20.00 25.00 140.7 50.0 15.0 K DCM-15 DCM 160-128-20A-8D 16.00 16.90 128.0 20.00 25.00 150.0 50.0 16.0 K DCM-16 DCM 170-136-20A-8D 17.00 17.90 136.0 20.00 25.00 158.5 50.0 17.0 K DCM-17 DCM 180-144-25A-8D 18.00 18.90 144.0 25.00 32.00 168.3 56.0 18.0 K DCM-18 DCM 190-152-25A-8D 19.00 19.90 152.0 25.00 32.00 177.3 56.0 19.0 K DCM-19 DCM 200-160-25A-8D 20.00 20.90 160.0 25.00 32.00 187.2 56.0 20.0 K DCM-20 DCM 210-168-25A-8D 21.00 21.90 168.0 25.00 32.00 196.2 56.0 21.0 K DCM-21 DCM 220-176-25A-8D 22.00 22.90 176.0 25.00 32.00 205.2 56.0 22.0 K DCM-22 DCM 230-184-25A-8D 23.00 23.90 184.0 25.00 32.00 215.1 56.0 23.0 K DCM-23 DCM 240-192-25A-8D 24.00 24.90 192.0 25.00 32.00 224.5 56.0 24.0 K DCM-24 DCM 250-200-25A-8D 25.00 25.90 200.0 25.00 32.00 233.7 56.0 25.0 K DCM-25 • Drill tolerance: k7 • For user guide and cutting conditions, see page 514 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: IDI-SG (513) • IDI-SK (513) 512 ISCAR
