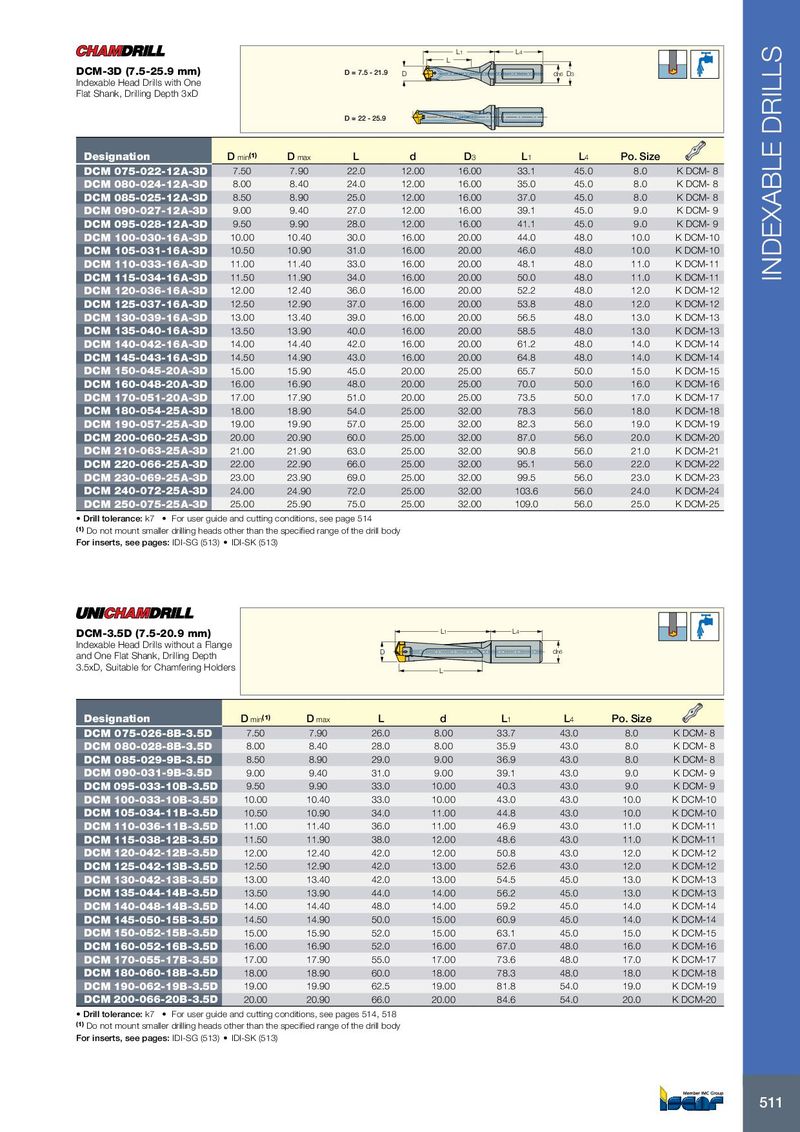

L1 L4 L DCM-3D (7.5-25.9 mm) D = 7.5 - 21.9 D dh6 D3 Indexable Head Drills with One Flat Shank, Drilling Depth 3xD D = 22 - 25.9 Designation D min (1) D max L d D 3 L 1 L 4 Po. Size DCM 075-022-12A-3D 7.50 7.90 22.0 12.00 16.00 33.1 45.0 8.0 K DCM- 8 DCM 080-024-12A-3D 8.00 8.40 24.0 12.00 16.00 35.0 45.0 8.0 K DCM- 8 DCM 085-025-12A-3D 8.50 8.90 25.0 12.00 16.00 37.0 45.0 8.0 K DCM- 8 DCM 090-027-12A-3D 9.00 9.40 27.0 12.00 16.00 39.1 45.0 9.0 K DCM- 9 DCM 095-028-12A-3D 9.50 9.90 28.0 12.00 16.00 41.1 45.0 9.0 K DCM- 9 DCM 100-030-16A-3D 10.00 10.40 30.0 16.00 20.00 44.0 48.0 10.0 K DCM-10 DCM 105-031-16A-3D 10.50 10.90 31.0 16.00 20.00 46.0 48.0 10.0 K DCM-10 DCM 110-033-16A-3D 11.00 11.40 33.0 16.00 20.00 48.1 48.0 11.0 K DCM-11 DCM 115-034-16A-3D 11.50 11.90 34.0 16.00 20.00 50.0 48.0 11.0 K DCM-11 INDEXABLE DRILLS DCM 120-036-16A-3D 12.00 12.40 36.0 16.00 20.00 52.2 48.0 12.0 K DCM-12 DCM 125-037-16A-3D 12.50 12.90 37.0 16.00 20.00 53.8 48.0 12.0 K DCM-12 DCM 130-039-16A-3D 13.00 13.40 39.0 16.00 20.00 56.5 48.0 13.0 K DCM-13 DCM 135-040-16A-3D 13.50 13.90 40.0 16.00 20.00 58.5 48.0 13.0 K DCM-13 DCM 140-042-16A-3D 14.00 14.40 42.0 16.00 20.00 61.2 48.0 14.0 K DCM-14 DCM 145-043-16A-3D 14.50 14.90 43.0 16.00 20.00 64.8 48.0 14.0 K DCM-14 DCM 150-045-20A-3D 15.00 15.90 45.0 20.00 25.00 65.7 50.0 15.0 K DCM-15 DCM 160-048-20A-3D 16.00 16.90 48.0 20.00 25.00 70.0 50.0 16.0 K DCM-16 DCM 170-051-20A-3D 17.00 17.90 51.0 20.00 25.00 73.5 50.0 17.0 K DCM-17 DCM 180-054-25A-3D 18.00 18.90 54.0 25.00 32.00 78.3 56.0 18.0 K DCM-18 DCM 190-057-25A-3D 19.00 19.90 57.0 25.00 32.00 82.3 56.0 19.0 K DCM-19 DCM 200-060-25A-3D 20.00 20.90 60.0 25.00 32.00 87.0 56.0 20.0 K DCM-20 DCM 210-063-25A-3D 21.00 21.90 63.0 25.00 32.00 90.8 56.0 21.0 K DCM-21 DCM 220-066-25A-3D 22.00 22.90 66.0 25.00 32.00 95.1 56.0 22.0 K DCM-22 DCM 230-069-25A-3D 23.00 23.90 69.0 25.00 32.00 99.5 56.0 23.0 K DCM-23 DCM 240-072-25A-3D 24.00 24.90 72.0 25.00 32.00 103.6 56.0 24.0 K DCM-24 DCM 250-075-25A-3D 25.00 25.90 75.0 25.00 32.00 109.0 56.0 25.0 K DCM-25 • Drill tolerance: k7 • For user guide and cutting conditions, see page 514 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: IDI-SG (513) • IDI-SK (513) DCM-3.5D (7.5-20.9 mm) L 1 L 4 Indexable Head Drills without a Flange D d h6 and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders L Designation D min (1) D max L d L 1 L 4 Po. Size DCM 075-026-8B-3.5D 7.50 7.90 26.0 8.00 33.7 43.0 8.0 K DCM- 8 DCM 080-028-8B-3.5D 8.00 8.40 28.0 8.00 35.9 43.0 8.0 K DCM- 8 DCM 085-029-9B-3.5D 8.50 8.90 29.0 9.00 36.9 43.0 8.0 K DCM- 8 DCM 090-031-9B-3.5D 9.00 9.40 31.0 9.00 39.1 43.0 9.0 K DCM- 9 DCM 095-033-10B-3.5D 9.50 9.90 33.0 10.00 40.3 43.0 9.0 K DCM- 9 DCM 100-033-10B-3.5D 10.00 10.40 33.0 10.00 43.0 43.0 10.0 K DCM-10 DCM 105-034-11B-3.5D 10.50 10.90 34.0 11.00 44.8 43.0 10.0 K DCM-10 DCM 110-036-11B-3.5D 11.00 11.40 36.0 11.00 46.9 43.0 11.0 K DCM-11 DCM 115-038-12B-3.5D 11.50 11.90 38.0 12.00 48.6 43.0 11.0 K DCM-11 DCM 120-042-12B-3.5D 12.00 12.40 42.0 12.00 50.8 43.0 12.0 K DCM-12 DCM 125-042-13B-3.5D 12.50 12.90 42.0 13.00 52.6 43.0 12.0 K DCM-12 DCM 130-042-13B-3.5D 13.00 13.40 42.0 13.00 54.5 45.0 13.0 K DCM-13 DCM 135-044-14B-3.5D 13.50 13.90 44.0 14.00 56.2 45.0 13.0 K DCM-13 DCM 140-048-14B-3.5D 14.00 14.40 48.0 14.00 59.2 45.0 14.0 K DCM-14 DCM 145-050-15B-3.5D 14.50 14.90 50.0 15.00 60.9 45.0 14.0 K DCM-14 DCM 150-052-15B-3.5D 15.00 15.90 52.0 15.00 63.1 45.0 15.0 K DCM-15 DCM 160-052-16B-3.5D 16.00 16.90 52.0 16.00 67.0 48.0 16.0 K DCM-16 DCM 170-055-17B-3.5D 17.00 17.90 55.0 17.00 73.6 48.0 17.0 K DCM-17 DCM 180-060-18B-3.5D 18.00 18.90 60.0 18.00 78.3 48.0 18.0 K DCM-18 DCM 190-062-19B-3.5D 19.00 19.90 62.5 19.00 81.8 54.0 19.0 K DCM-19 DCM 200-066-20B-3.5D 20.00 20.90 66.0 20.00 84.6 54.0 20.0 K DCM-20 • Drill tolerance: k7 • For user guide and cutting conditions, see pages 514, 518 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: IDI-SG (513) • IDI-SK (513) 511
