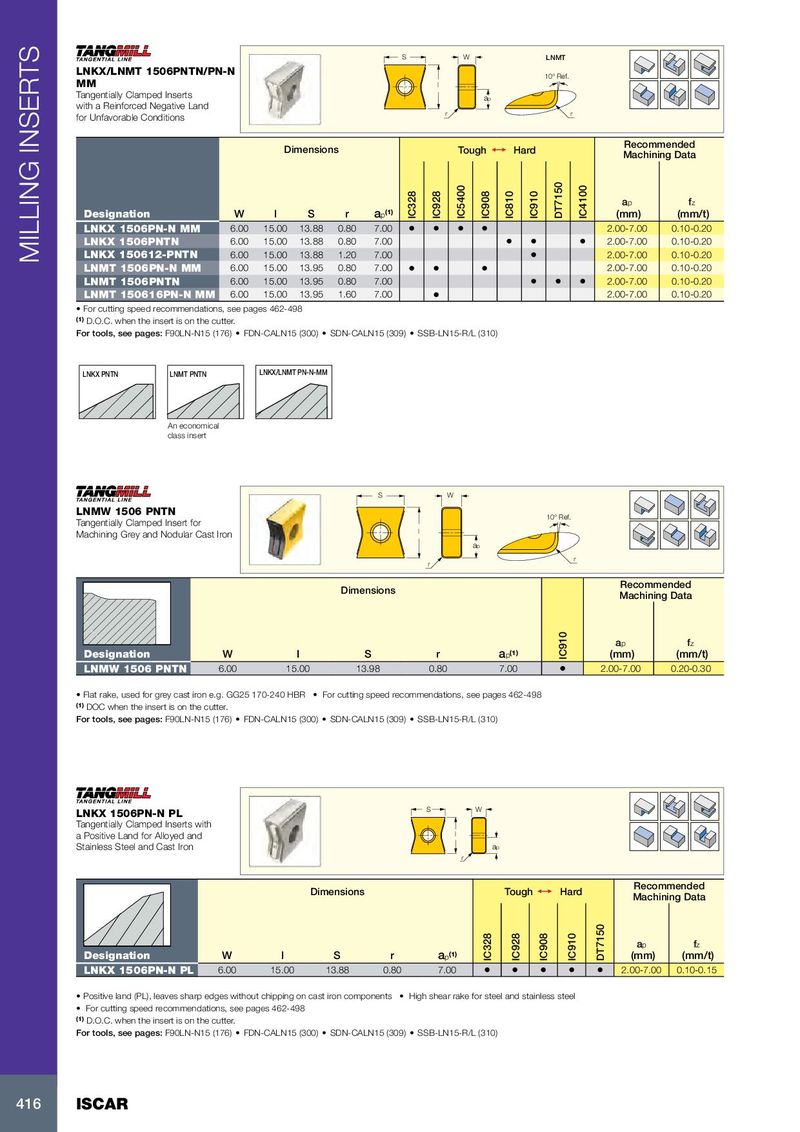

S W LNMT LNKX/LNMT 1506PNTN/PN-N 10° Ref. MM l Tangentially Clamped Inserts ap with a Reinforced Negative Land r for Unfavorable Conditions r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p (1) IC328 IC928 IC5400 IC908 IC810 IC910 DT7150 IC4100 (mm) (mm/t) LNKX 1506PN-N MM 6.00 15.00 13.88 0.80 7.00 • • • • 2.00-7.00 0.10-0.20 LNKX 1506PNTN 6.00 15.00 13.88 0.80 7.00 • • • 2.00-7.00 0.10-0.20 LNKX 150612-PNTN 6.00 15.00 13.88 1.20 7.00 MILLING INSERTS • 2.00-7.00 0.10-0.20 LNMT 1506PN-N MM 6.00 15.00 13.95 0.80 7.00 • • • 2.00-7.00 0.10-0.20 LNMT 1506PNTN 6.00 15.00 13.95 0.80 7.00 • • • 2.00-7.00 0.10-0.20 LNMT 150616PN-N MM 6.00 15.00 13.95 1.60 7.00 • 2.00-7.00 0.10-0.20 • For cutting speed recommendations, see pages 462-498 (1) D.O.C. when the insert is on the cutter. For tools, see pages: F90LN-N15 (176) • FDN-CALN15 (300) • SDN-CALN15 (309) • SSB-LN15-R/L (310) LNKX PNTN LNMT PNTN LNKX/LNMT PN-N-MM An economical class insert S W LNMW 1506 PNTN 10° Ref. Tangentially Clamped Insert for Machining Grey and Nodular Cast Iron l ap r r Recommended Dimensions Machining Data a p f z Designation W l S r a p (1) IC910 (mm) (mm/t) LNMW 1506 PNTN 6.00 15.00 13.98 0.80 7.00 • 2.00-7.00 0.20-0.30 • Flat rake, used for grey cast iron e.g. GG25 170-240 HBR • For cutting speed recommendations, see pages 462-498 (1) DOC when the insert is on the cutter. For tools, see pages: F90LN-N15 (176) • FDN-CALN15 (300) • SDN-CALN15 (309) • SSB-LN15-R/L (310) S W LNKX 1506PN-N PL Tangentially Clamped Inserts with a Positive Land for Alloyed and l Stainless Steel and Cast Iron ap r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p (1) IC328 IC928 IC908 IC910 DT7150 (mm) (mm/t) LNKX 1506PN-N PL 6.00 15.00 13.88 0.80 7.00 • • • • • 2.00-7.00 0.10-0.15 • Positive land (PL), leaves sharp edges without chipping on cast iron components • High shear rake for steel and stainless steel • For cutting speed recommendations, see pages 462-498 (1) D.O.C. when the insert is on the cutter. For tools, see pages: F90LN-N15 (176) • FDN-CALN15 (300) • SDN-CALN15 (309) • SSB-LN15-R/L (310) 416 ISCAR
